Harley 1965 1966 Electra-Glide Wiring Harness Kit 70321-65 USA
- Product Code: 355012168149
- Availability: In Stock
-
$139.95

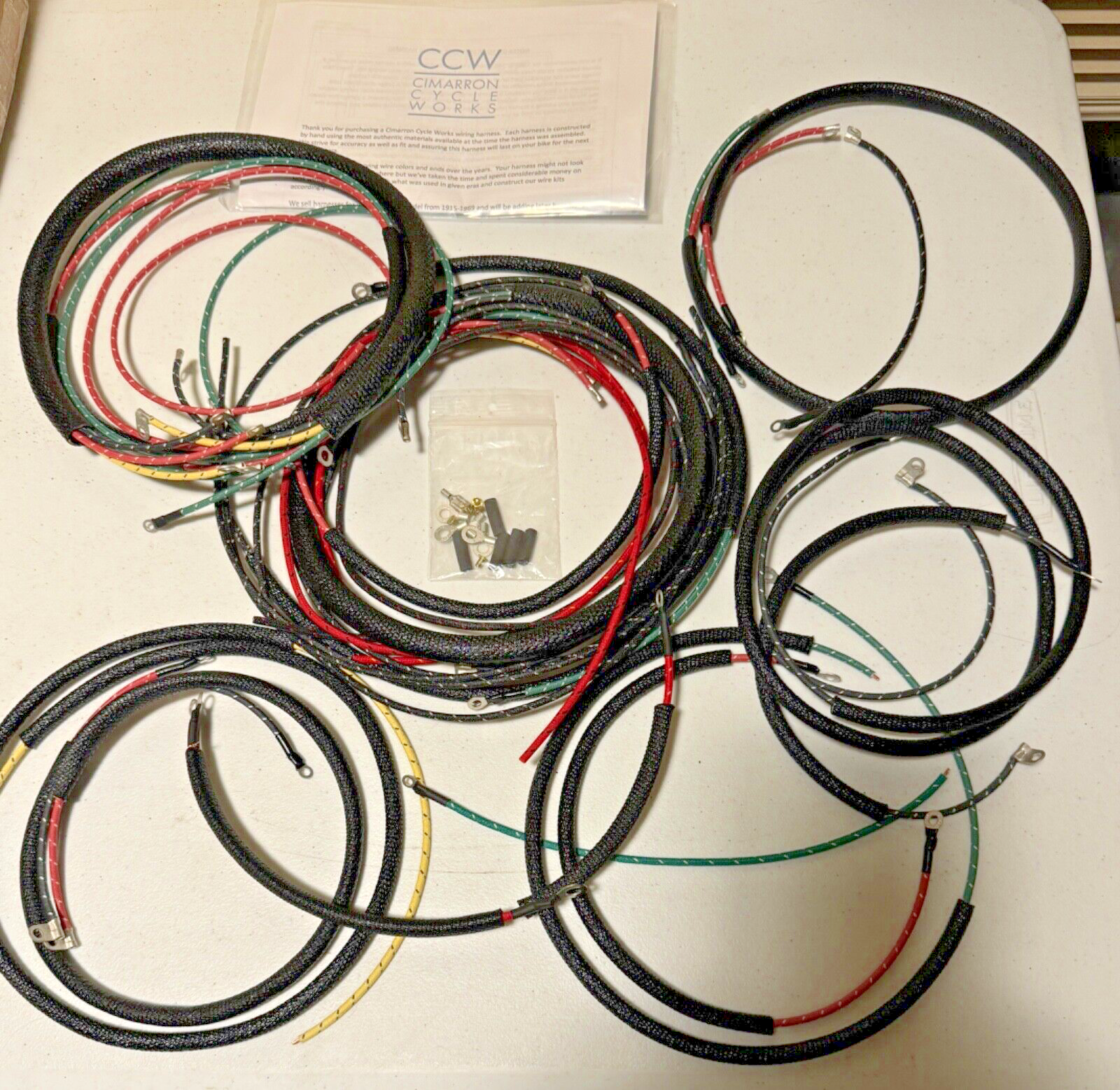

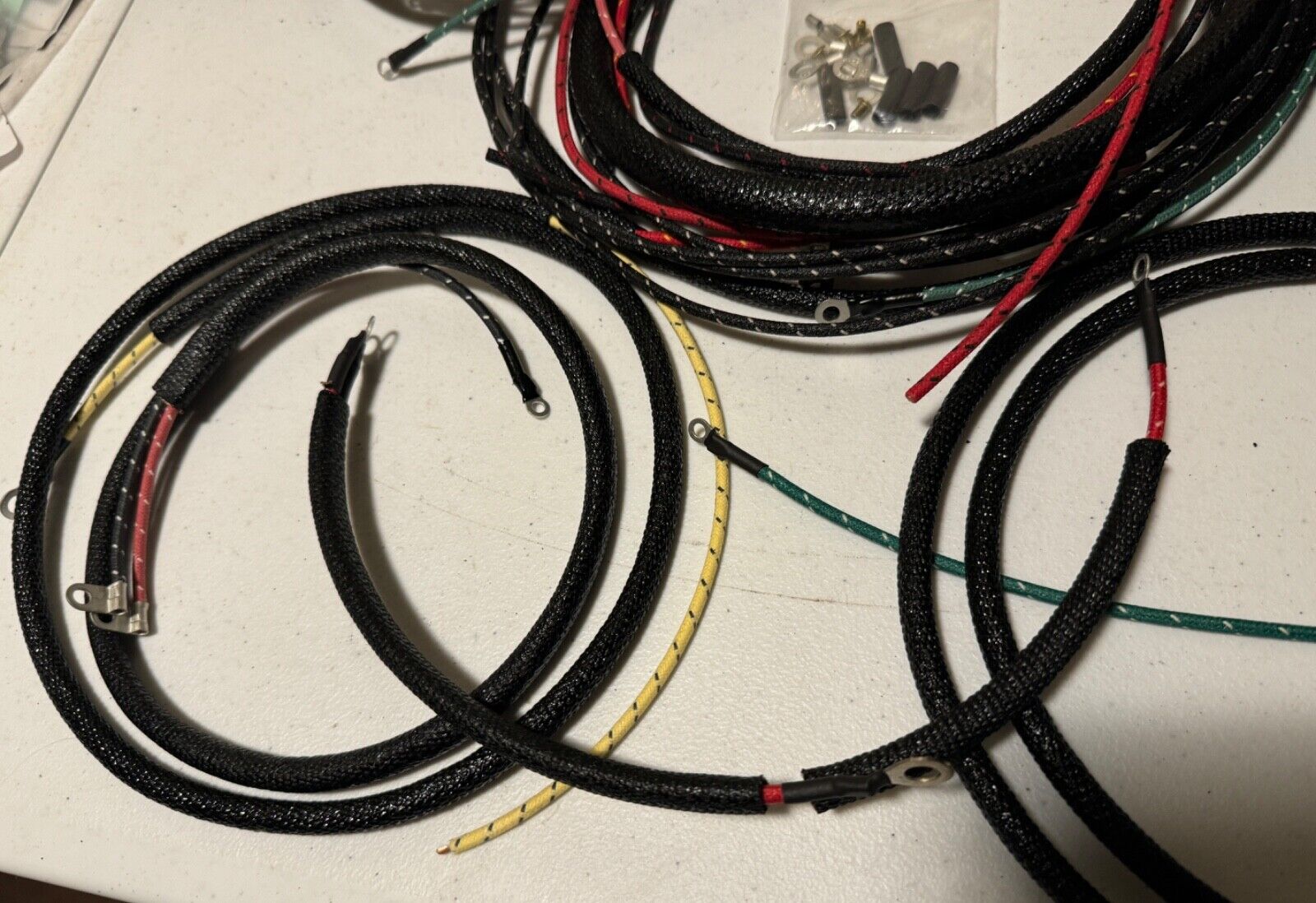

You are purchasing one new USA made reproduction wiring harness for 1965 and 1966 Panhead & Shovelhead Electra-Glide models. The wiring in the kit includes starter relay wires in addition to all other systems served by the electric system. Starter relays were not offered initially, a retrofit kit was introduced at some point in 1966 or first of the 1967 model year.
If you need a kit with battery circuit breaker wiring, order our '67-'68 kit, if you need the front brake circuit plus the starter relay and circuit breaker, order our 1969 kit.

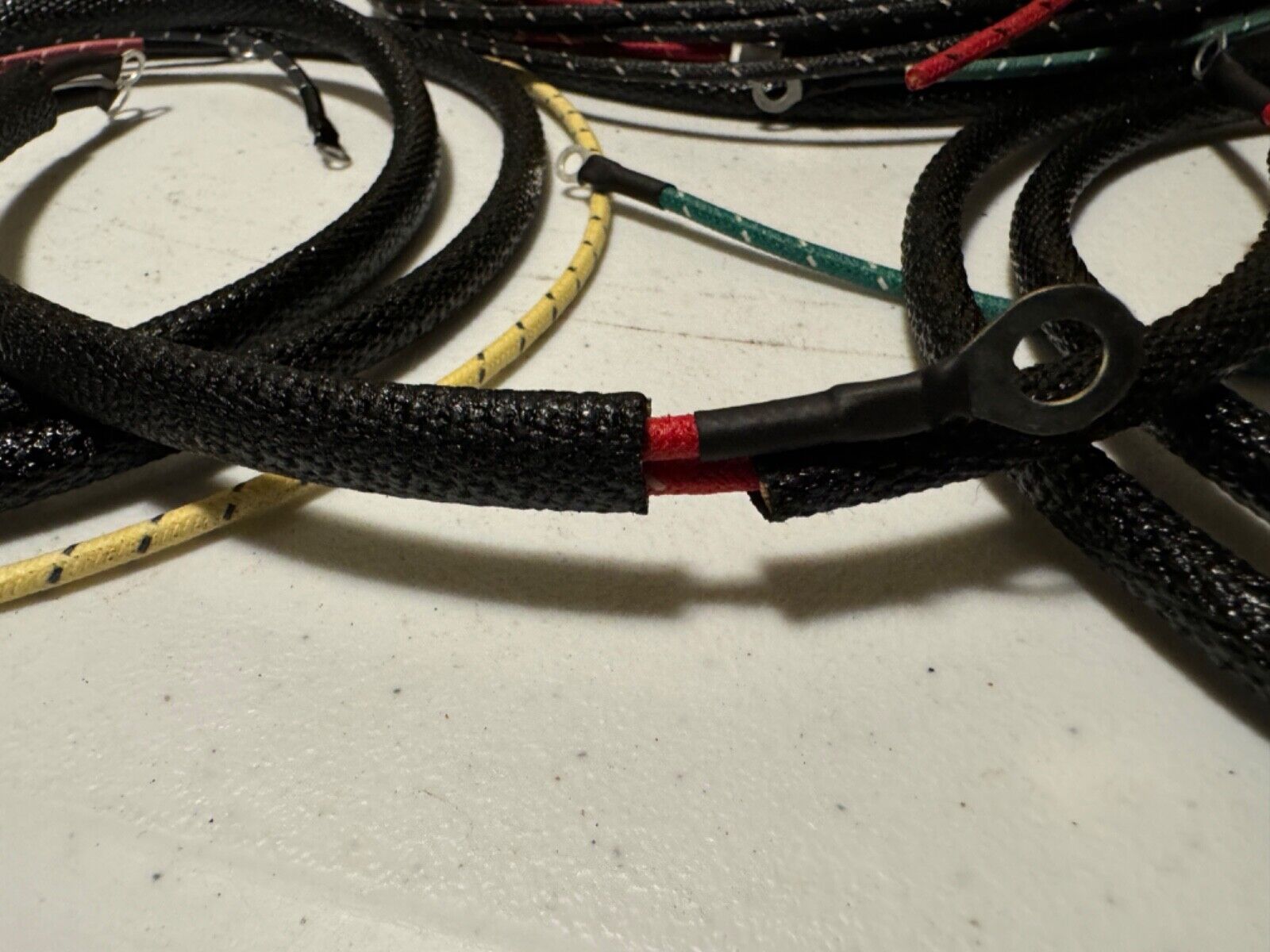

-Wires are properly crimped and terminal insulation is used where Harley did and terminals are bare where Harley left them bare.
-Handlebar wires include: dimmer, horn, and starter. Terminals are supplied to finish your wires once fished through the bars.
-Requires a crimping tool and solder gun to finish lamp contacts in the dash and tail lamp.
-Does not include the headlamp block wiring, we do sell the correct Cole-Hersee type original headlamp pigtails in our store.
If you are not comfortable soldering some lamp contacts, let us know, we can provide the kit where no soldering is required for a slight additional charge.
We sell kits for 1967-1968 Electra-Glides with starter relay and battery circuit breaker wiring and a 1969 kit with starter relay, circuit breaker wiring, and the front brake switch and wiring which was introduced in 1969.
If you need battery cables or turn signal wiring, we have those available, just email and ask. Each kit is also sold complete with the turn signal and battery cables.
These are made one at a time by hand right here at our shop in Cimarron, New Mexico, USA using all USA made materials!
Also keep a look out for complete harness master kits we will soon offer with every wire loom clip you need plus completely wired switches and the headlamp block. They will be a good deal more expensive but will save you quite a bit of time on your complete re-wire job!
We also offer just about any piece of CP-1038 hardware, screws, clips, clamps, voltage regulators, lighting, accessories, as well as motor and driveline parts, seats, saddlebags, etc. as well as wiring kits for just about every USA made Harley from 1915 through 1969 including lightweight two strokes, servicar, singles, 45 models, JD, VL, 1926-1934 singles, etc.
Used on the following:
- 1965-1966 FL, FLH 74” OHV Panhead & Shovelhead Electra-Glide
Do note that we do offer one of the largest selections of reproduction hardware and electrical parts for your 1915-1984 Harley-Davidson motorcycle. Our offerings keep growing on a weekly basis, please email if you need something you don't see in our eBay store.
