Harley 30476-58 Generator Brush Cover Strap 1958-69 Panhead Shovel XL USA

  • Product Code: 295477880936
  • Availability: In Stock
  • $28.95

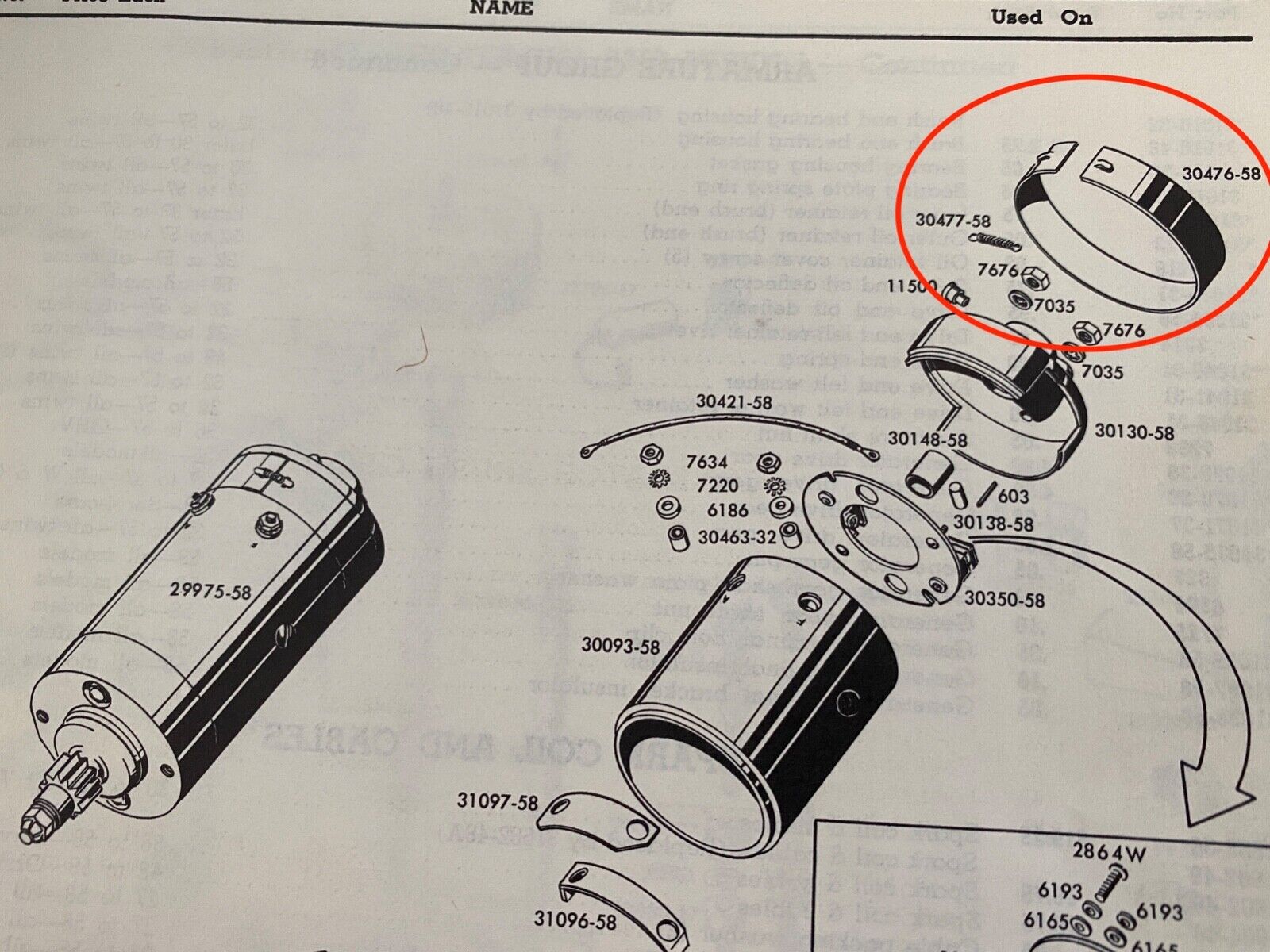

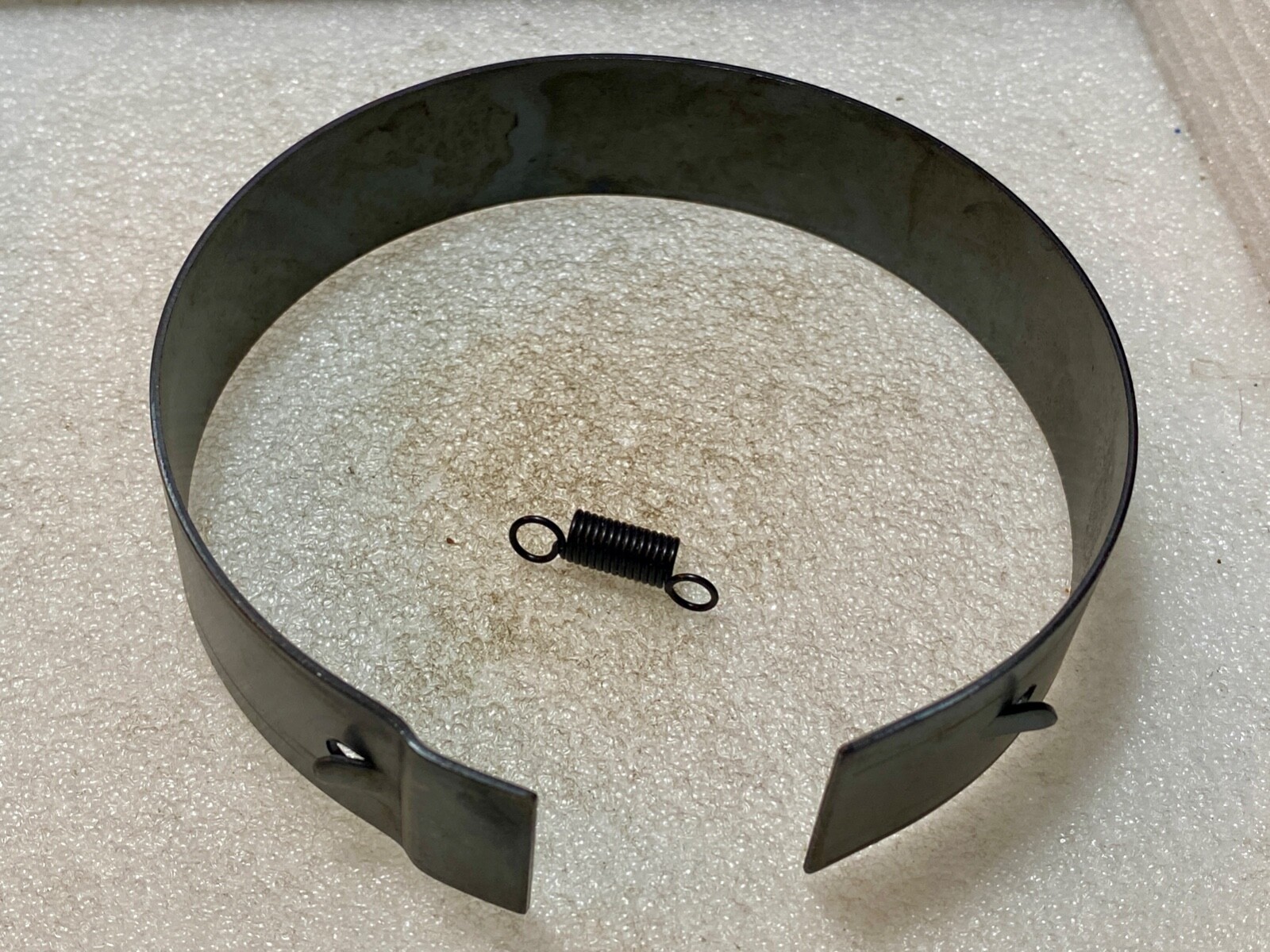

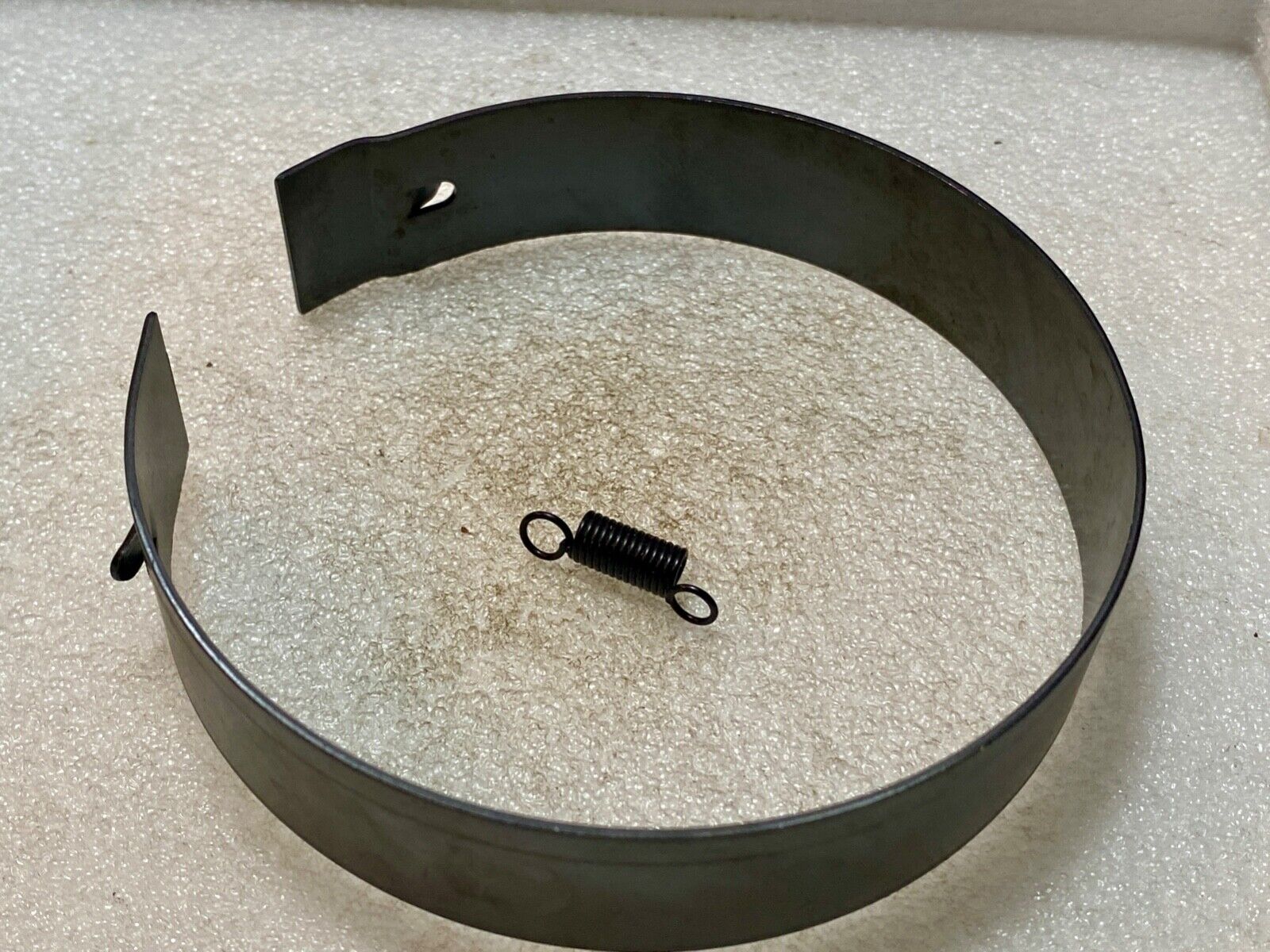

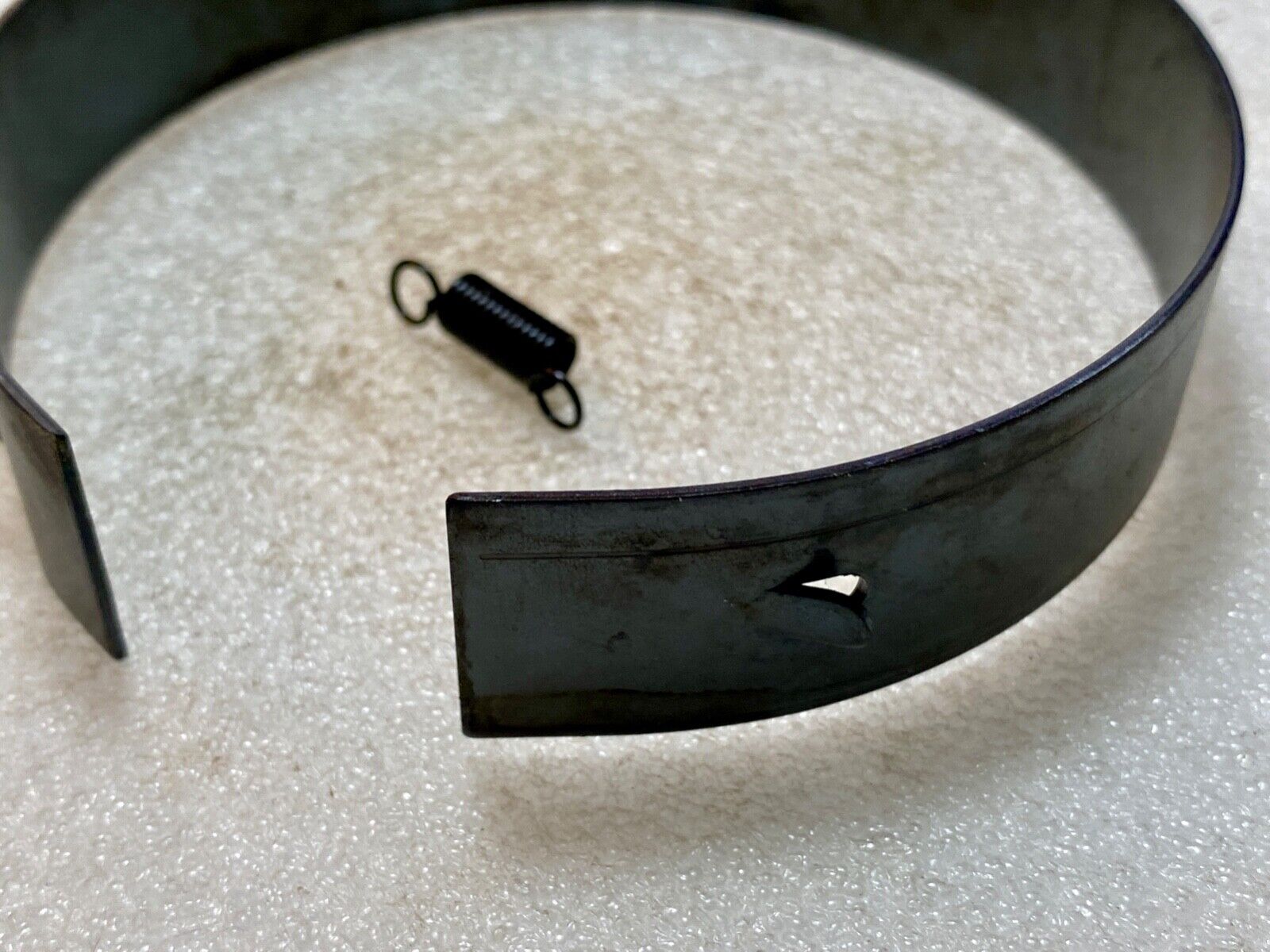

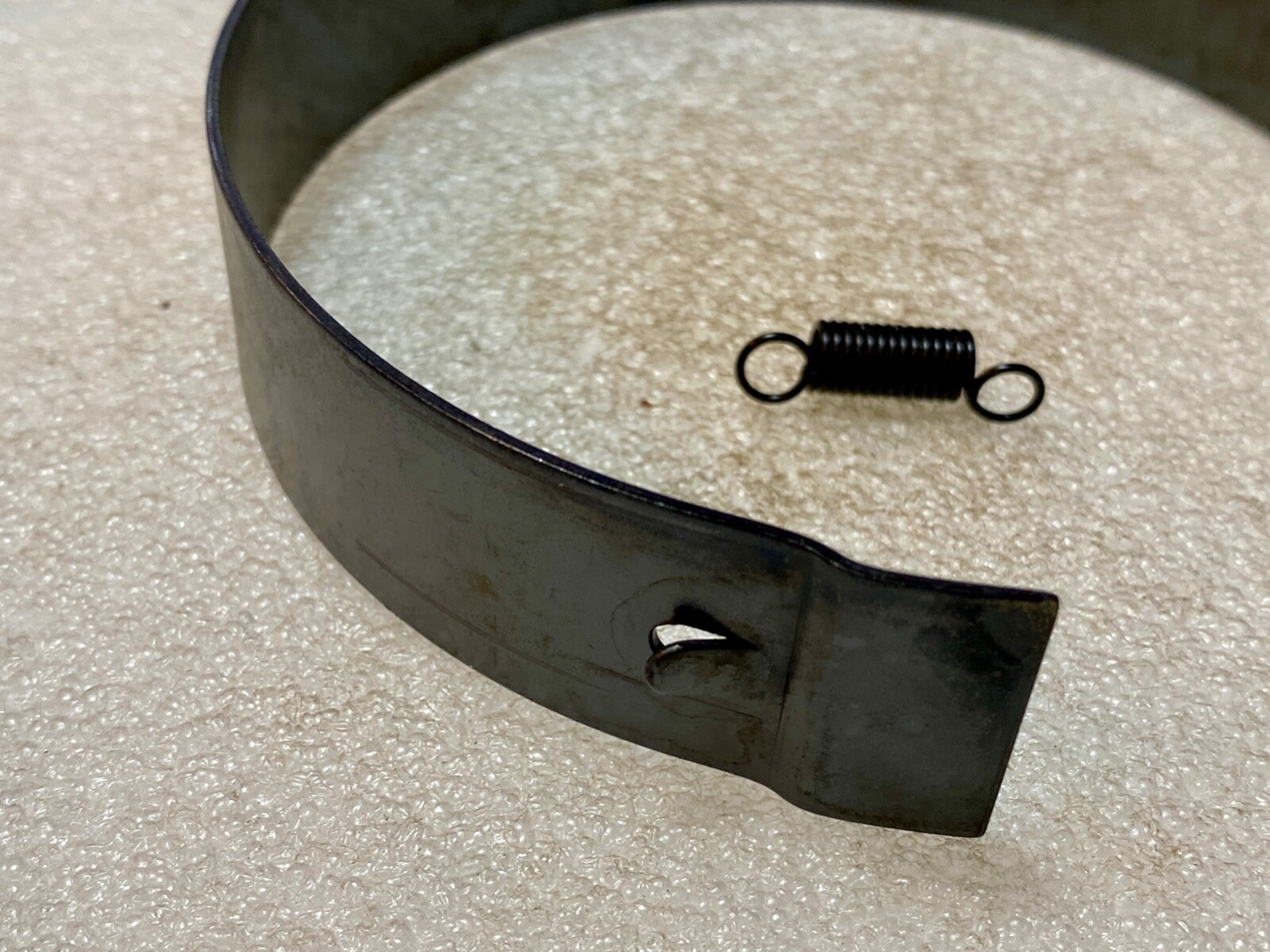

You are purchasing one new USA-made generator brush cover strap for 6 and 12 volt two brush generators as used from 1958-1969 on all Harley-Davidson twin models including Panhead, Shovelhead, Servicar, and Sportster.  These parts were all used on OEM Model 58, Model 61, Model 65, and Model 65A generators as manufactured by Harley-Davidson and Cycle Electric.  I do believe this will also fit aftermarket H-D two brush generators.  Manufactured correctly using the correct spring steel.  Also includes the small closure spring.  You will need needle nose pliers to install the spring.

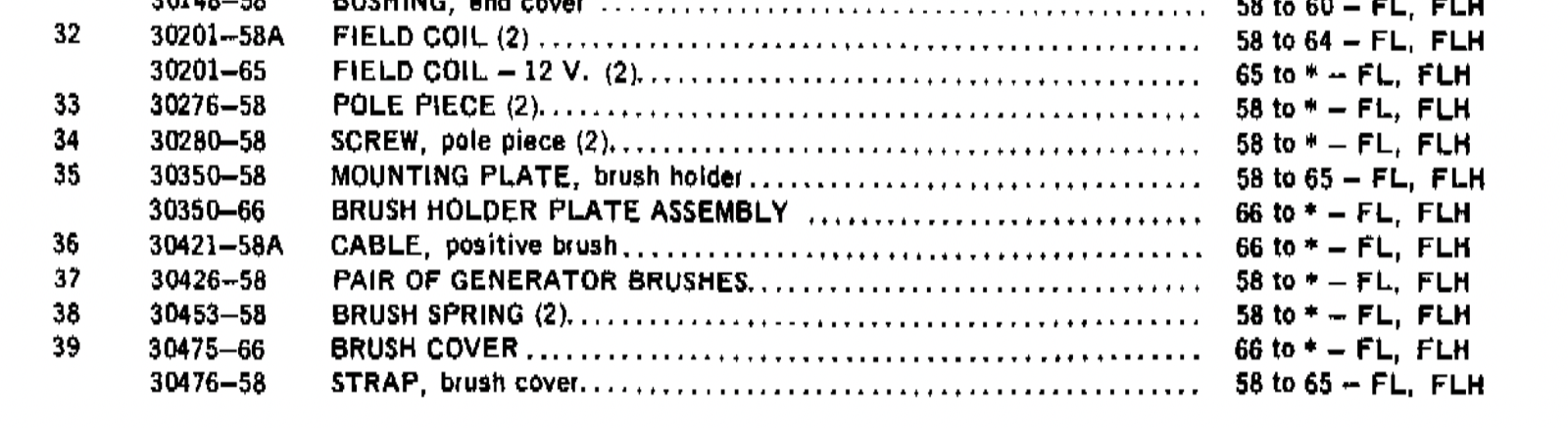

Do note that this was listed for use in factory catalogs through 1965.  In 1966, H-D came out with a strap that bolted together and it was made from thicker material. I can see no reason this cannot be used for all years of the 12 volt model 65A generator, they were the same diameter and had the same openings at the brush end as earlier ones.

We also sell other three and two brush generator parts in our store including a complete rebuild kit for these generators.

Please let us know if you have any questions. Be sure to check out our detailed hardware, clamps, oil lines, and gas lines in our eBay store.  We have hundreds of OEM and reproduction items we’ve not had time to list for your 1915 to 1984 Harley-Davidson motorcycle.

Fits the following:
  • Model 58 6 volt generator 1958-1960 Panhead, Sportster, Servicar
  • Model 61 6 volt generator 1961-1964 Panhead & Sportster; 1961-1963 Servicar
  • Model 65 & 65A 12 volt generator 1965-1969 Panhead & Shovelhead, 1965-1984 Sportster
Covers the following models:
  • 1958-1965 FL, FLH 74" OHV Panhead Duo-Glide & Electra-Glide
  • 1966-1969 FL, FLH 74" OHV Shovelhead Electra-Glide
  • 1958-1963 G, Servicar 45"
  • 1958-1984 XL, XLH, XLCH, XLCR, XLR 900, 1000, 1100 roadster, cafe racer Sportster
