Harley CP-1035 W WL WLA WLC Rear Fender Mounting Hardware Kit 1942-48 Mount

  • Product Code: 292330006722
  • Availability: In Stock
  • $58.95


You are buying a USA Made 45" solo twin rear fender mounting kit for Harley-Davidson 45" solo models which is detail-correct for WWII era and slightly later 45" solo twins. Hardware detail should be correct for roughly 1942 to 1948 models, though I’m aware all of this hardware can be used on earlier and later model 45’s.  Includes all pieces shown. Please consult your own parts or service manual for proper reference.

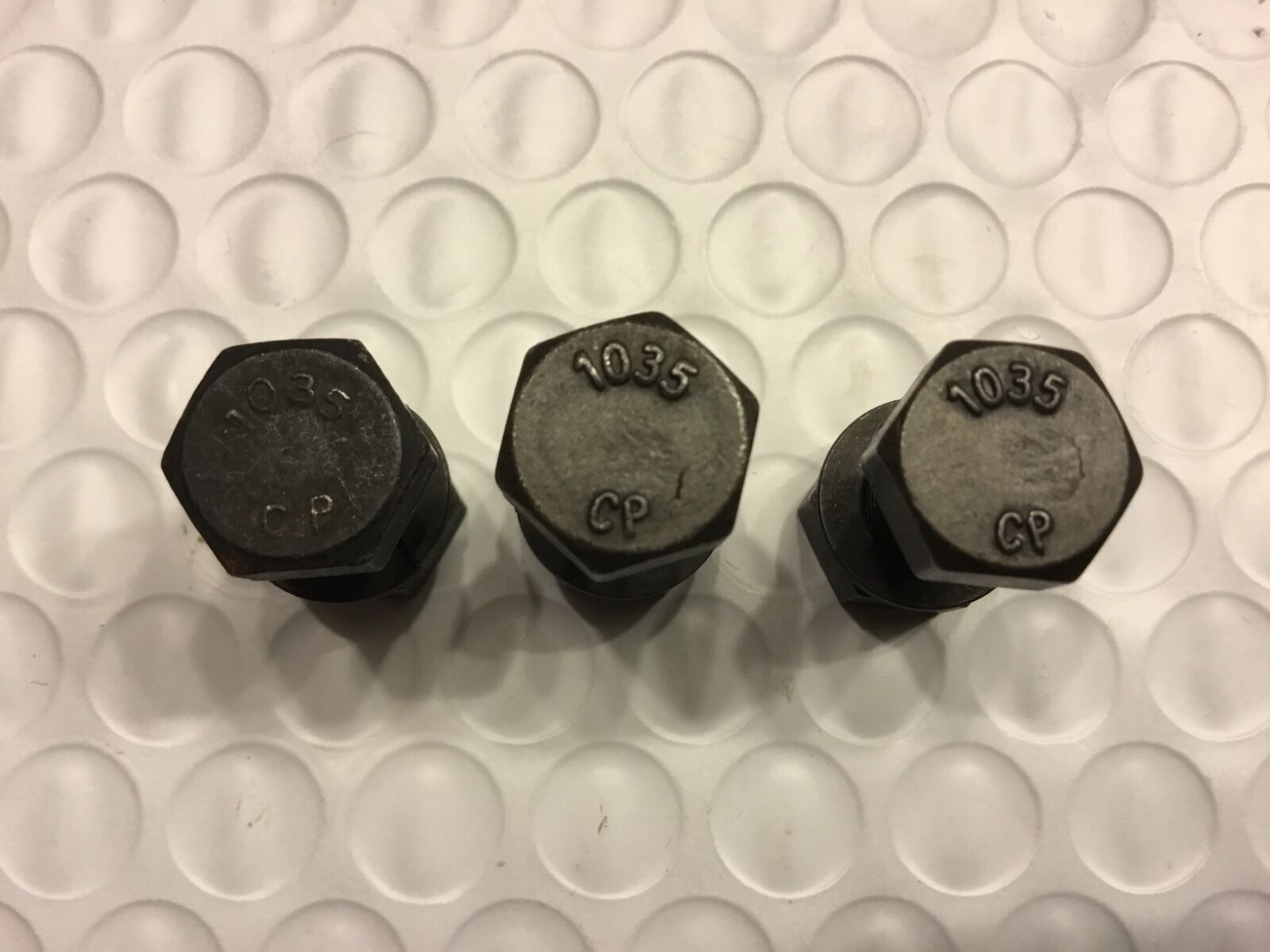

This is detail correct for WLA, WLC, and WL models as the 5/16" bolts are CP-1035.  The 061 1/2" long CP-1035 bolt is known WW-II surplus, the 064 3/4" long CP-1035 bolts are later production.

Chandler Products CP-1035 bolts first appear in 1942 or early 1943 and could be found on Harleys to 1949.  CP-1038 seems to have first appeared in 1947 or 1948 so a mix of bolt heads on common hardware would be expected in the late 1940's.

All USA made parts.

Detail-correct for the following:
  • 1942-1948 W, WL, WLD, WLDR, WR, WLA, WLC

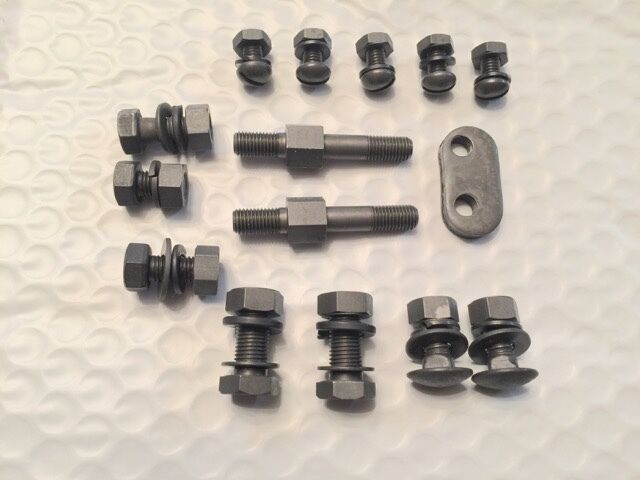

You get the following in this kit:

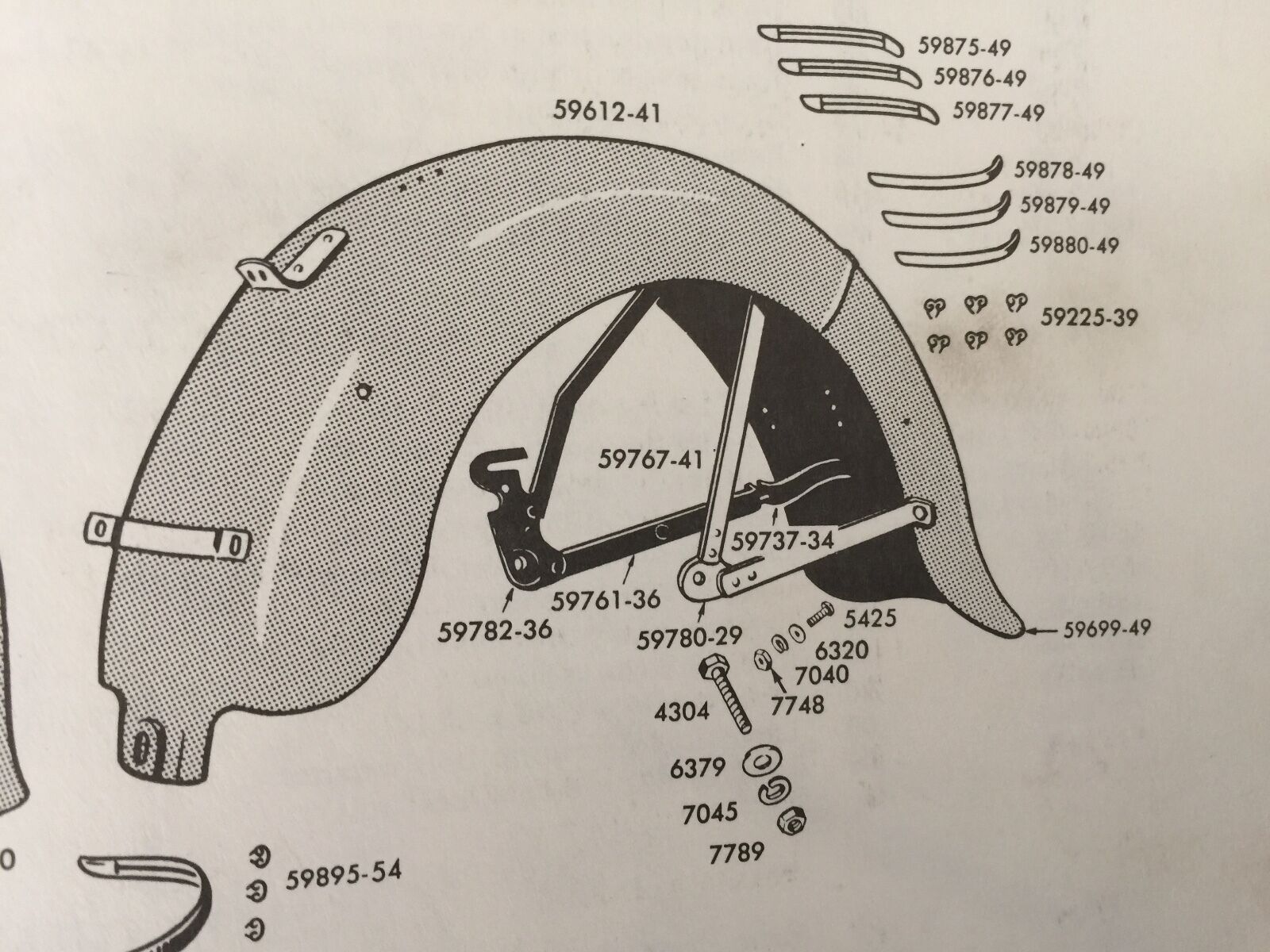

  • 2 ea. 4304 (early 2823-26), Rear fender brace bolt, 3/8”-24 N.F. x 29/32"
  • 2 ea. 7789, (early 0129) Rear fender brace nut, 3/8”-24 N.F. x 1/4” x 9/16"
  • 2 ea. 6379, (early 0226) Rear fender brace flat washer, 3/8” x 5/8” x 3/64"
  • 2 ea. 7045, (early 0261)Rear fender brace split lock washer, 3/8” x 5/8” x 1/16"

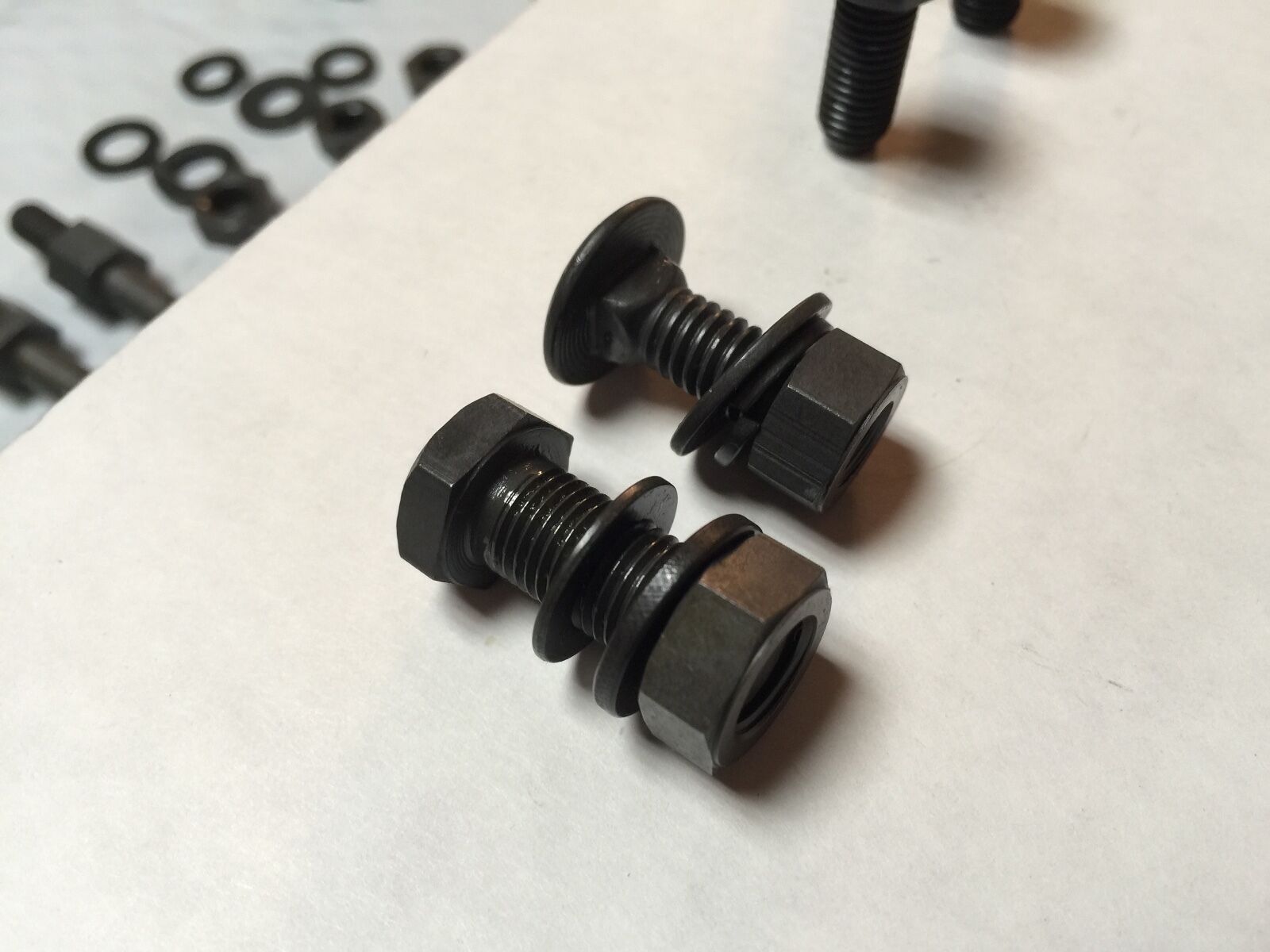

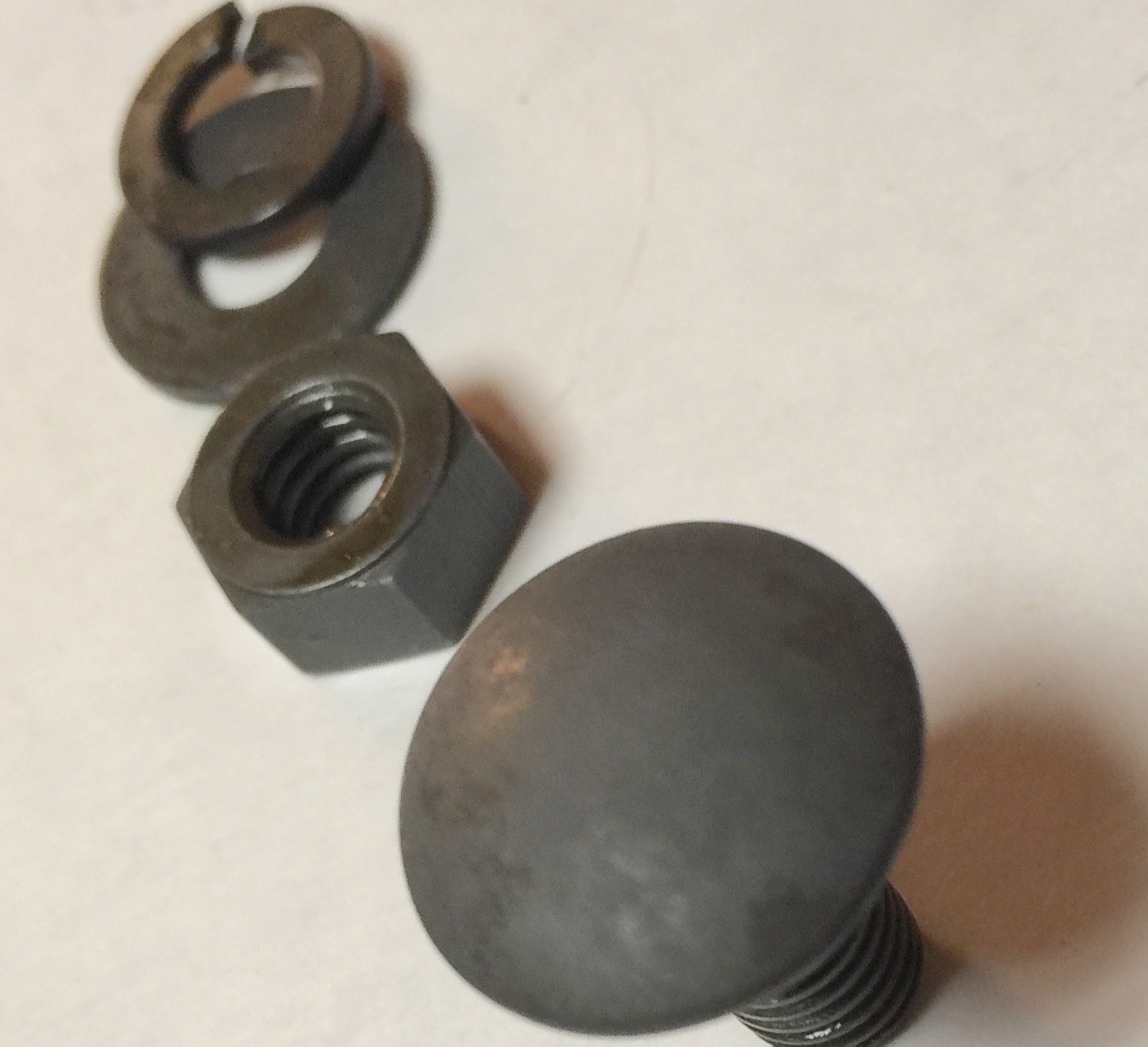

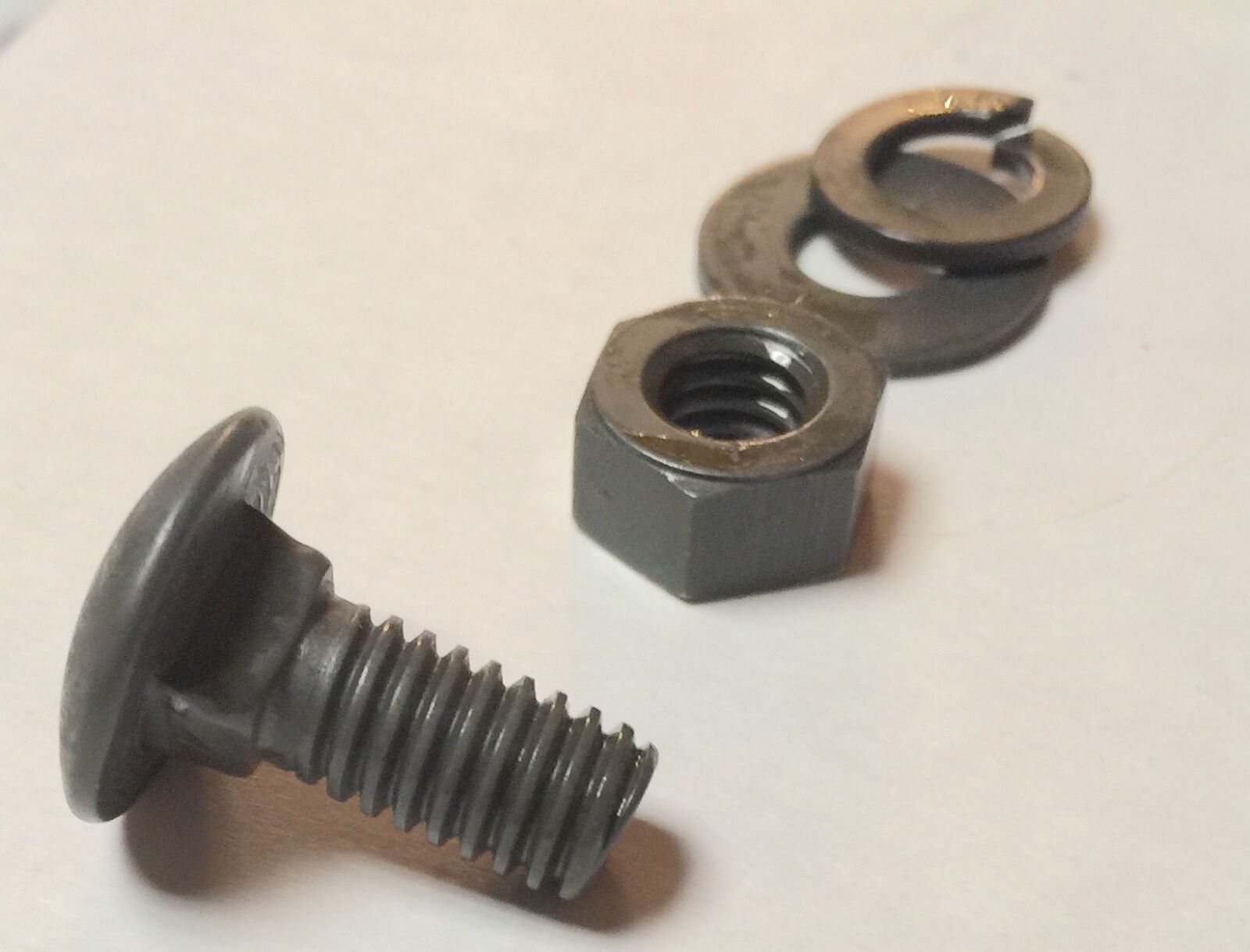

  • 2 ea. 5425, (early 3743-23) Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
  • 2 ea. 7748, (early 0111) Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
  • 4 ea. 6320, (early 0214) Brace bracket flat washer 5/16” x 11/16” x 1/16”

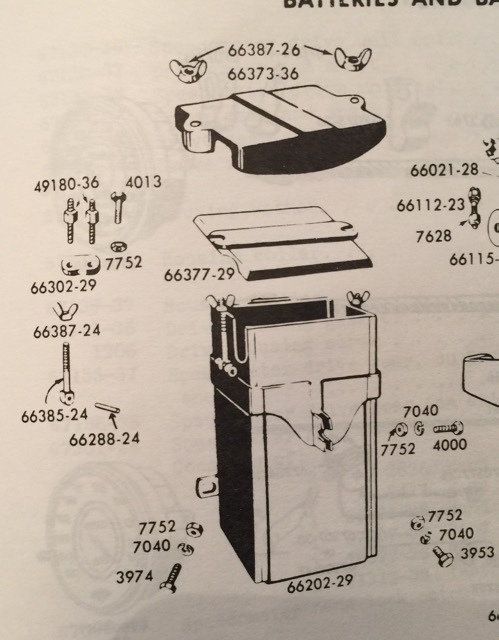

  • 2 ea. 3974 (early 064), Rear lower bolt, 5/16-24 N.F. x 3/4” x 1/2" Stamped CP-1035
  • 1 ea. 3953 (early 061), Rear lower bolt, 5/16-24 N.F. x 1/2” x 1/2" Stamped CP-1035

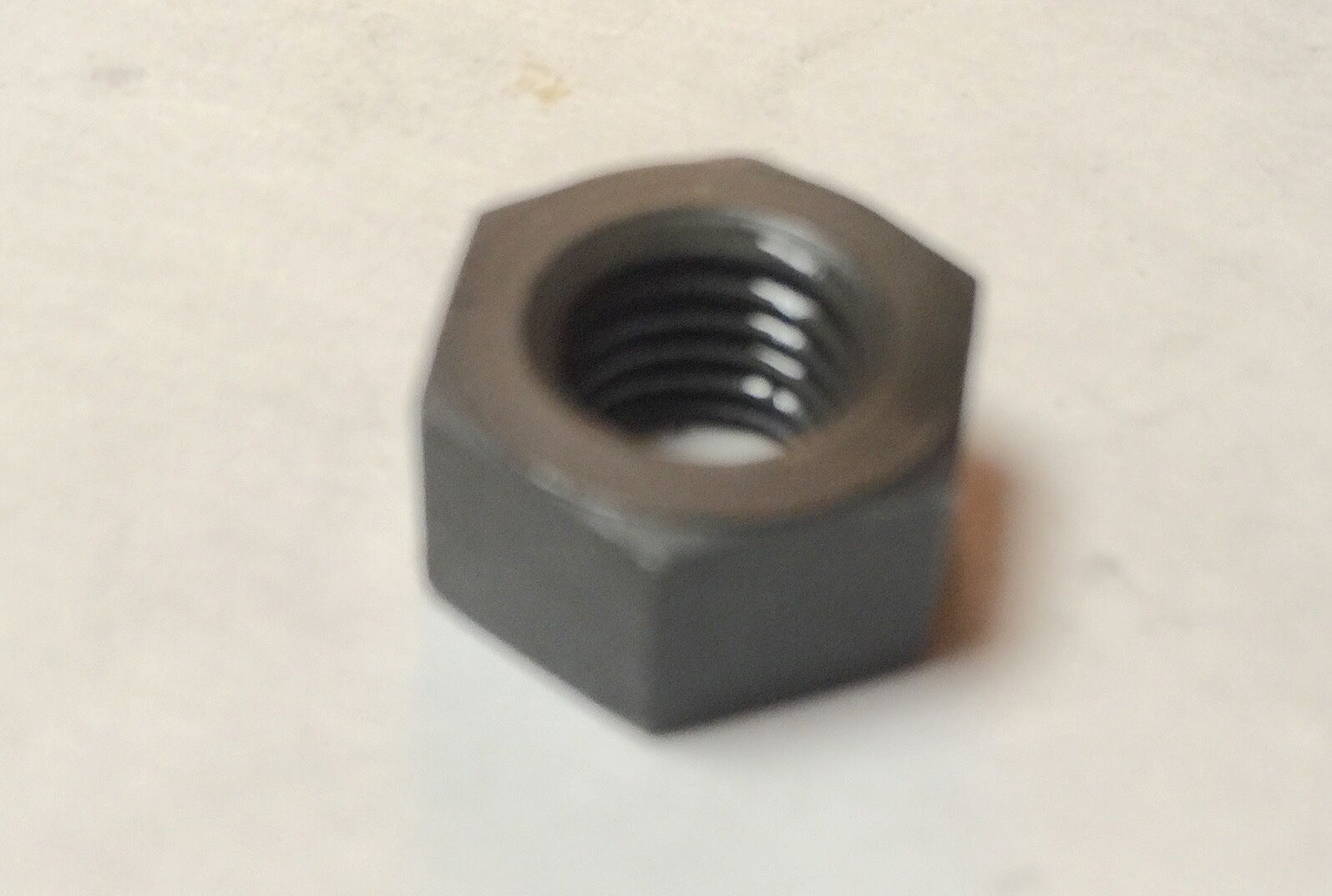

  • 3 ea. 7752, (early 0117) Nuts, 5/16”-24 N.F. x 17/64” x 1/2”
  • 3 ea. 7040, (early 0259) Split lockwasher 5/16”

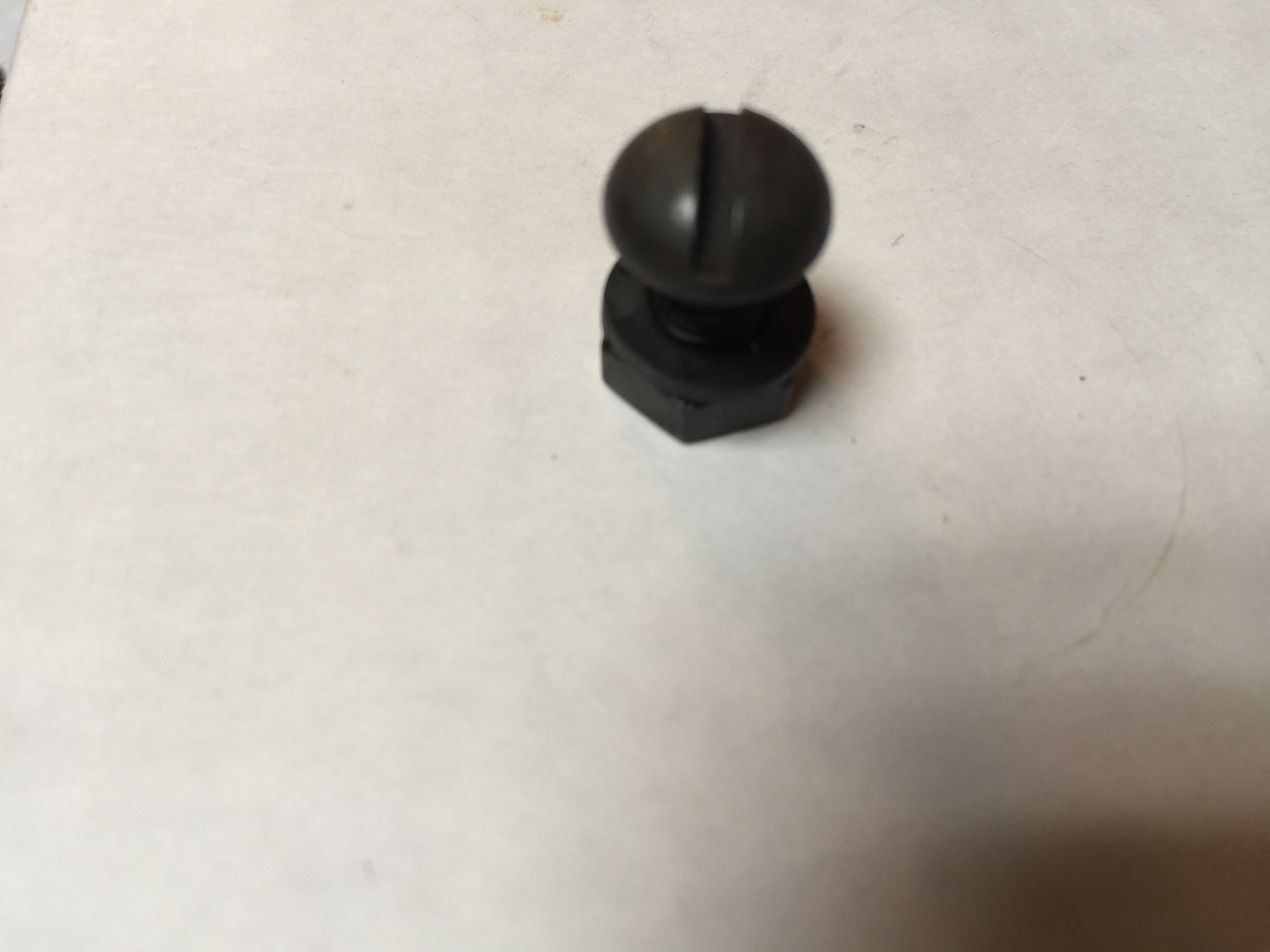

  • 5 ea. 2762, (early 051) Screw, spring yoke to fender 1/4-24 N.S. x 1/2” round head (two included for 1939-1946 Beehive tag bracket)
  • 5 ea. 7035, (early 0256) Split lock washer, 1/4” x 1/2” x 1/16"
  • 5 ea. 7691, (early 0108) Nut, 1/4”-24 N.S. x 5/32” x 7/16"
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
