Harley CP-1038 CP-1035 Knucklehead Panhead Foot Clutch & Jiffy Stand Mount Kit

  • Product Code: 351591107315
  • Availability: In Stock
  • $34.95

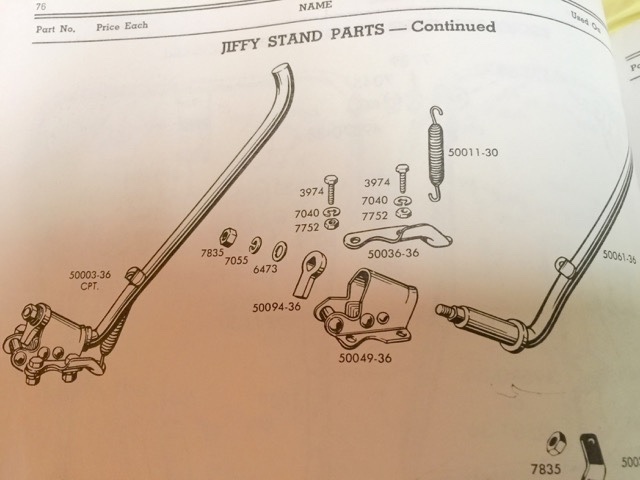

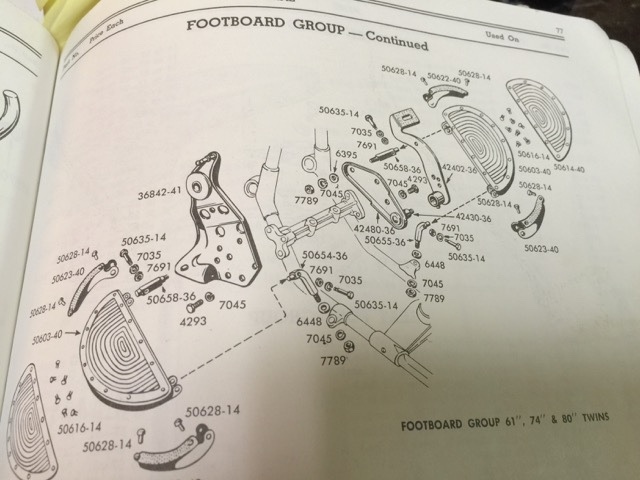

You are buying a big twin mounting kit for 1936 to 1978 foot clutch and foot shift equipped Harleys, includes Knucklehead, Panhead, and UL models. Includes all pieces shown to mount your foot-shift or foot clutch plate to the left frame mount and all pieces needed to mount your jiffy stand bracket and the jiffy stand to the bracket. Please consult your own parts or service manual for proper reference.  CP-1035 is generally considered correct for 1942 to around 1948 or 1949 when CP-1038 were fully phased in.  Parkerizing would be considered “correct” to some point into the 1960’s.

There seems to be some misinformation on CP bolts and "reproductions".  Chandler Products has always been willing to produce these bolts with large minimum quantity orders. There's either early production or current production. They changed head dies as they wore out and had multiple dies.  Nuts are USA made using the same process Harley used when they operated their own screw and nut equipment with the flat lands on them.  Spacers and washers are produced just like the ones H-D did back in the day.  Parkerizing and cad plating is same finish as how these came from the factory in the 1950's.  I've also got quite a bit of other hardware kits listed in my store under "pre 1980's hardware".

All USA made parts.

Used on the following:
  • 1936-1947 E, EL, ELA, F, FL 61” & 74” OHV Knucklehead
  • 1937-1948 U, UL, UH, ULH, UA 74” & 80” BT SV Flathead
  • 1948-1957 EL, FL, FLH 61” & 74” OHV Panhead & Hydra-Glide
  • 1958-1965 FL, FLH 74” Panhead Duo-Glide & Electra-Glide
  • 1966-1978 FL, FLH, FX Shovelhead Electra-Glide & Super-Glide

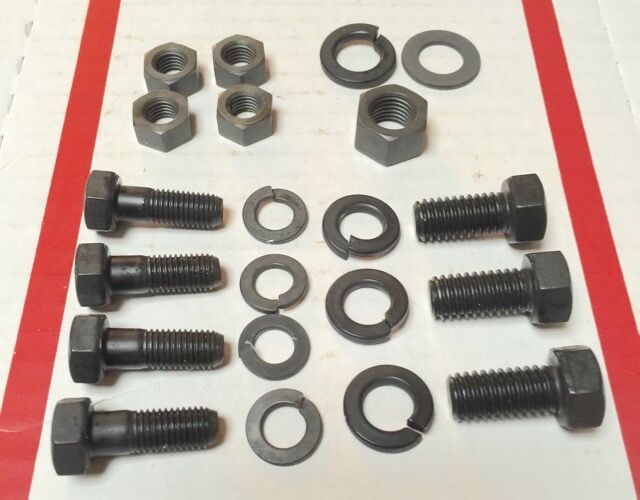

You get the following in this kit:
  • 4 ea. 7040, 5/16” split lock washer, 5/16” x 9/16” x 1/16"
  • 4 ea. 7752, Nuts, 5/16”-24 N.F. x 17/64” x 1/2"

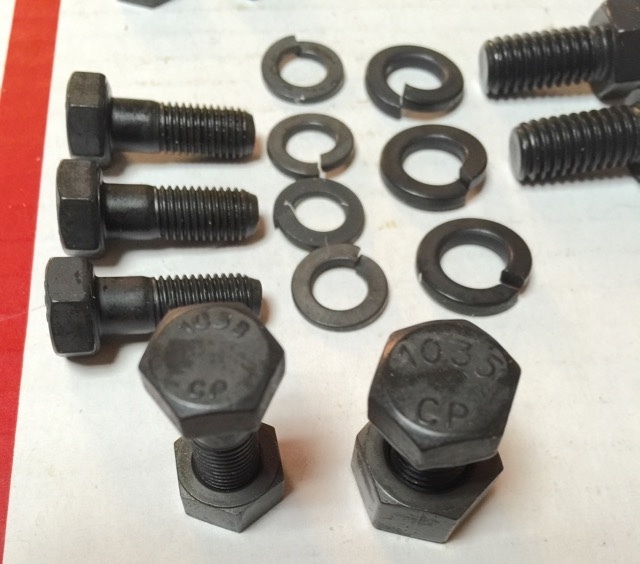

  • 4 ea. 3996, Bolts, 5/16”-24 N.F. x 7/8” x 1/2" (Stamped CP-1038)
  • 3 ea. 4293, Bolts, 3/8”-16 x 7/8” x 9/16” (Stamped CP-1035)
  • 3 ea. 7045, 3/8” split lock washer
  • 1 ea. 7835, Nut, 7/16-20 x 3/8” x 5/8”
  • 1 ea. 7056, 7/16” split lock washer
  • 1 ea. 6473HB, Flat washer, 29/64” x 51/64” x 1/16"
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
