Harley DL RL WL 45" C Single Pea Shooter Neck Cup Fork Kit 1930-38 USA Made

Harley DL RL WL 45 C Single Pea Shooter Neck Cup Fork Kit 193038 USA Made
  • Product Code: 353252597178
  • Availability: In Stock

  • $199.95


0 reviews / Write a review

USA made neck cup or fork mounting kit which is a spot on replacement for Harley-Davidson 1930-38 45" models including DL, RL W, WL, WLD solo and G, GD, GDT Servicar & 1930-1934 C singles.  This is an exact reproduction of the original parts and will give you a precision fit.  Includes everything you need to secure the fork including upper and lower neck cups, upper and lower bearing "cones", ball bearings, washer, and upper lock nut.  I believe you may be able to use this set up on a 1939 if you are running an I-Beam fork and earlier steering damper.  All parts are done with real cad plating process, not zinc.

These are for 7/8" fork neck stems, the OD of the "stem" that presses into your frame neck (these are an interference fit, you should heat up the neck and freeze the cups for installation) is right at 1 3/16", if you need a more precision measurement, just ask.

You can also buy these individual parts in our store along with the correct fork rocker kits for these models, single fenders, lighting, dash boards, oil and fuel lines, and spot on hardware to meet your needs.  If you can't find it here or cimarroncycleworks, just email us and ask.

Located at and ships from Cimarron Cycle Works, LLC in beautiful Cimarron, New Mexico, USA!

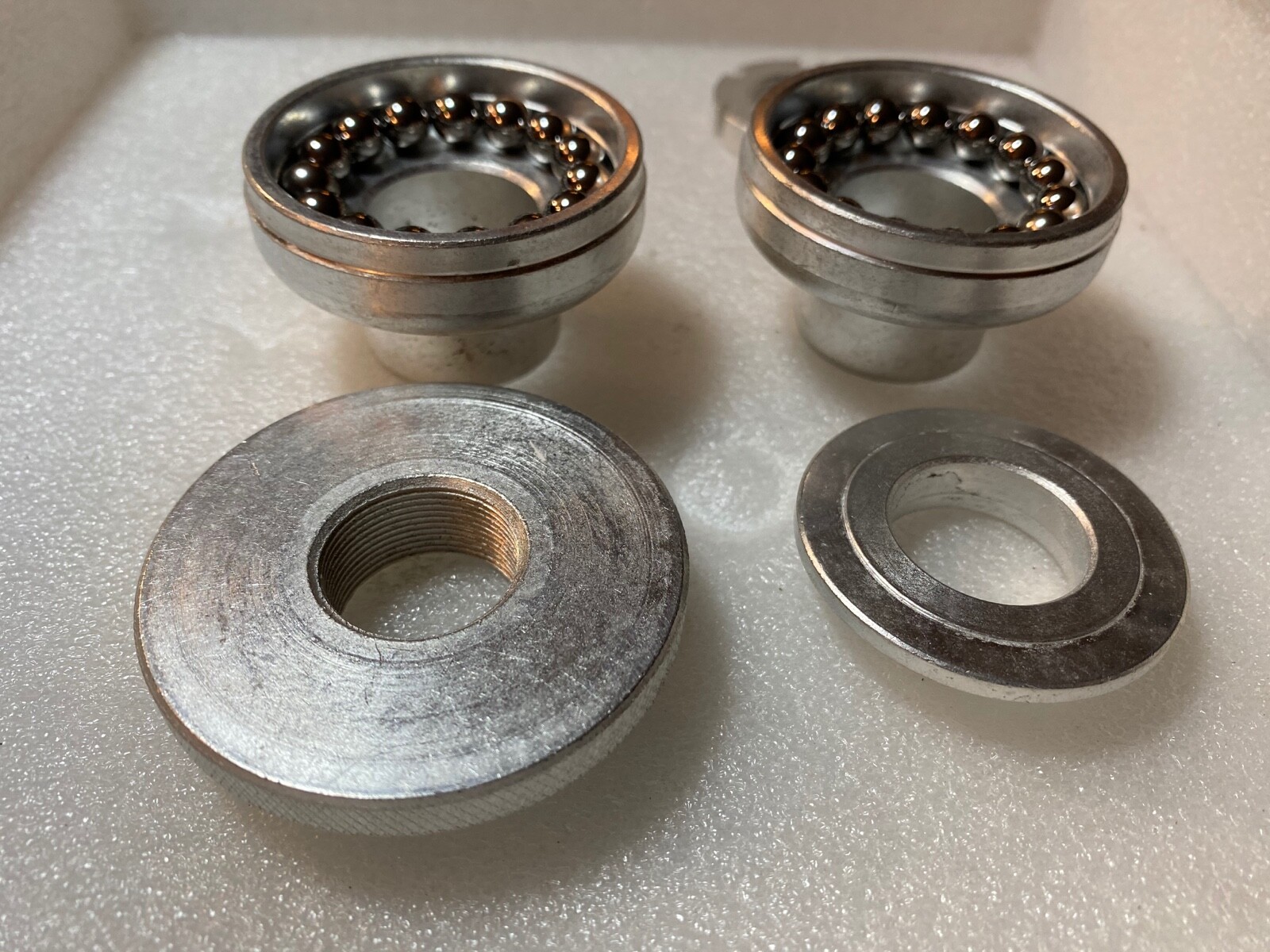

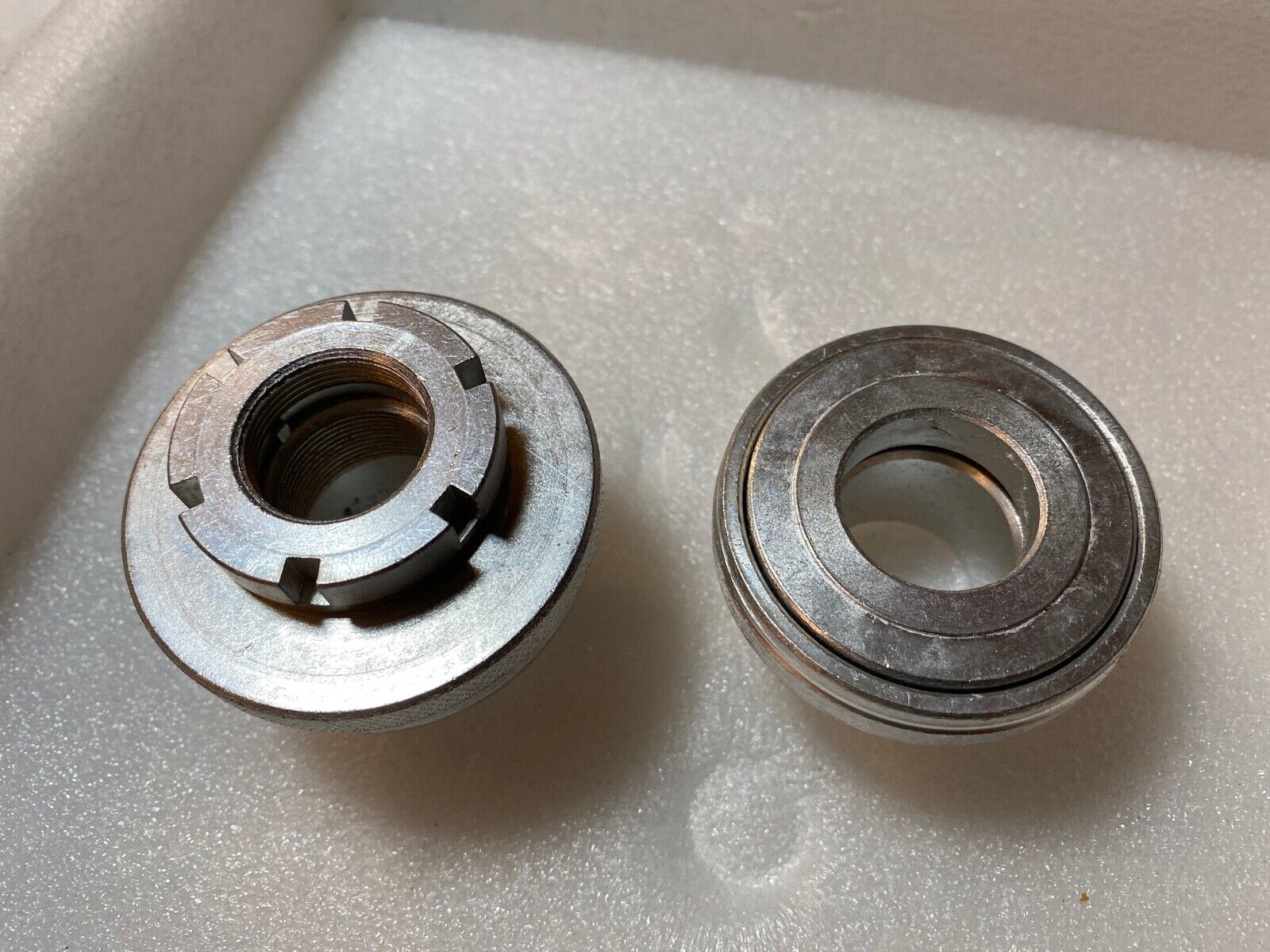

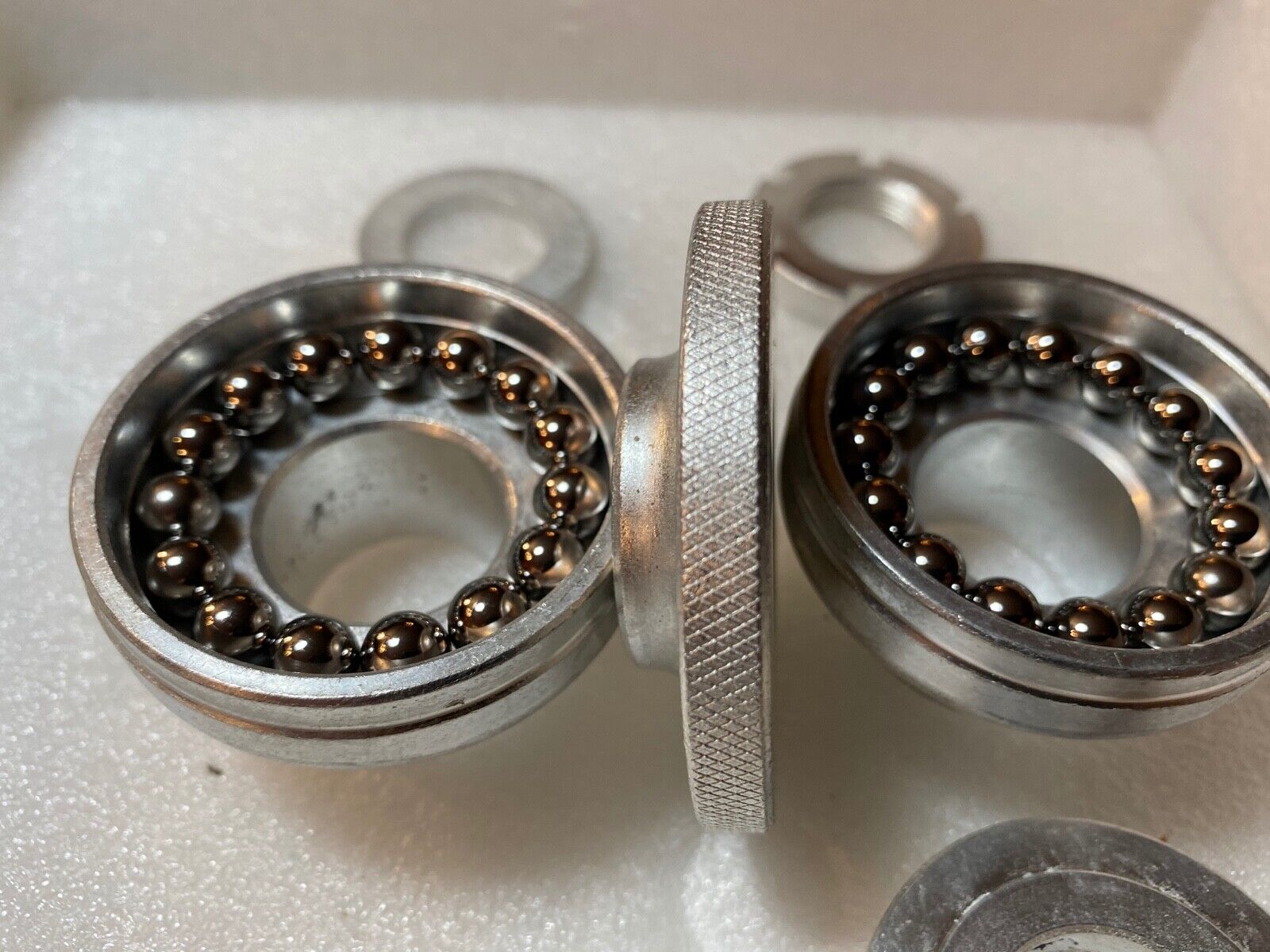

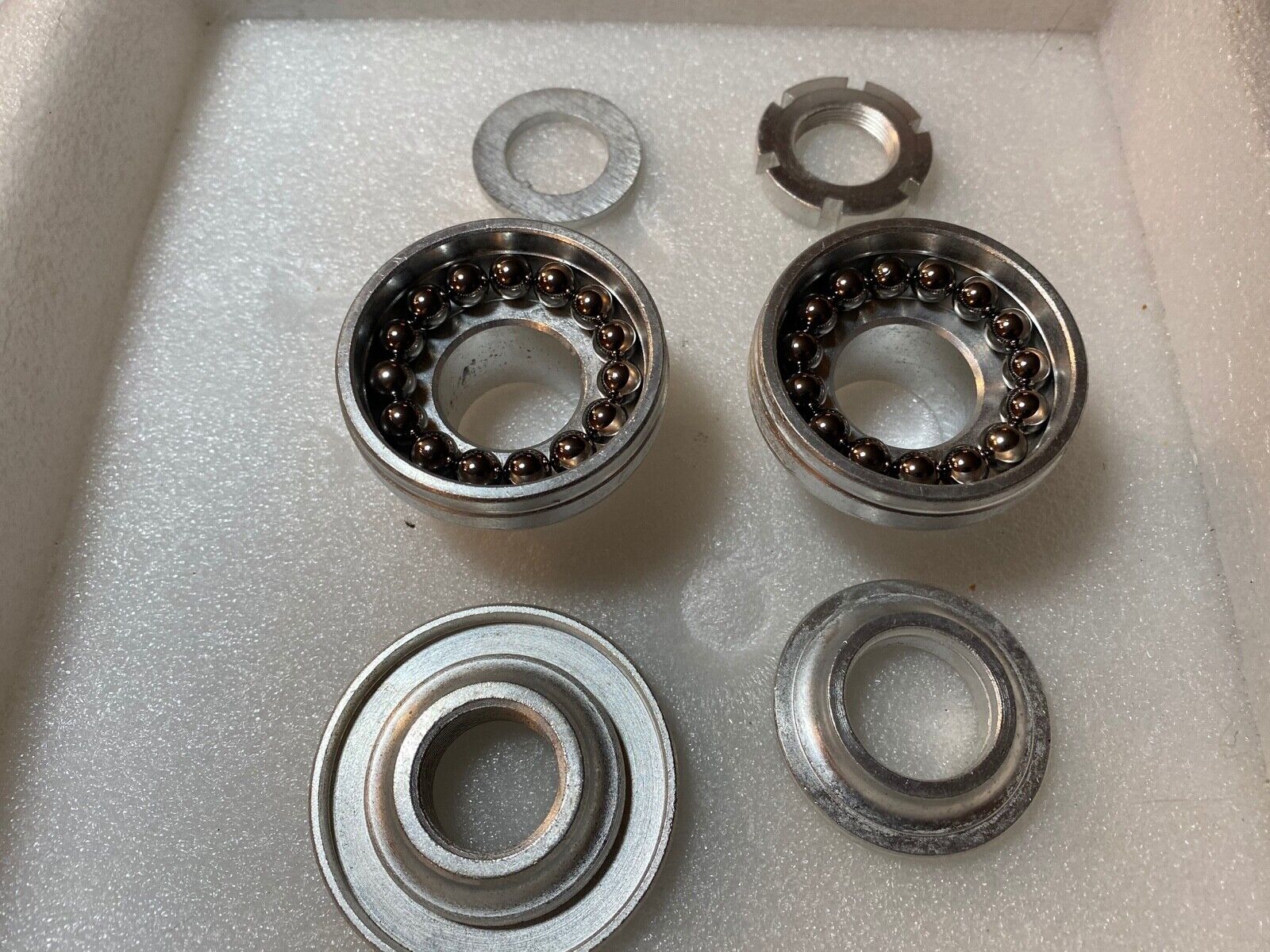

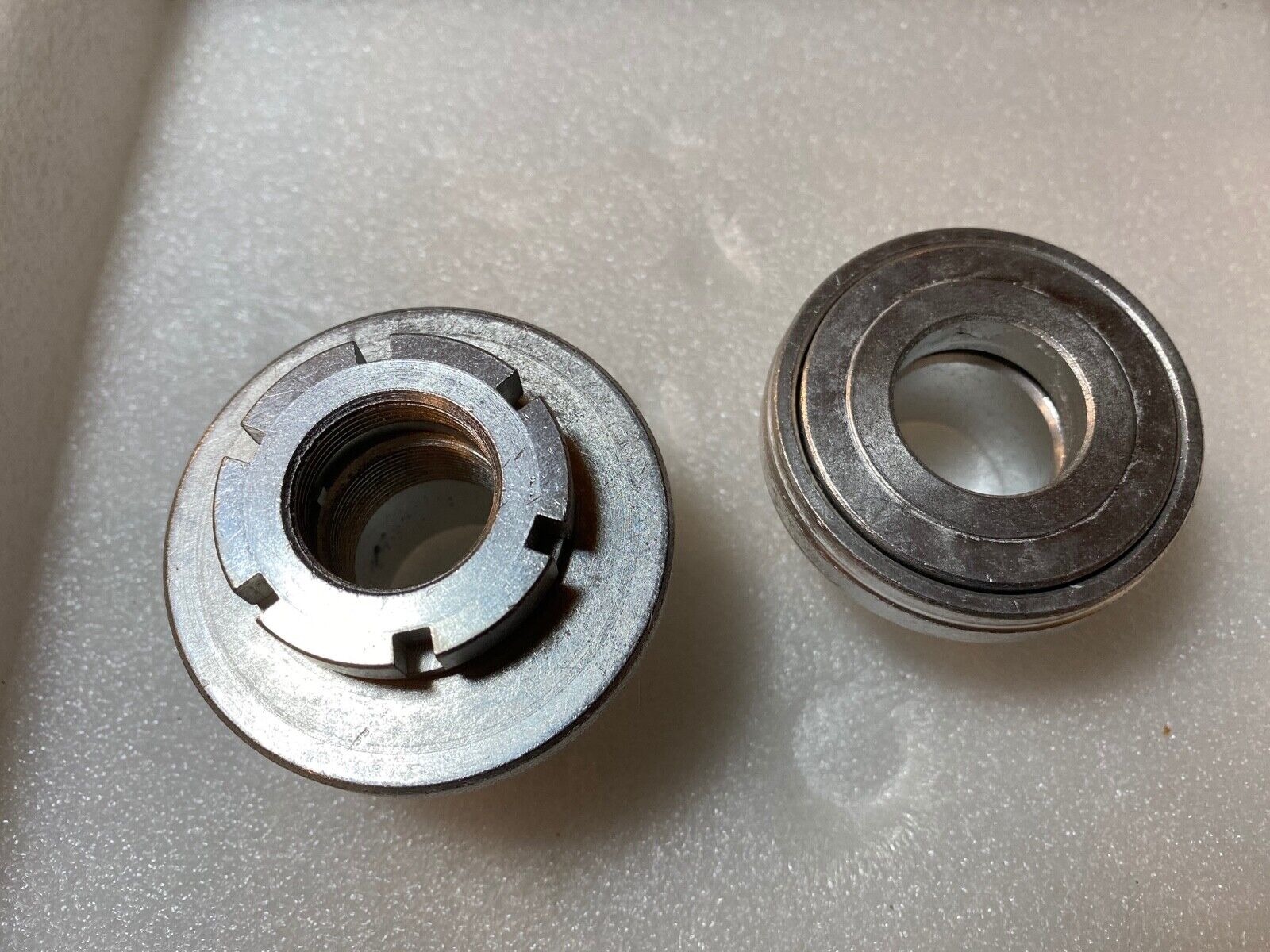

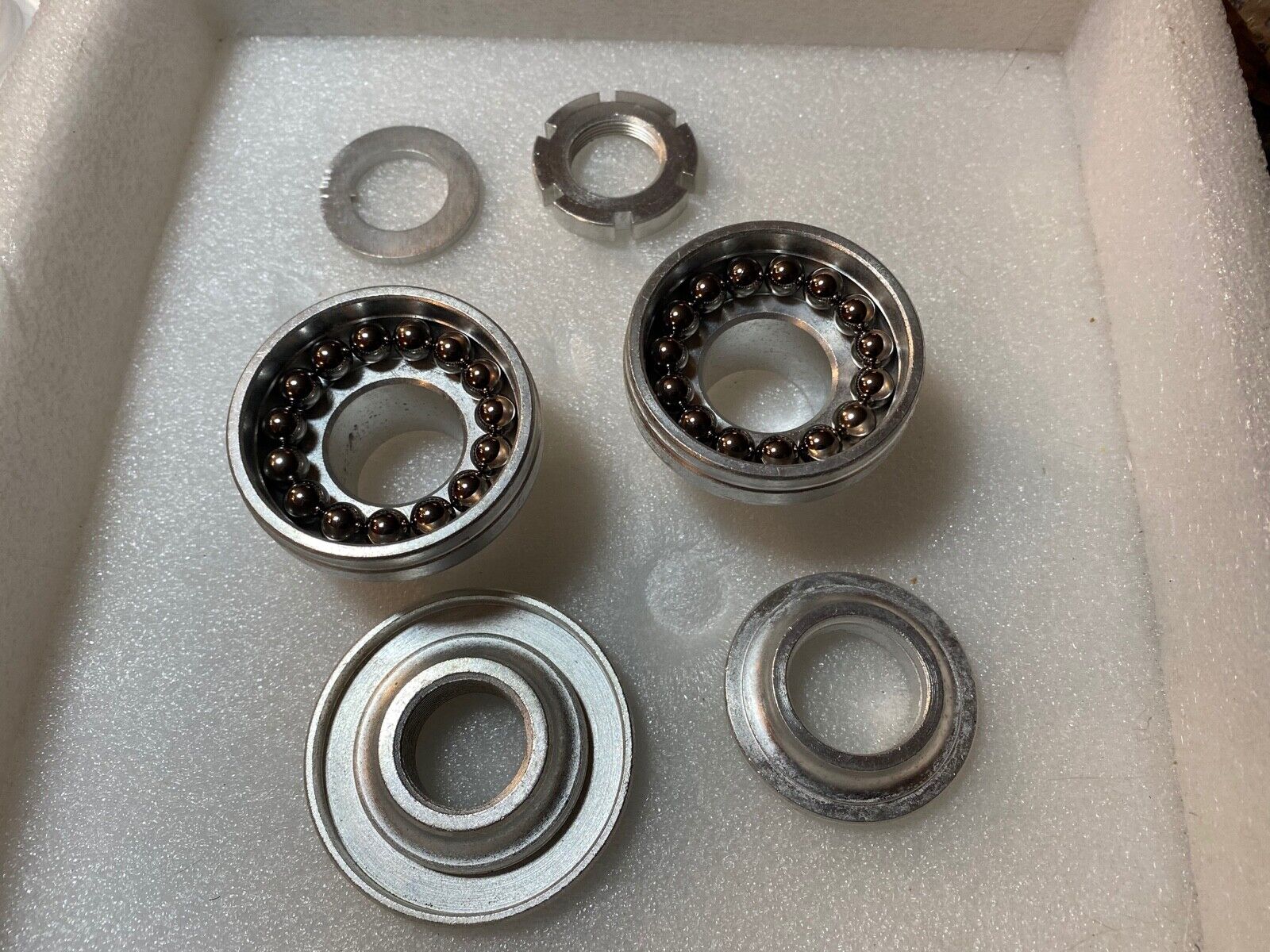

You get the following parts:
  • 2752-30 Neck cups, upper and lower, two (2) each
  • 2754-30 Upper head cone, threaded and knurled as original, one (1) each
  • 2756-30 Lower head cone, one (1) each

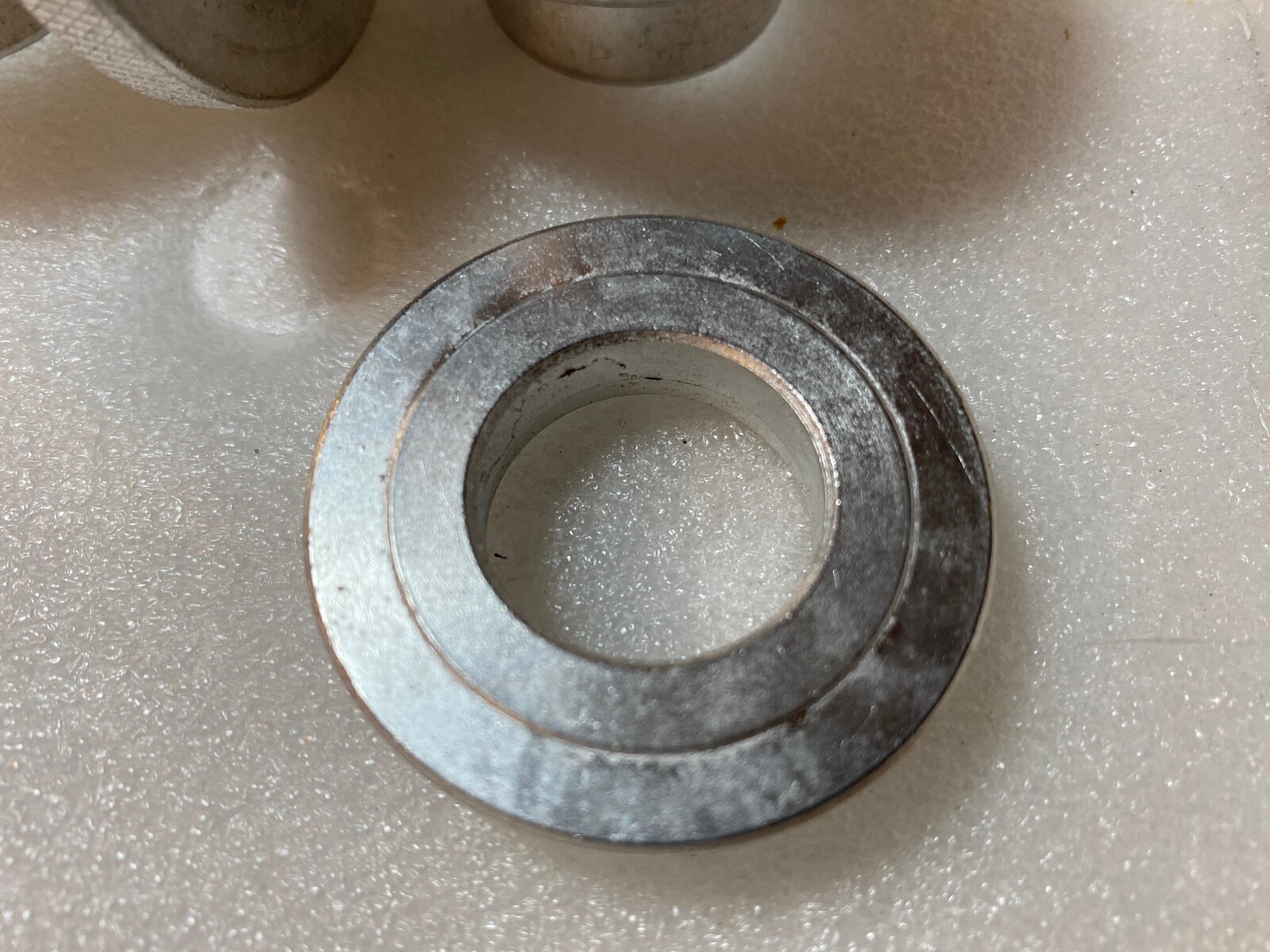

  • 2757-26 Head cone washer, one (1) each
  • 2759-30 Head cone lock nut, one (1) each
  • 0282 5/16" ball bearings or head cup balls, thirty (30) each
Fits the following models:
  • 1930-1931 D, DL, DLD, etc. 45" solo
  • 1930-1934 Model C single
  • 1933-1936 R, RL, RLD, etc 45" solo
  • 1937-1938 W, WL, WLD, WR 45" solo flat head
  • 1932-1938 G, GD, GDT  45" Servicar
Please check my eBay store for plain head machined CP-1035 and CP-1038 hardware, parkerized clamps & clips, speedometer drives, decals, more Linkert parts, fuel lines, oil lines, tank emblems, and other odds and ends for your vintage Harley project.
