Harley JD Single VL Nickel Plated Throttle Spark Cable Coil 1912-30 OEM 3334-12
- Product Code: 352209127039
- Availability: Out Of Stock
-
$54.95
You are purchasing one USA-made reproduction nickel-plated spark and throttle control coil for 1912-1930 single and twin models including JD, A, B, C pea shooter singles, and 1929-1930 DL 45" twins and 1930 model VL. All USA made hardware. Replaces OEM# 3334-12, 3326-09, 3324-09, 3343-09.

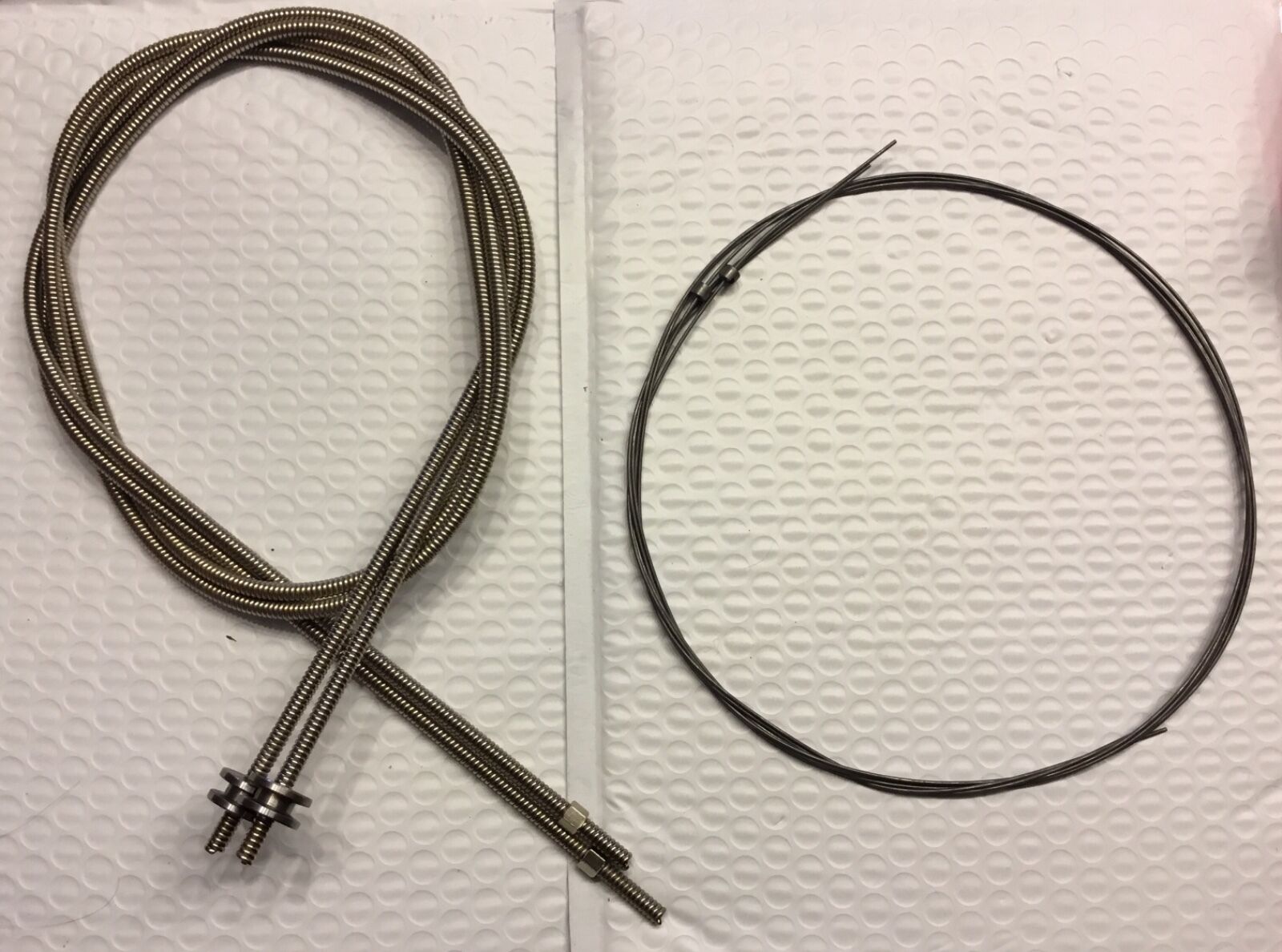

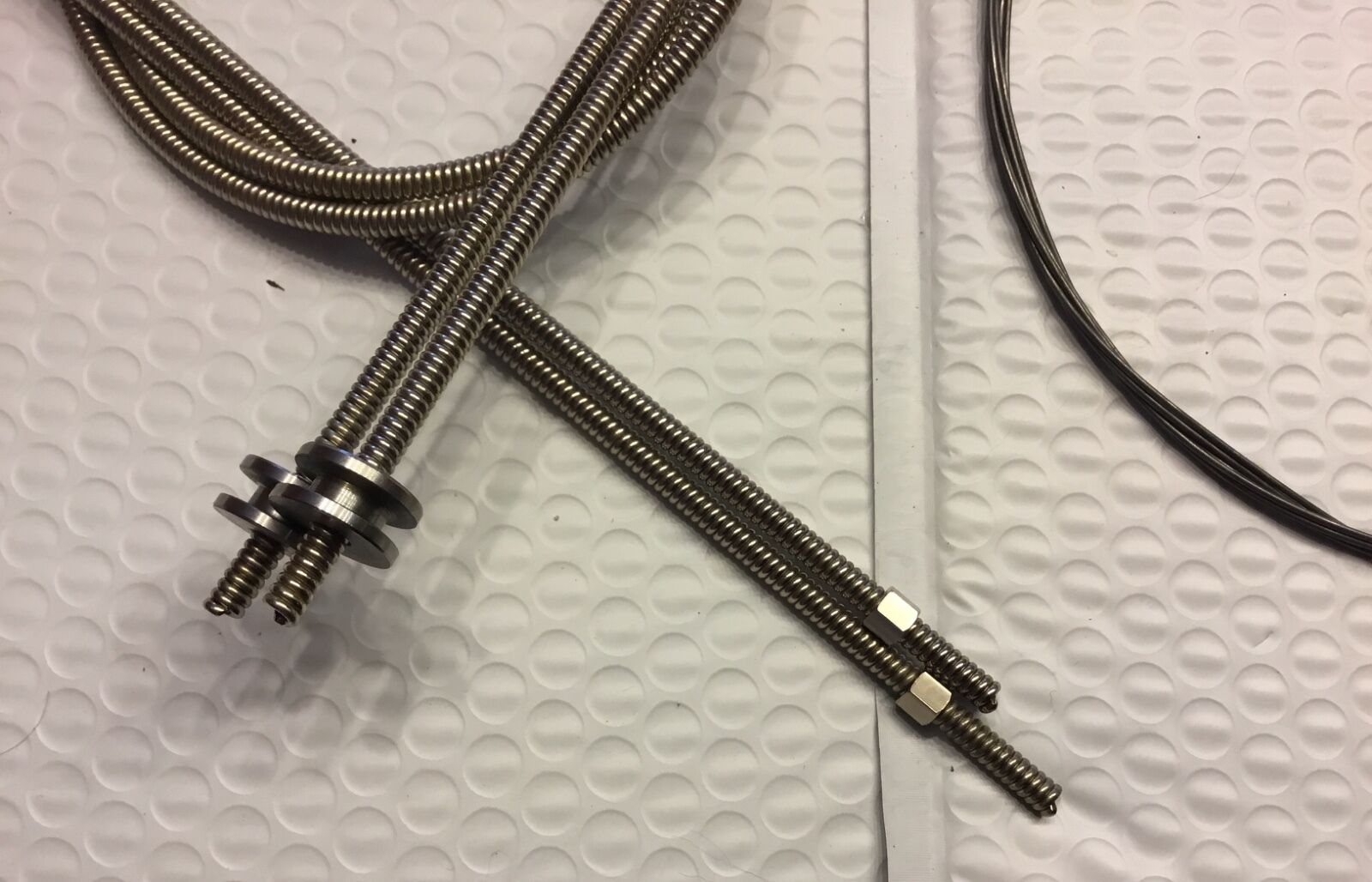

You will get ONE outer coil, inner wire, coil nut, coil spool, and wire end with your purchase. If you need a pair of these, we do sell them as a pair at a discount in our eBay store. Two coils are shown in some of the photos to show the detail of the coils and the hardware, you will not receive two coils with this purchase.
Machining and plating is identical to original OEM parts.
We also sell the cable nuts and single plated spark and pairs of throttle/spark coils with inner wires and nuts if you need a pair in our eBay store along with the nickel plated 1928-1930 front brake cable and later model cloth-covered spark, throttle, and brake coils.
Used on the following models, please cross-check your own reference material to make sure this is right for you:
- 1909-1929 All single and twin models including Sport Twin and JD
- 1930 VL 74” big twin sidevalve flathead
- 1929-1930 DL 45" twin solo

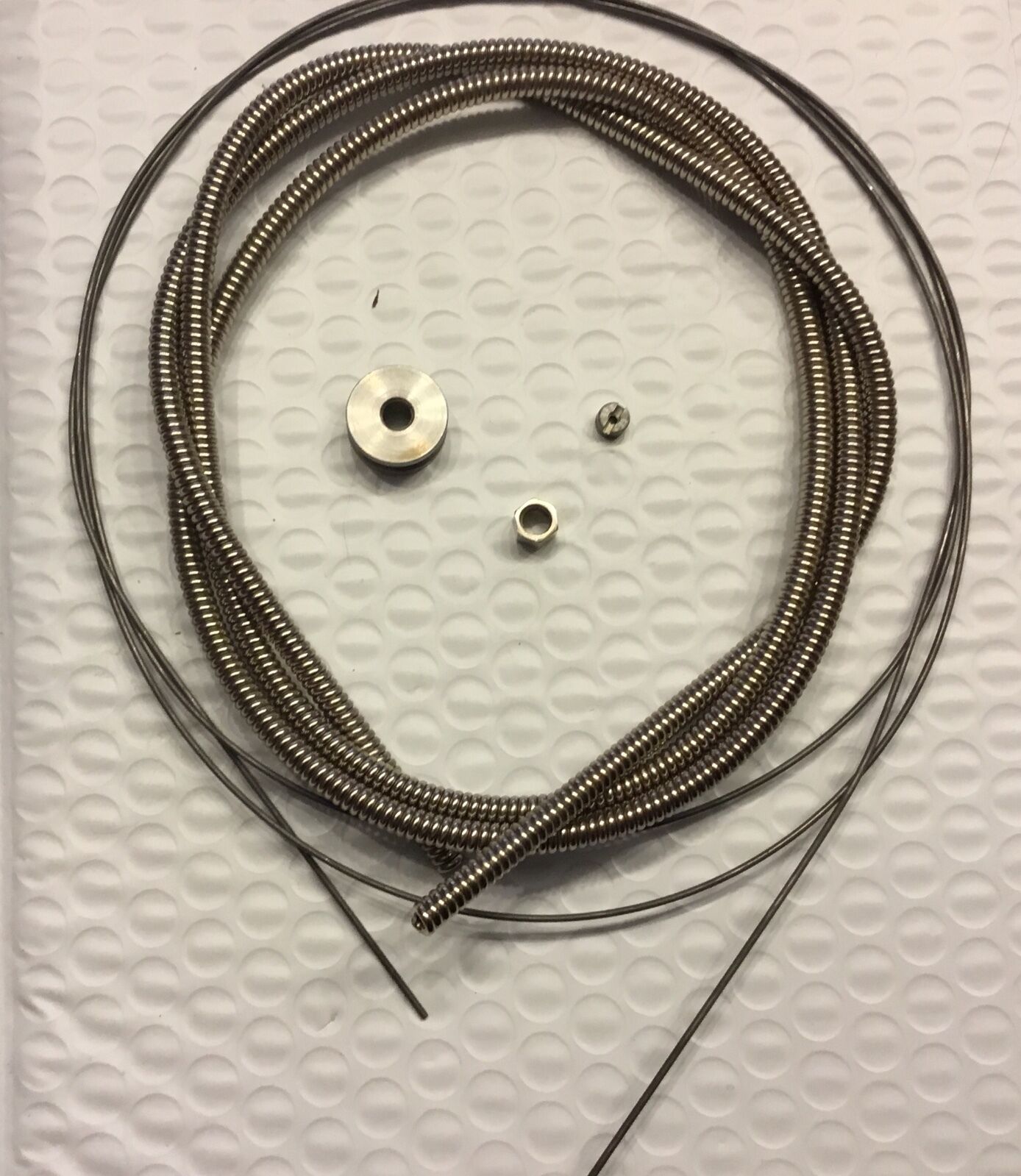

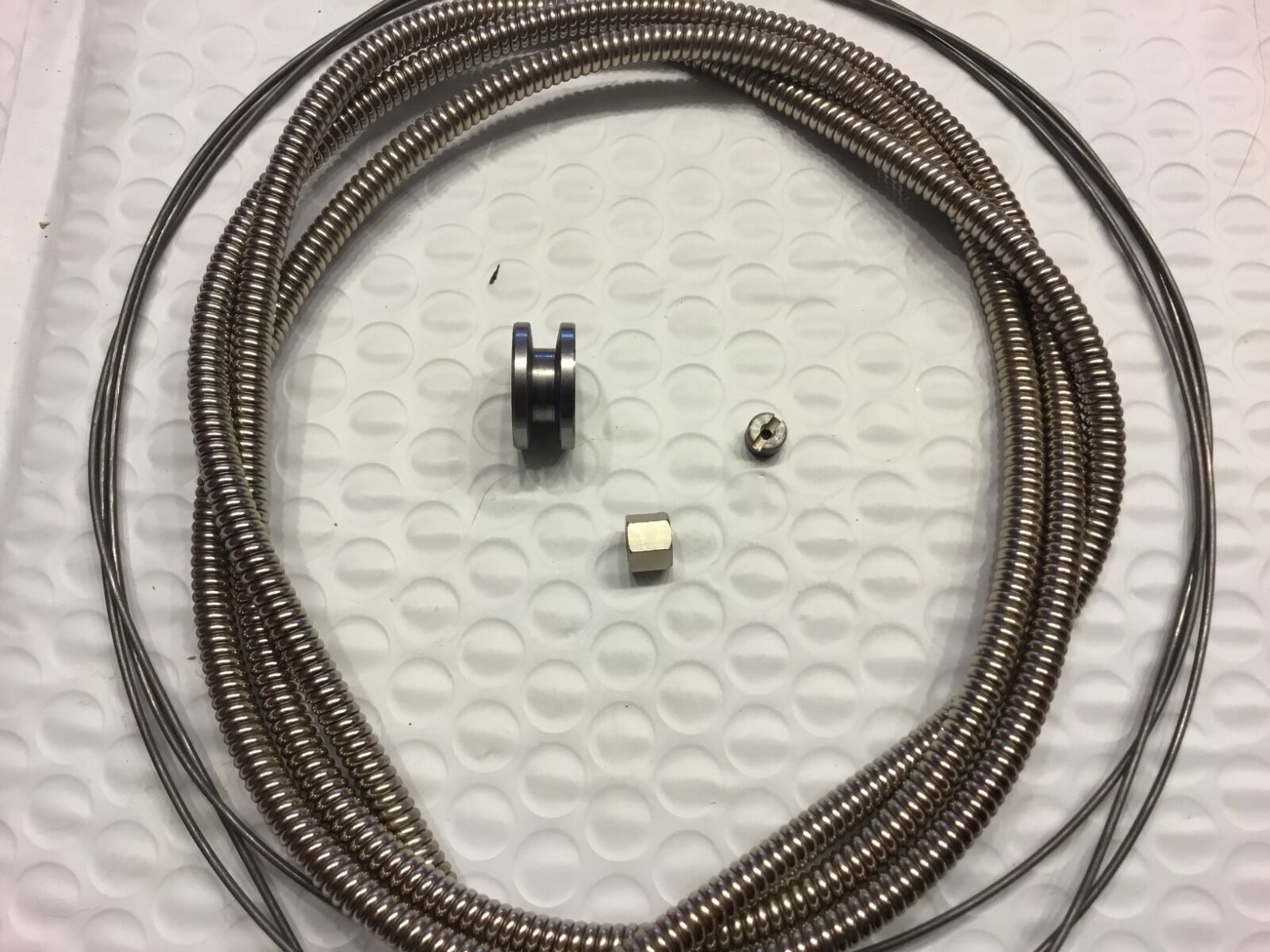

Kit contains the following parts and quantities as pictured:
- One outer coil with spools (OEM# 3334-12)

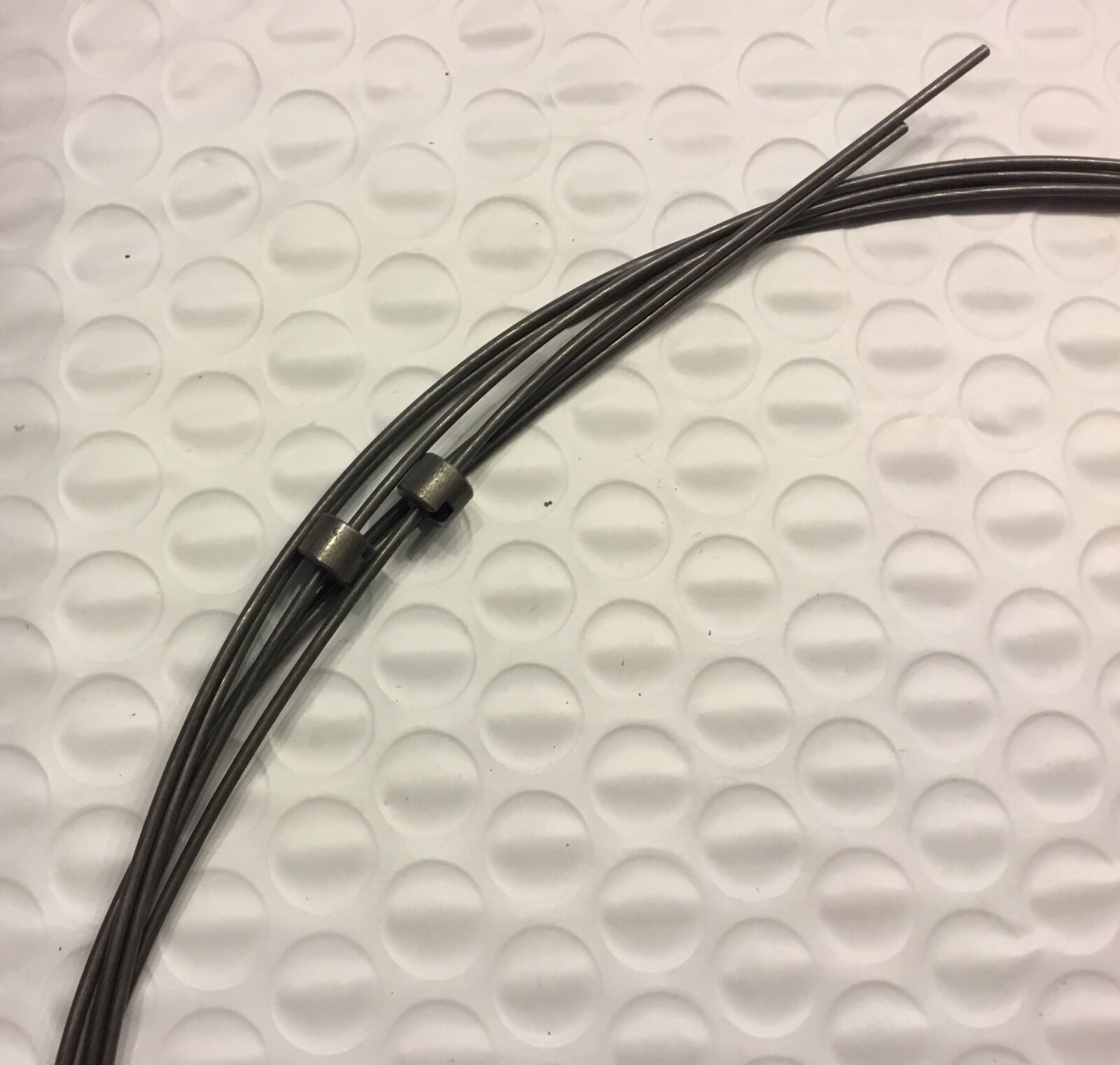

- One control wire (OEM# 3326-09)
- One control wire end (OEM# 3324-09)

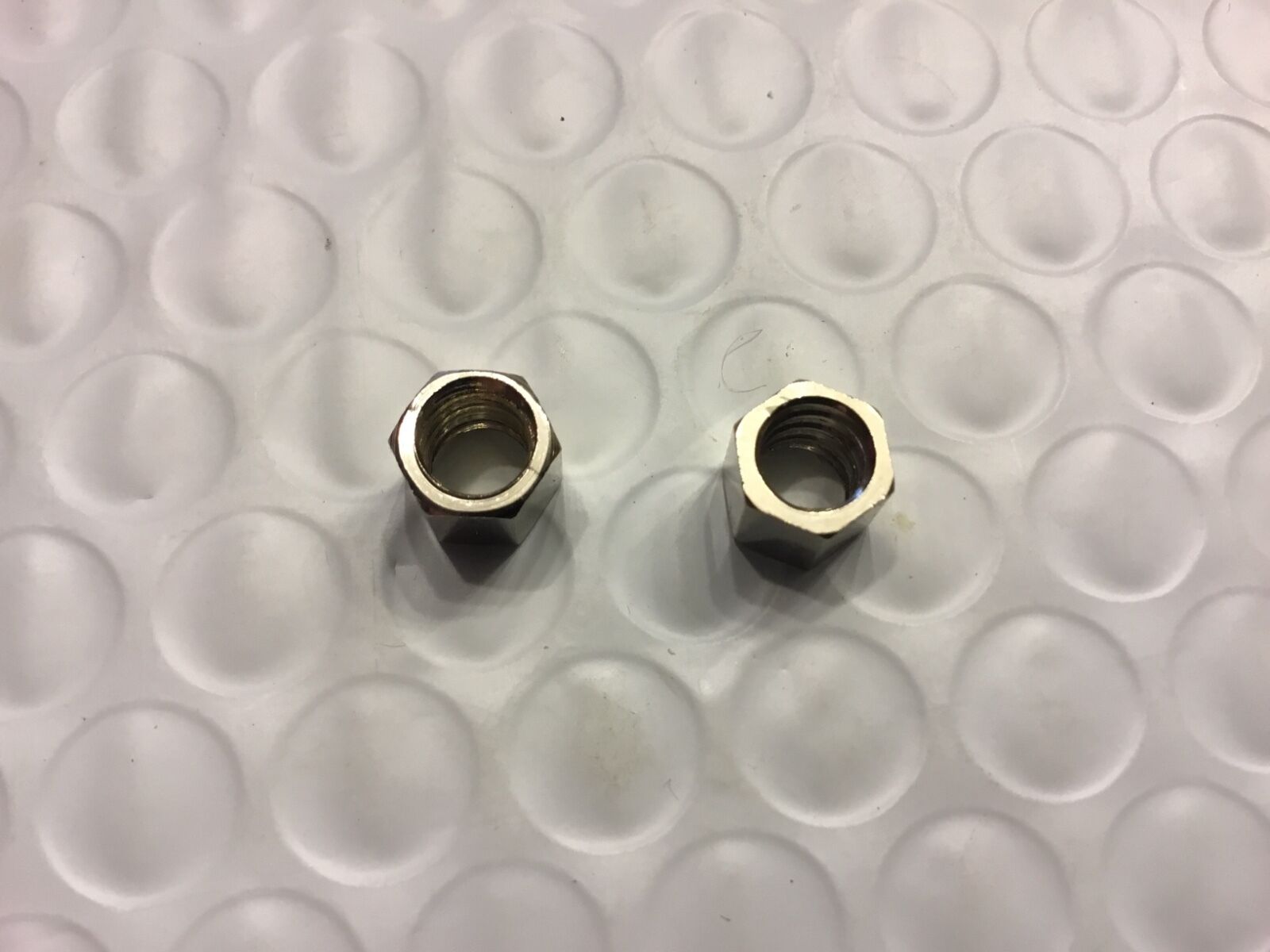

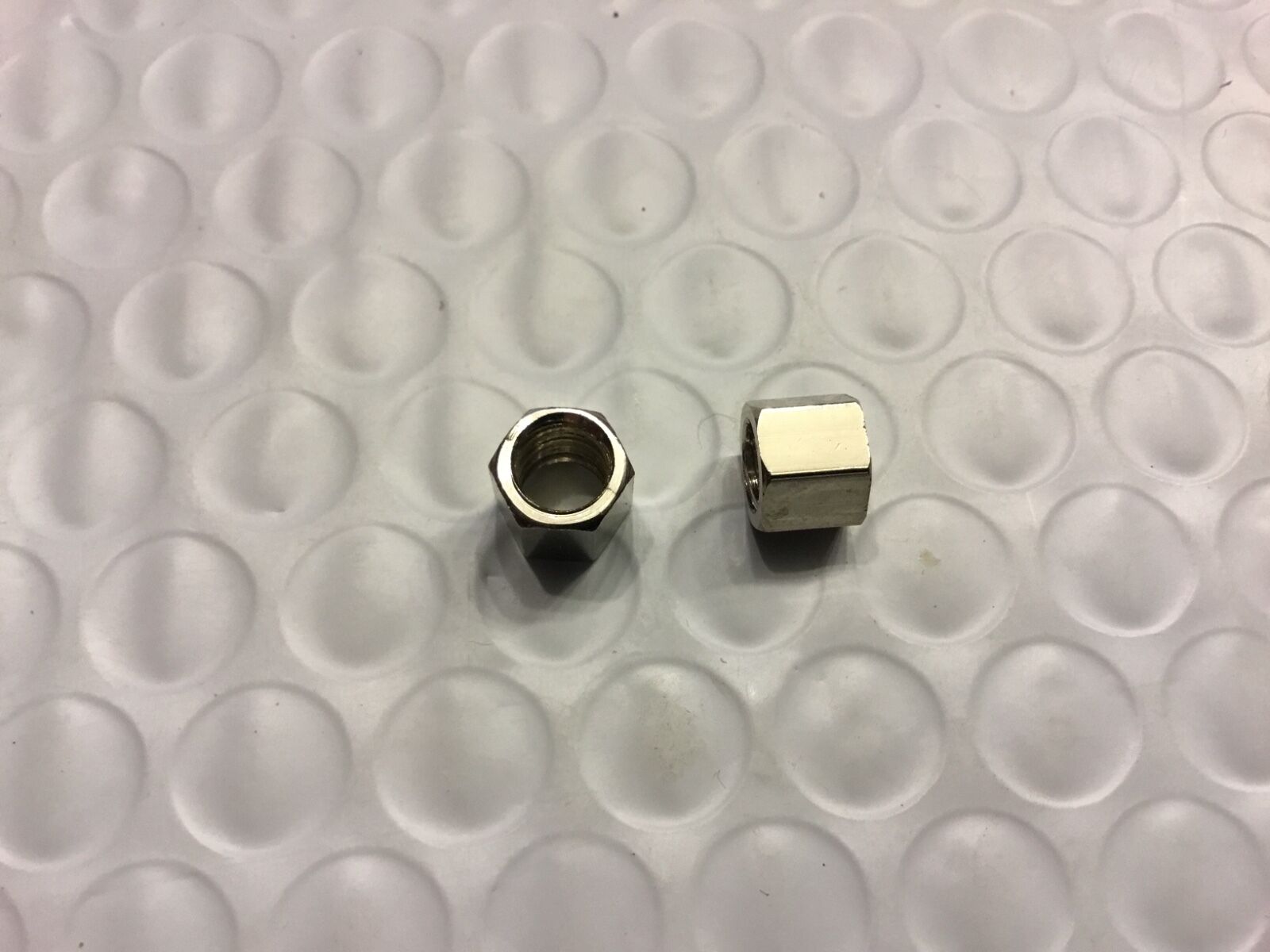

- One coil nut (OEM# 3343-09)
Ships via first class padded mailer or postal priority overseas, your choice. U.S. Ships priority only due to weight.
