Harley JD VL DL RL Single #6 Open Barrel Field Coil Terminals 1924-36 # 1520-24

  • Product Code: 354457514328
  • Availability: In Stock
  • $5.95

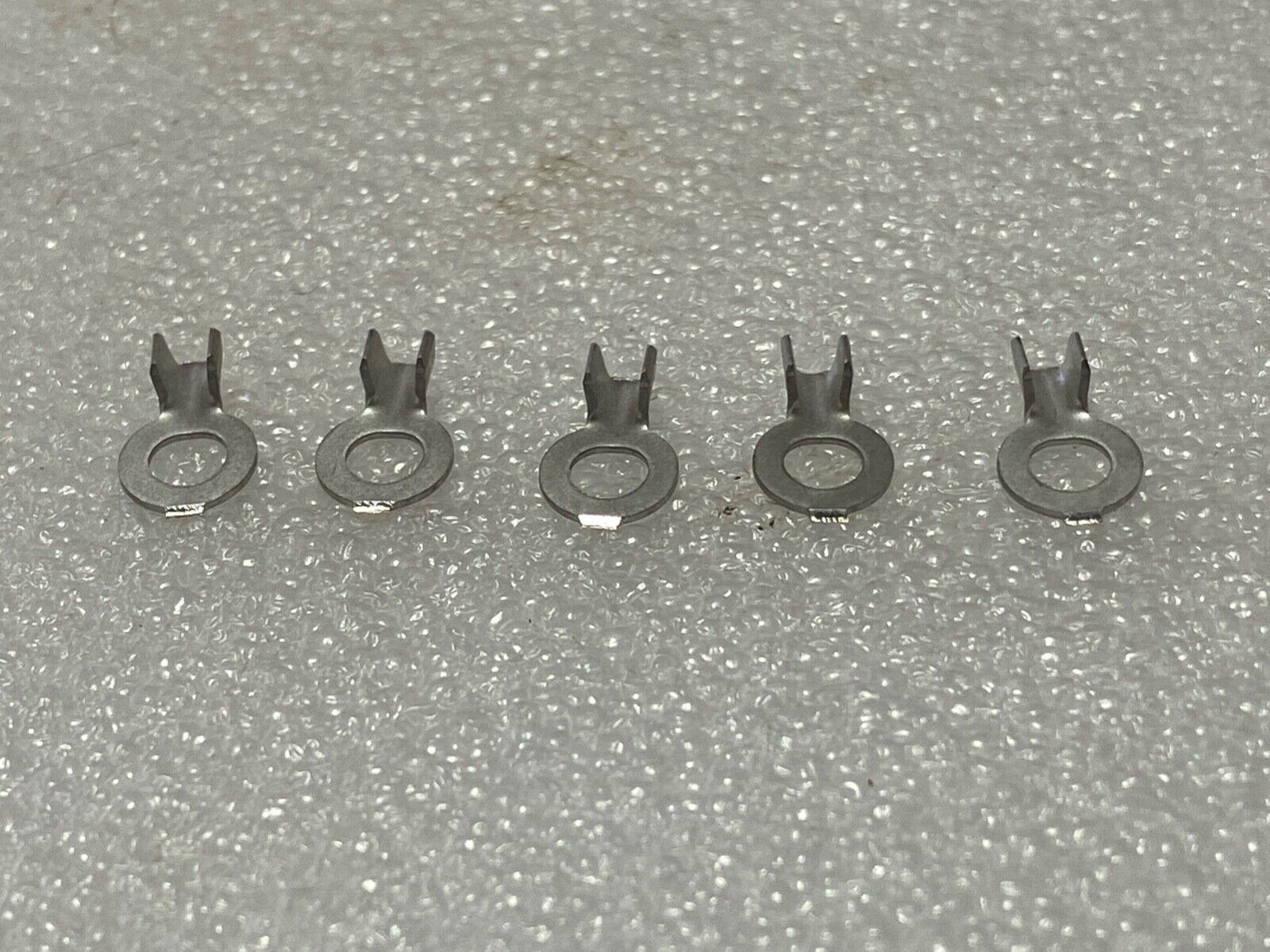

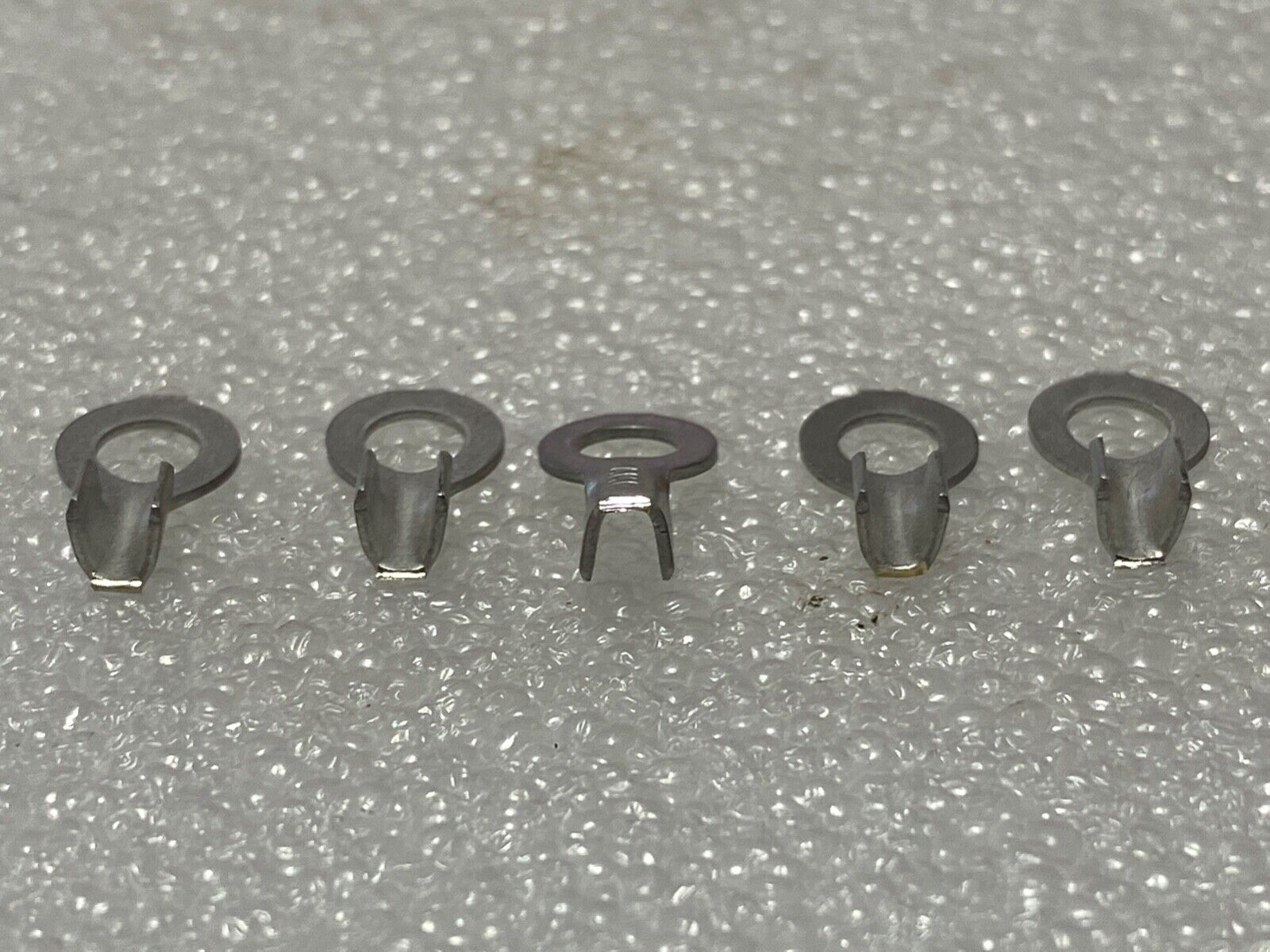

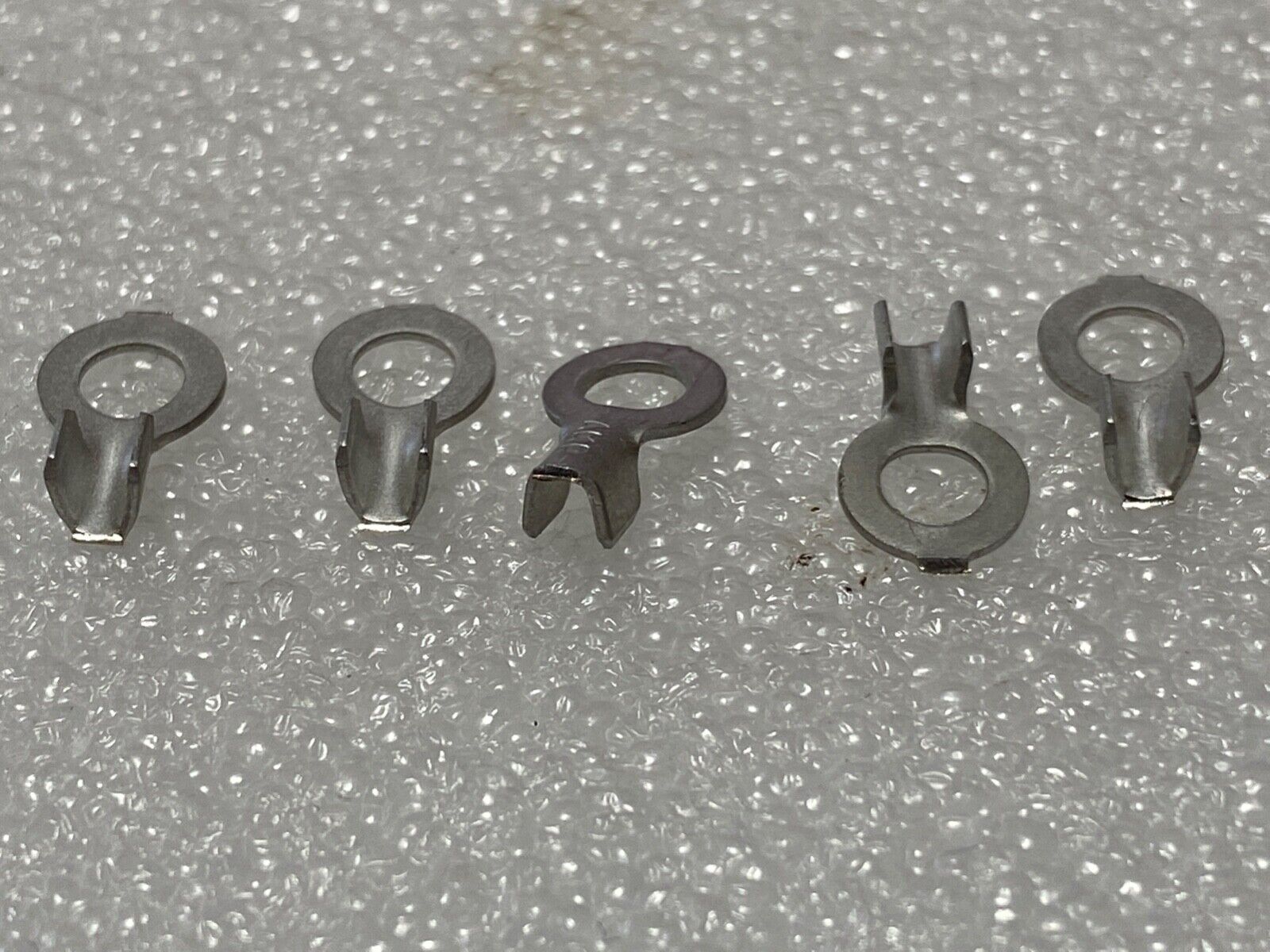

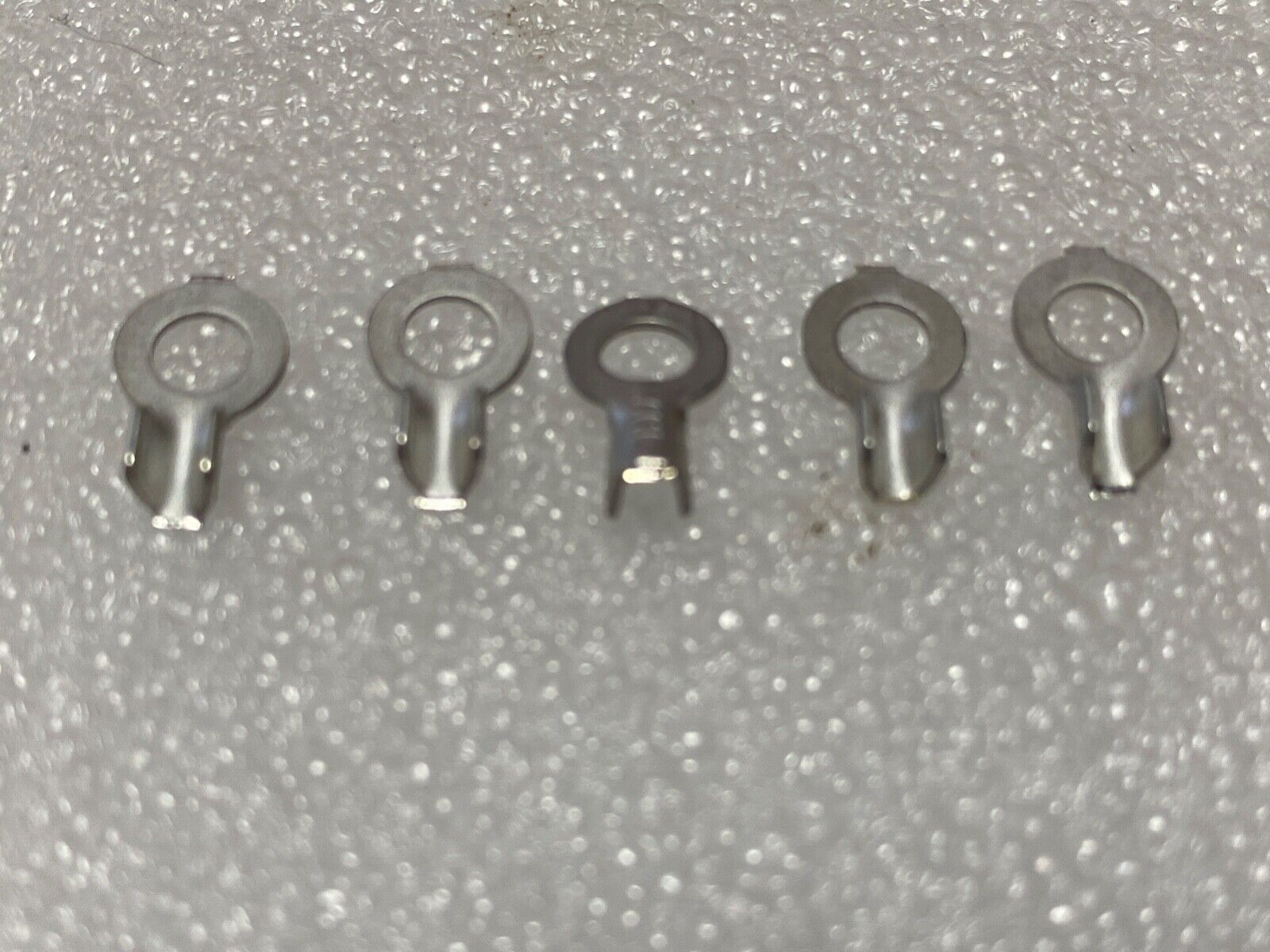

Excellent USA made reproductions of 1520-24 open barrel #6 ring terminals.  You are purchasing five (5) of these terminals with each purchase.  These started into use as field coil ring terminals in 1924 and were used through 1947 on field coils and were used 1936-1947 as ignition switch terminals on all twin models using the Briggs & Stratton style ignition switch.  We also stock the copper fold over flag terminals for your 1939 through 1945 Harley-Davidson Knucklehead, UL big twin, and 45" solo civilian and military flat head or sidevalve models and the 1614-18 open barrel #10 eyelet terminal used on VL, DL, RL, and JD harnesses and as the coil terminal on timer wires through 1947.  These have always been difficult to obtain.  Please check in with us about our premium wiring harness kits which use these terminals as well as the copper flag ones.  If you don't see them in our eBay store, just email.

Use of these terminals requires a solder pot or soldering iron.  You clamp the terminal over the bare wire end and then solder the wire to terminal joint.  These are not meant for a solder-less connection.

We now manufacture and stock premium wire harness kits for 1929 JD, 1929 DL (NOT the same as JD) 1930 DL, 1931-36 DL/RL, 1931-1934 Single, 1936-1937, 1938, 1939-1940, 1941-1945, 1946, and 1947 twin models.

Be sure to check all of our other wiring products such as pre-wired headlamp and tail lamp harnesses, dimmer switches, turn signal switches and early and late style horn switches.

This is an AMCA restoration quality part and it will function just like the original.

Used on the following models:
  • 1924-1929 J, JD, JDH, etc. 61" & 74" IOE
  • 1926-1934 A, B, C Single
  • 1929-1936 DL, RL 45" solo
  • 1930-1936 VL, VLD, VLH, etc. 74" & 80" big twin flathead
  • 1932-1947 G, Servicar
Used as ignition switch terminals on all Harley twins from 1936-1947.

We carry a full line of hard to find detail correct hardware, fuel lines, oil lines, electrical terminals, headlamps, tail lamps, etc.

A Note On Shipping:

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
