Harley Knucklehead Panhead Rear Fender Mount Clamp Bolts 36-57 #4004 3748-36
- Product Code: 351989638595
- Availability: In Stock
-
$12.95

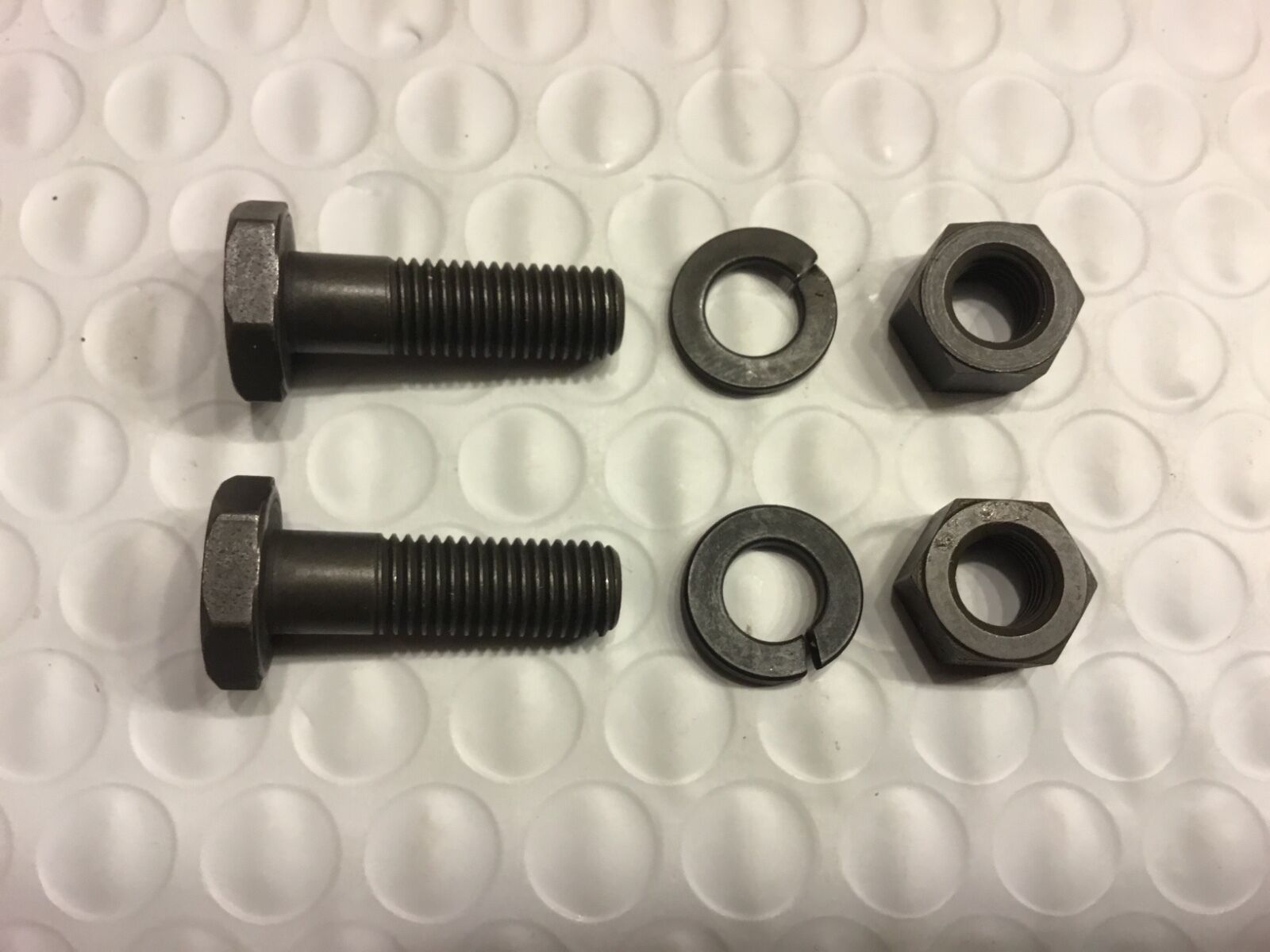

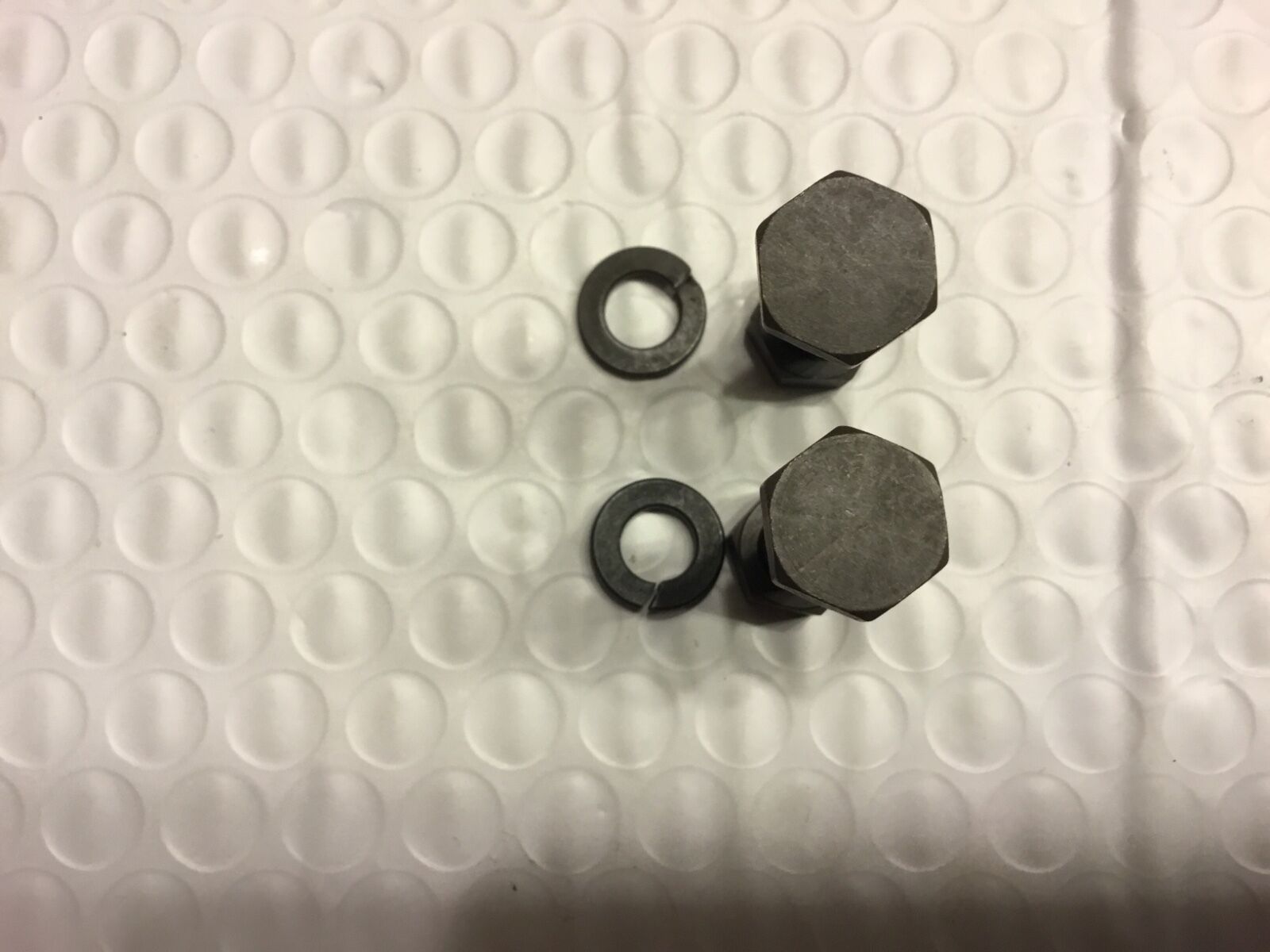

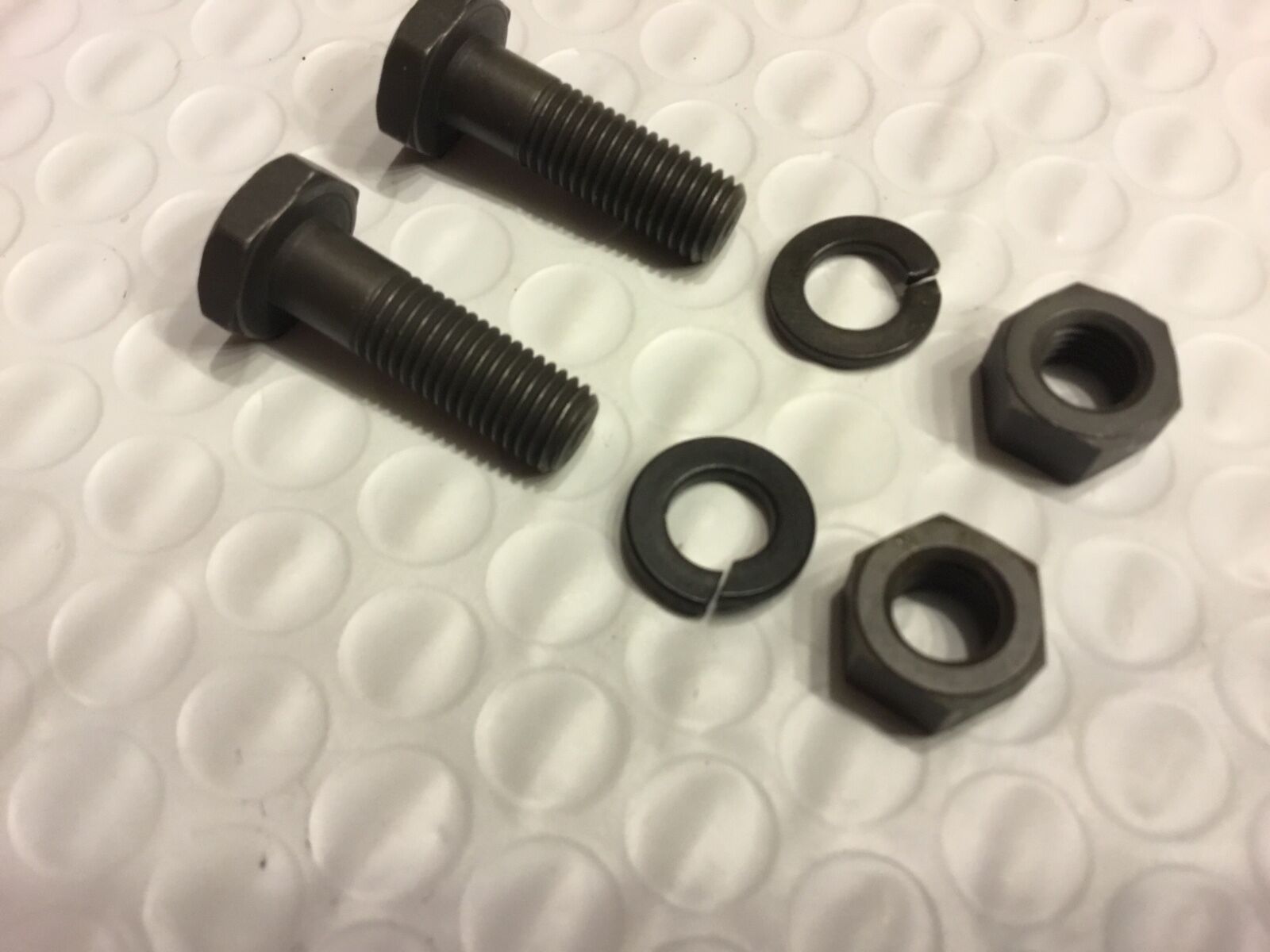

You are purchasing parkerized USA made reproductions of the following:
- Two ea. Special rear fender frame bracket bolts, Harley OEM# 4004 (early# 3748-36) 5/16”-24 x 1 1/32"
- Two ea. 5/16”-24 x 17/64” x 1/2” hex nut, Harley OEM# 7752 (early# 0117)
- Two ea. 5/16” split lock washers Harley OEM# 7040 (early# 0259)

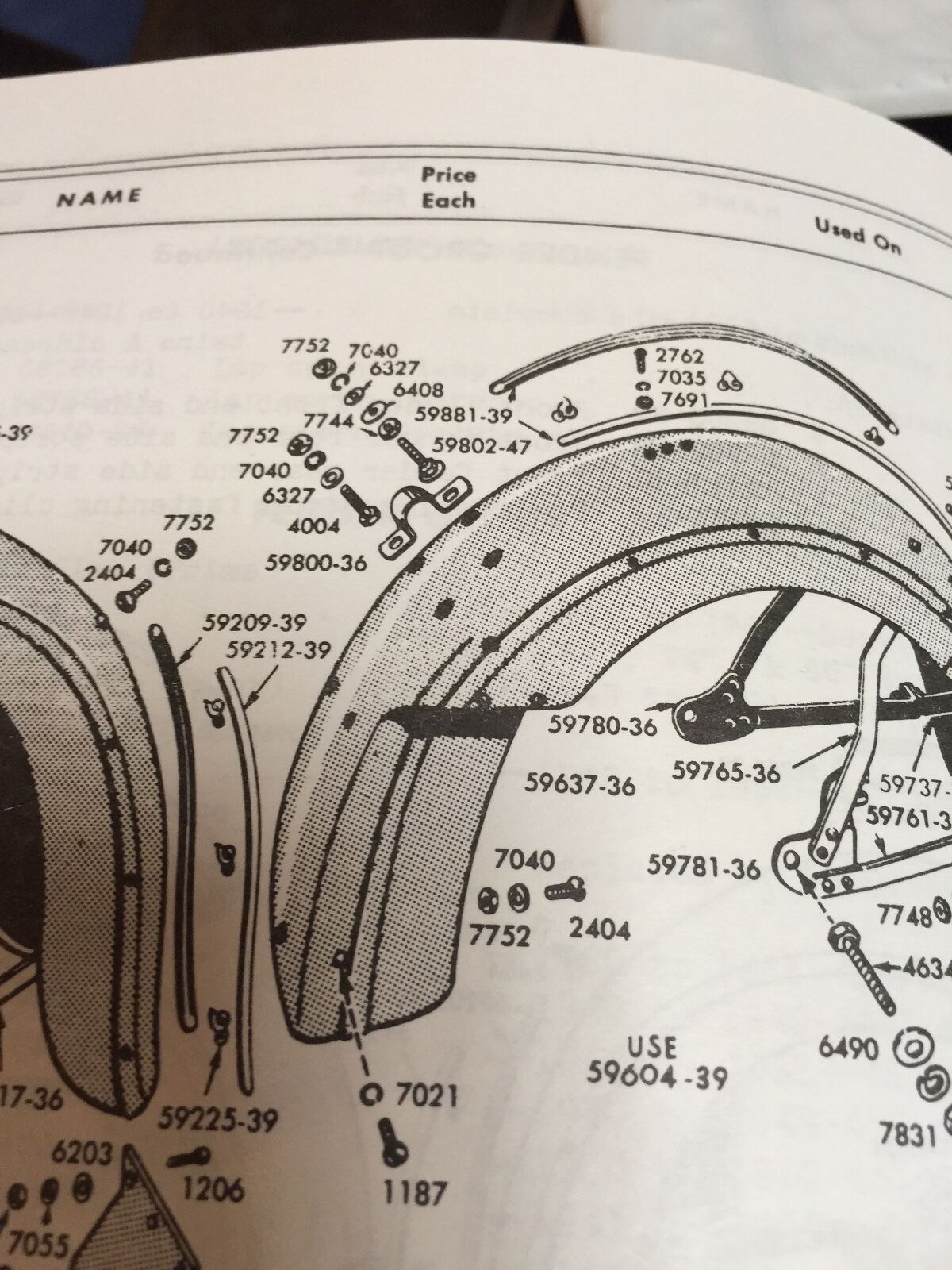

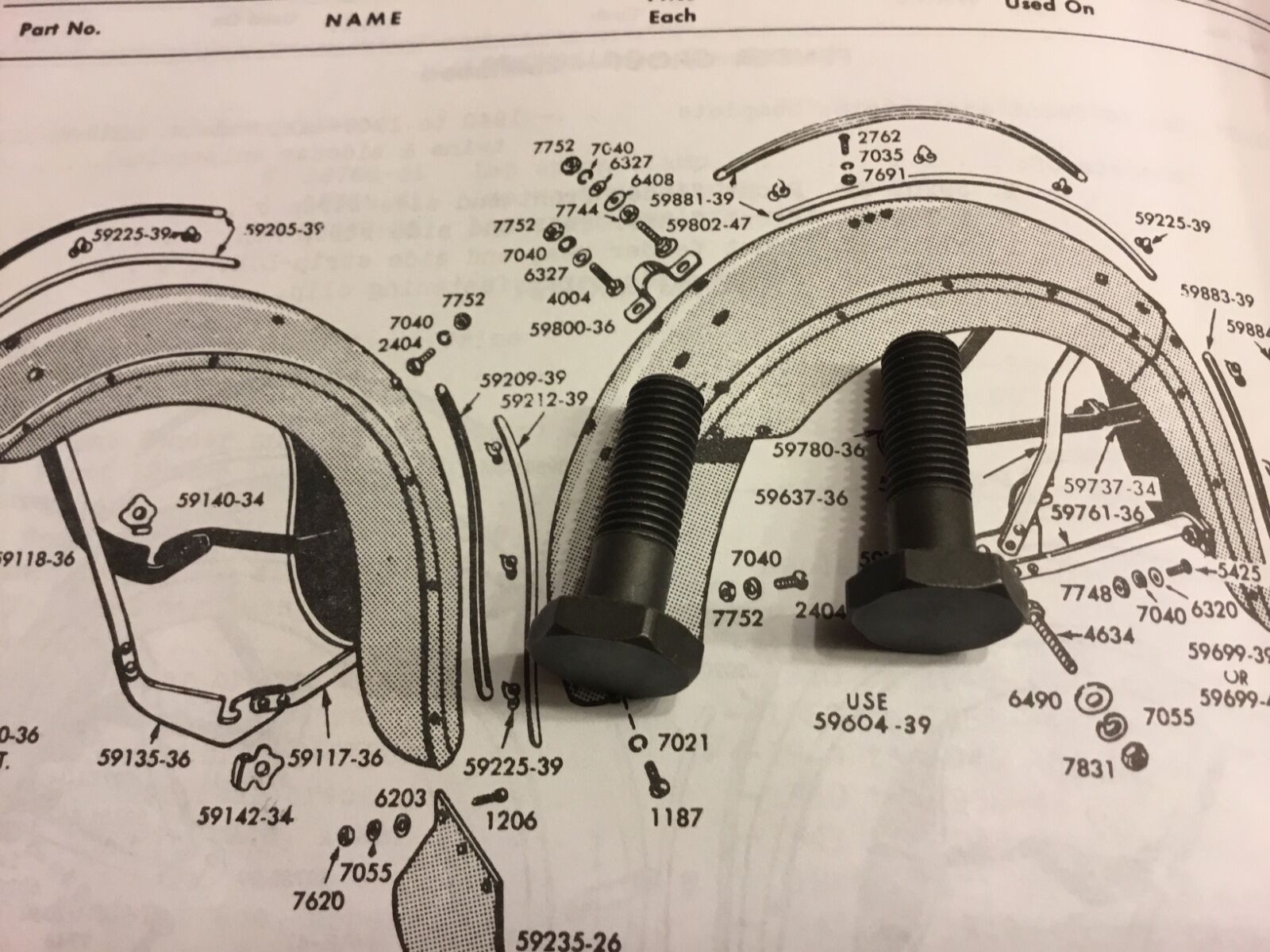

They were used as in the parts manual illustration I’ve provided in the photos. Four of these were used on 1936 to 1946 big twin models to mount the rear fender saddles. The longer 3743-47 with a special round head (59802-47 late OEM#) was used from 1947 through 1957. This is especially important if you had a buddy seat spring yoke mounted on your bike.
Used on the following models:
- 1936-1947 EL & FL Knucklehead- four used on 1936-1946, two used in lower holes only on 1947 if your bike had a buddy seat yoke
- 1937-1948 U, UL, ULH Big Twin Flathead- four used, two used in lower holes only on '47 & '48 if your bike had a buddy seat yoke
- 1948-1957 EL, FL, FLH Panheads two used on the lower holes, four if not using a buddy seat yoke
Be sure to see our other hardware and hardware kits in our eBay store. We are adding new items every week.
