Harley Knucklehead Panhead WLA WLC Cad Plated Timer Cover 1936-64 OEM# 1567-36N

  • Product Code: 292405491012
  • Availability: Out Of Stock
  • $34.95

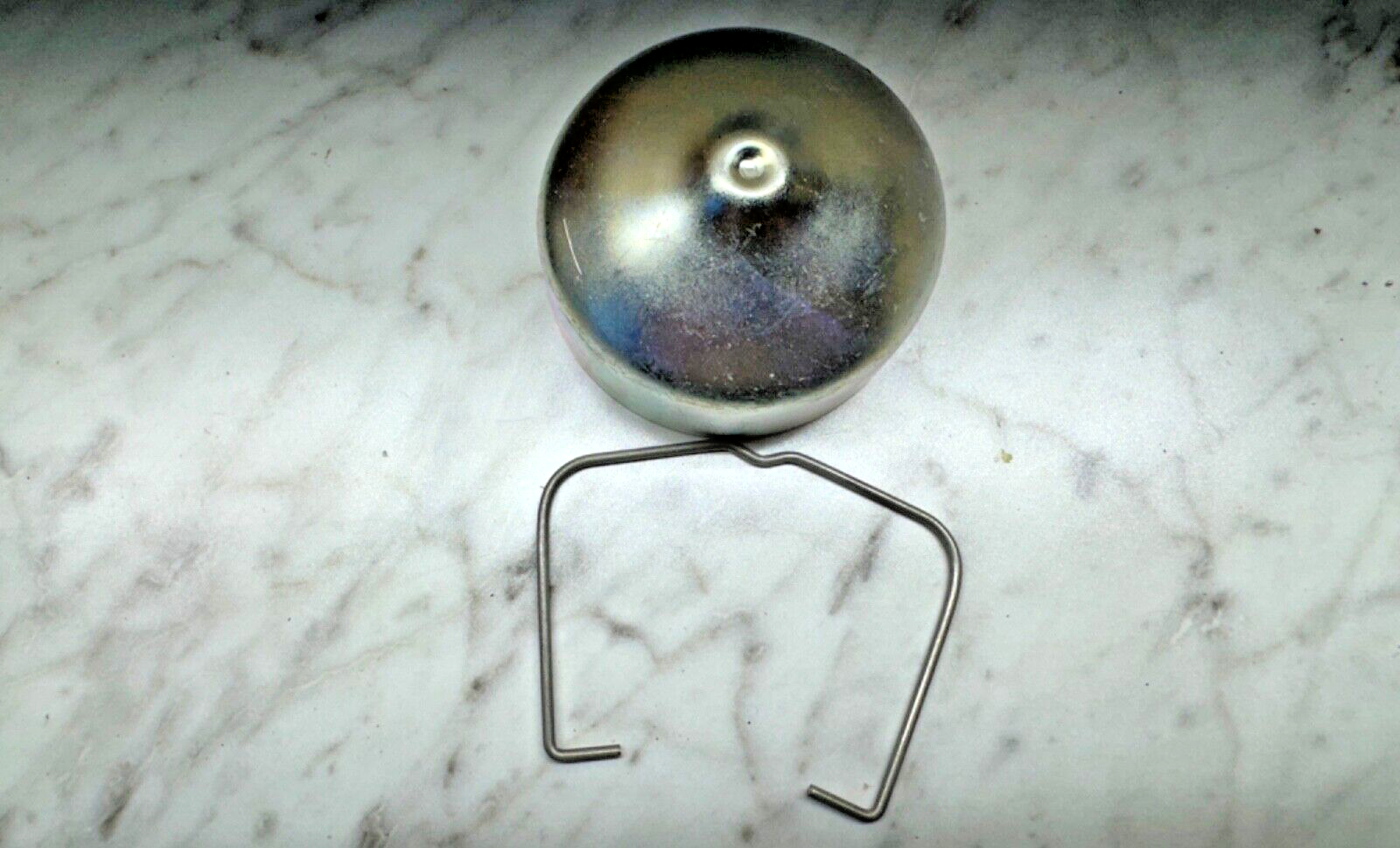

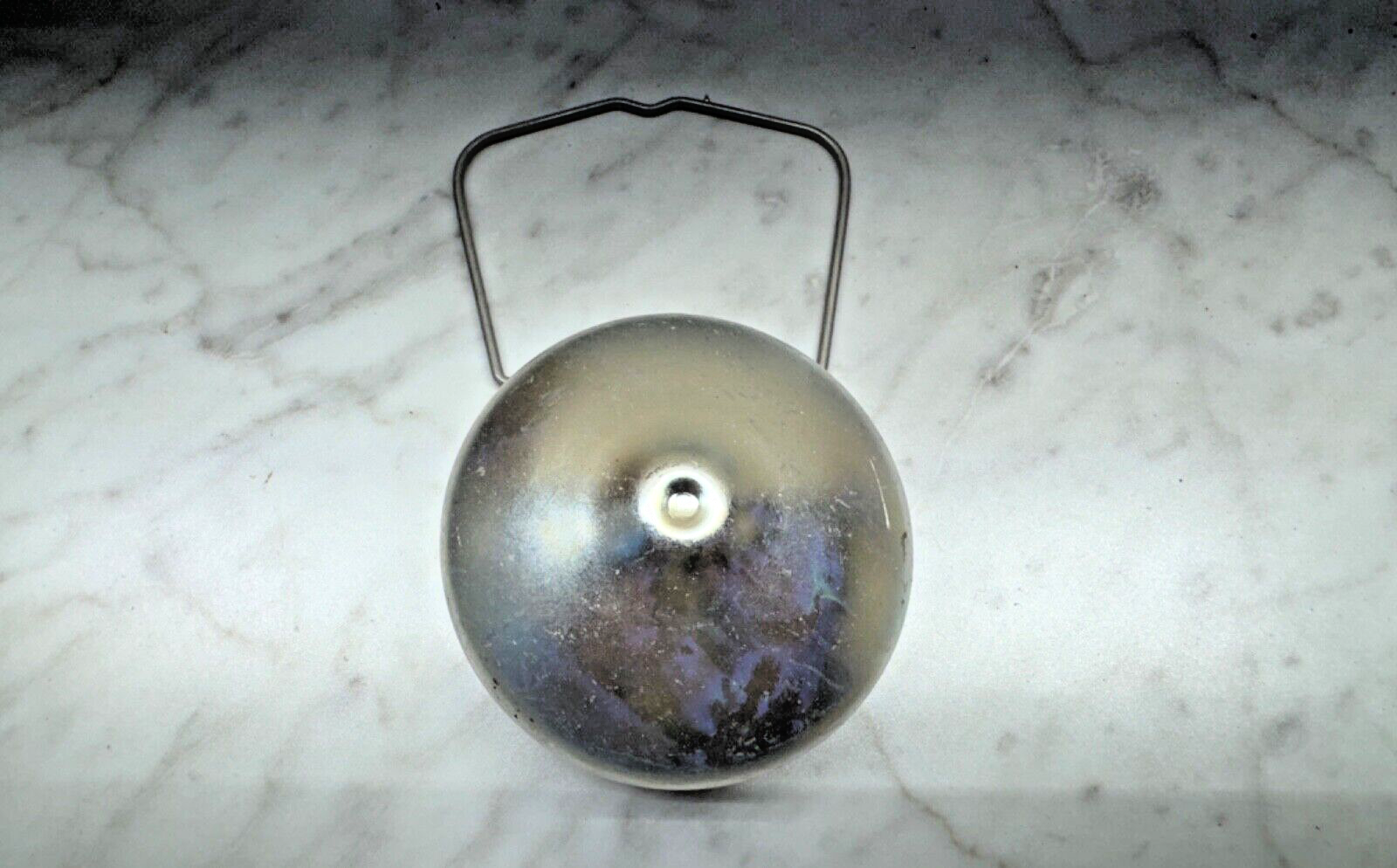

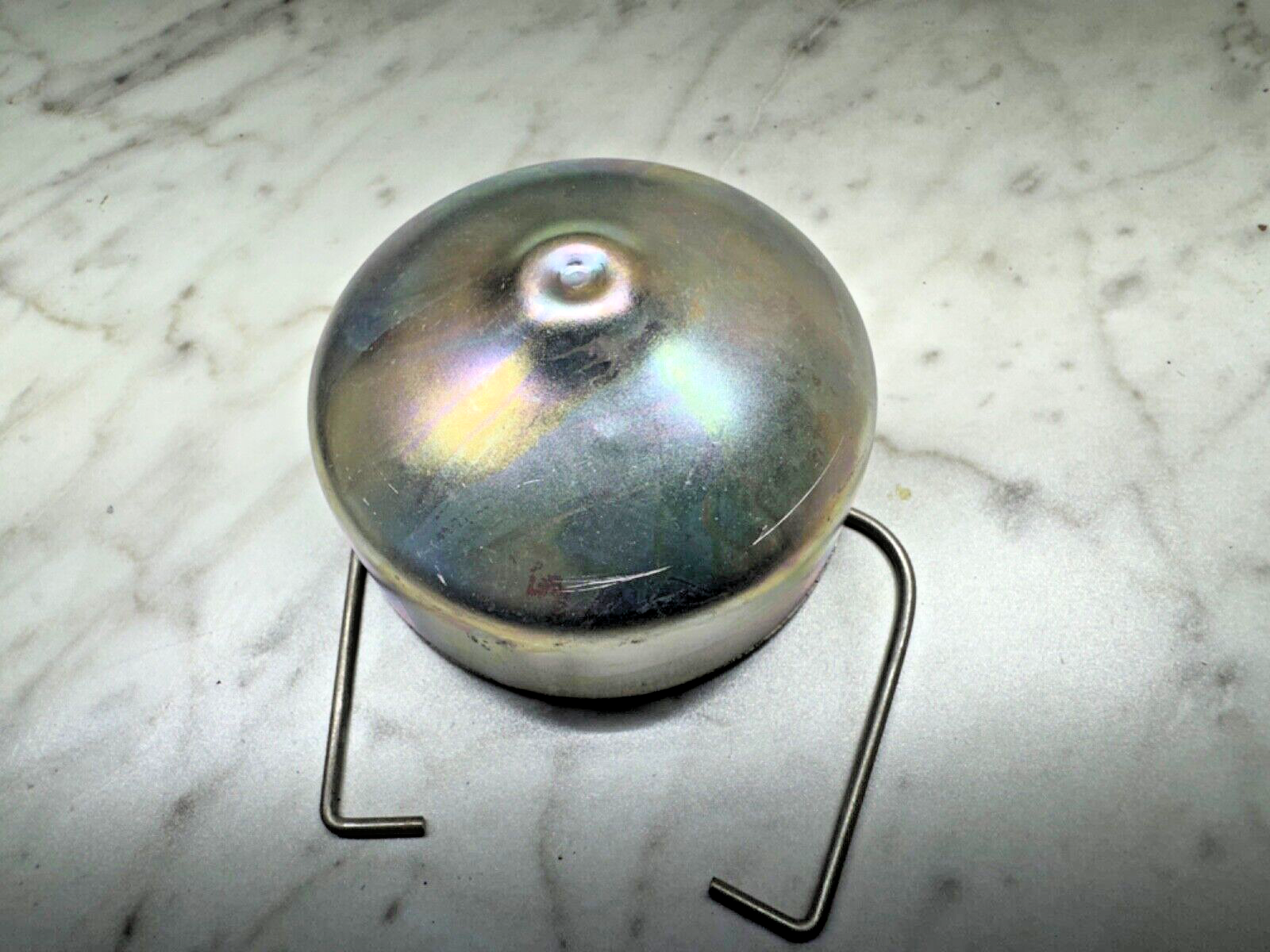

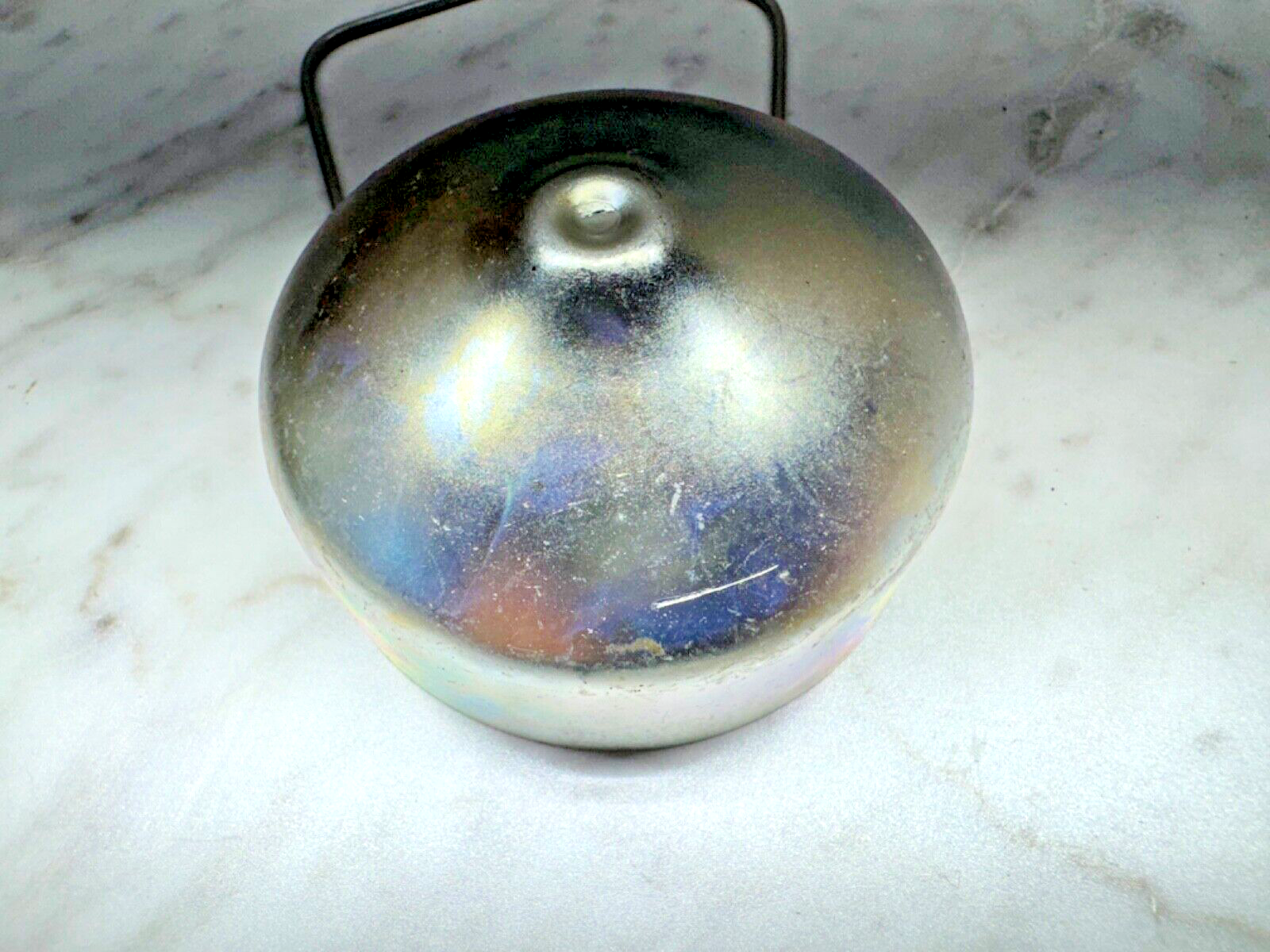

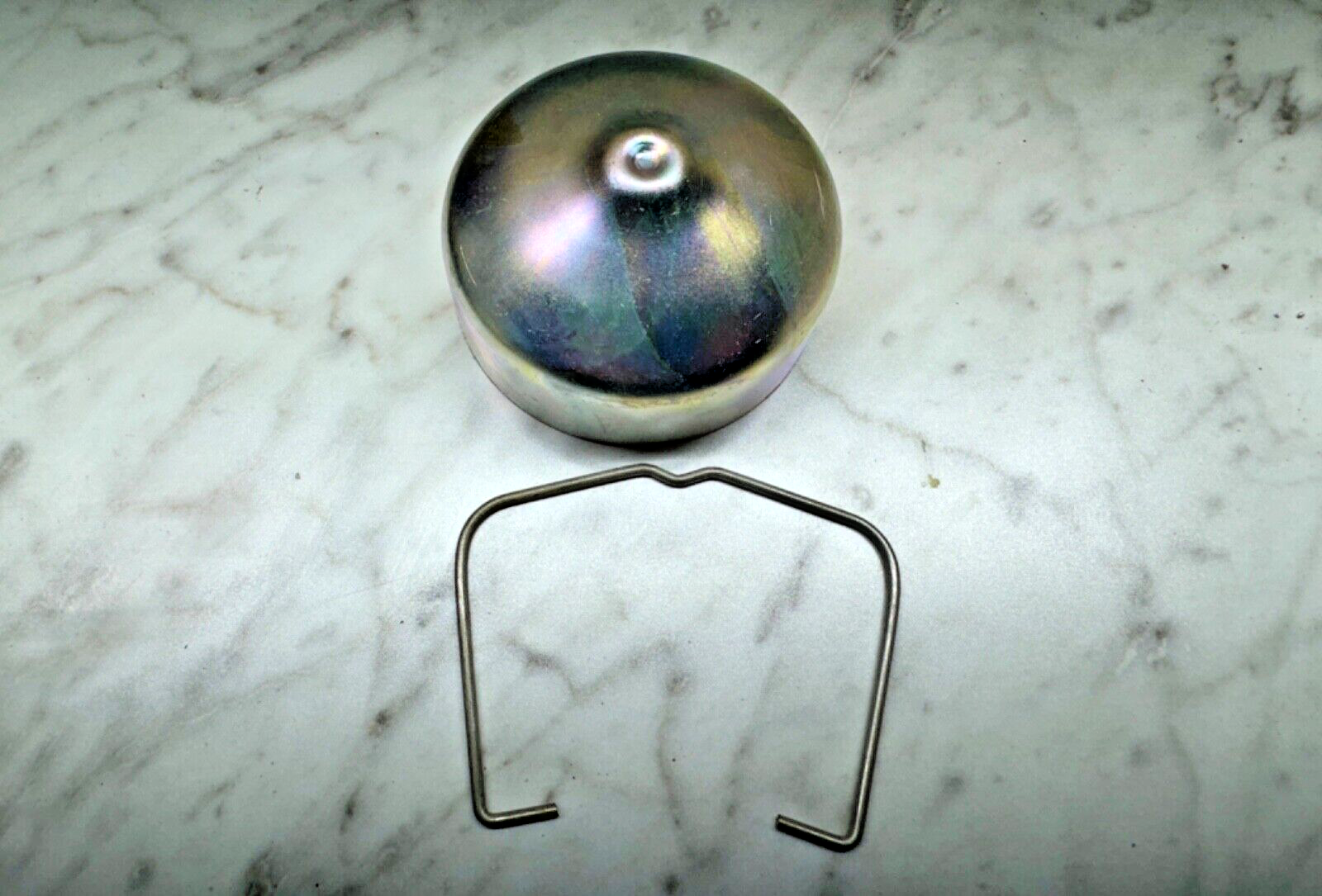

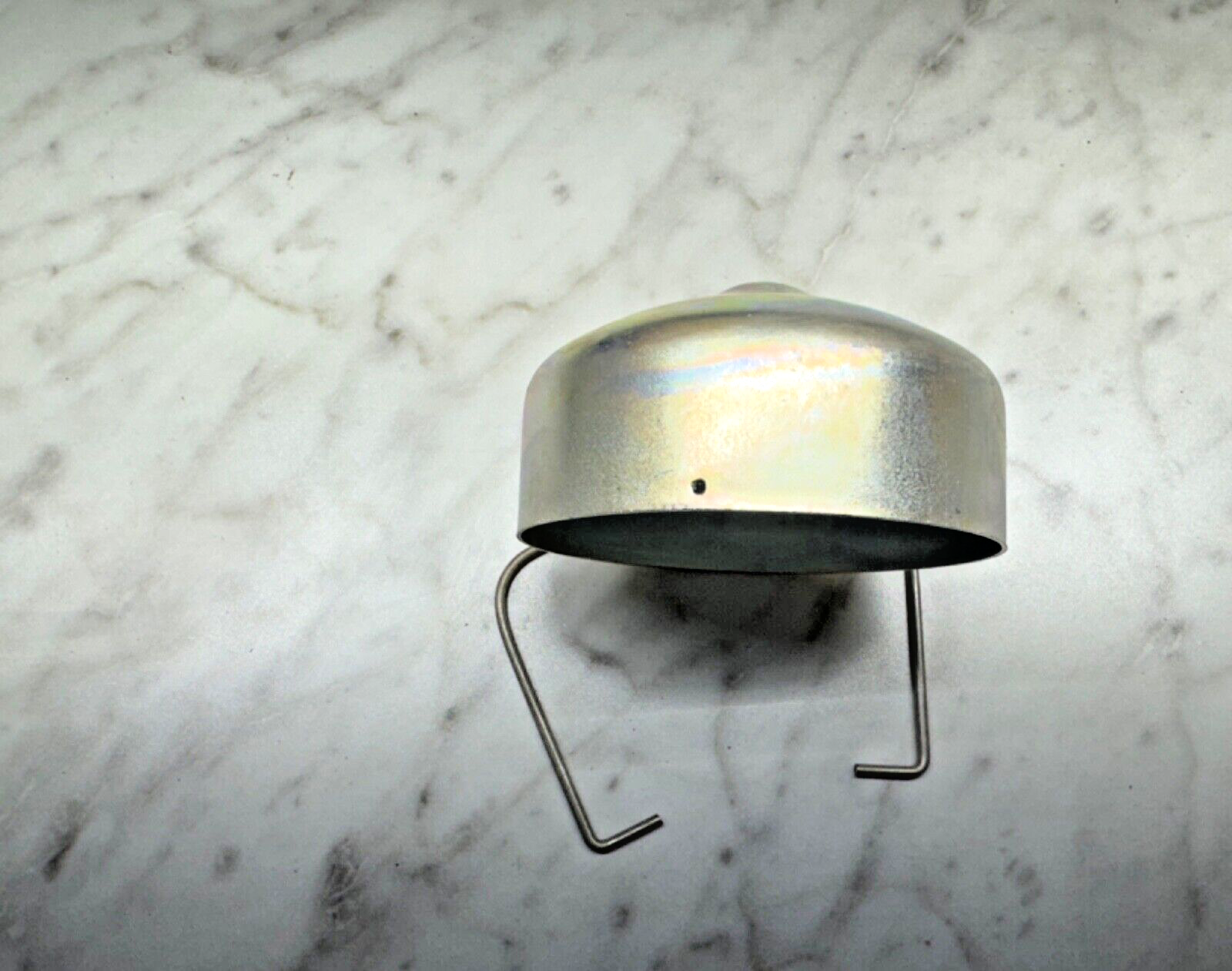

You are purchasing one European made reproduction of the timer, circuit breaker, or distributor cover for 1936-1965 Harley-Davidson twin motorcycles including Knucklehead, UL, Panhead, WL, and Servicar models.  The cover is cad plated and would have been correct for at least some of the WW-II production era on both military bikes and civilian bikes as allowed under WPA restrictions and I believe was used on civilian models without the chrome package during certain early production years.  This is production type cad plating which is authentic and not "over-restored".

The bail or clip is cadmium also.  This style cap was used on all manual advance timers into the mid-1960's.  I do believe the Servicar went to auto-advance in 1964 followed by the Panhead in 1965, and Sportster in 1966.  Please double check your Sportster or Servicar as I'm certain the Panhead changed with electric start in 1965.

We also sell these in a parkerized, stainless, or chrome finish on other listings in our store as well as complete timer assemblies, ready to run and all other parts for your timer including points and condensors as well as 18mm air-cooled spark plugs for your pre-1948 model.

Be sure to check out our store for virtually any hardware, fuel lines, oil lines, engine or transmission parts, electrical and other hard to find items you might need for any 1915-1984 Harley-Davidson motorcycle.

Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!

Used on the following:
  • 1936-1947 E, EL, ELS, F, FL, ELA, ELC 61" & 74" Knucklehead
  • 1937-1952 W, WL, WLA, WLC, WLD, WLDD 45" solo twin
  • 1937-1948 U, UL, UH, ULH, UA, ULA, USA, etc. 74" & 80" big twin flat head or sidevalve
  • 1937-1963 G, GD, GDT, GE Servicar
  • 1948-1964 EL, FL, FLH 61" & 74" OHV Panhead Hydra-Glide and Duo-Glide
  • 1952-1956 K, KK, KH, KHK 45" & 55" sport twin
  • 1957-1965 XL, XLH
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
