Harley Panhead Chain Oil Adjuster Screw Kit 1950-64 # 26383-32

Harley Panhead Chain Oil Adjuster Screw Kit 195064 # 2638332
  • Product Code: 292033353535
  • Availability: In Stock

  • $17.95


0 reviews / Write a review

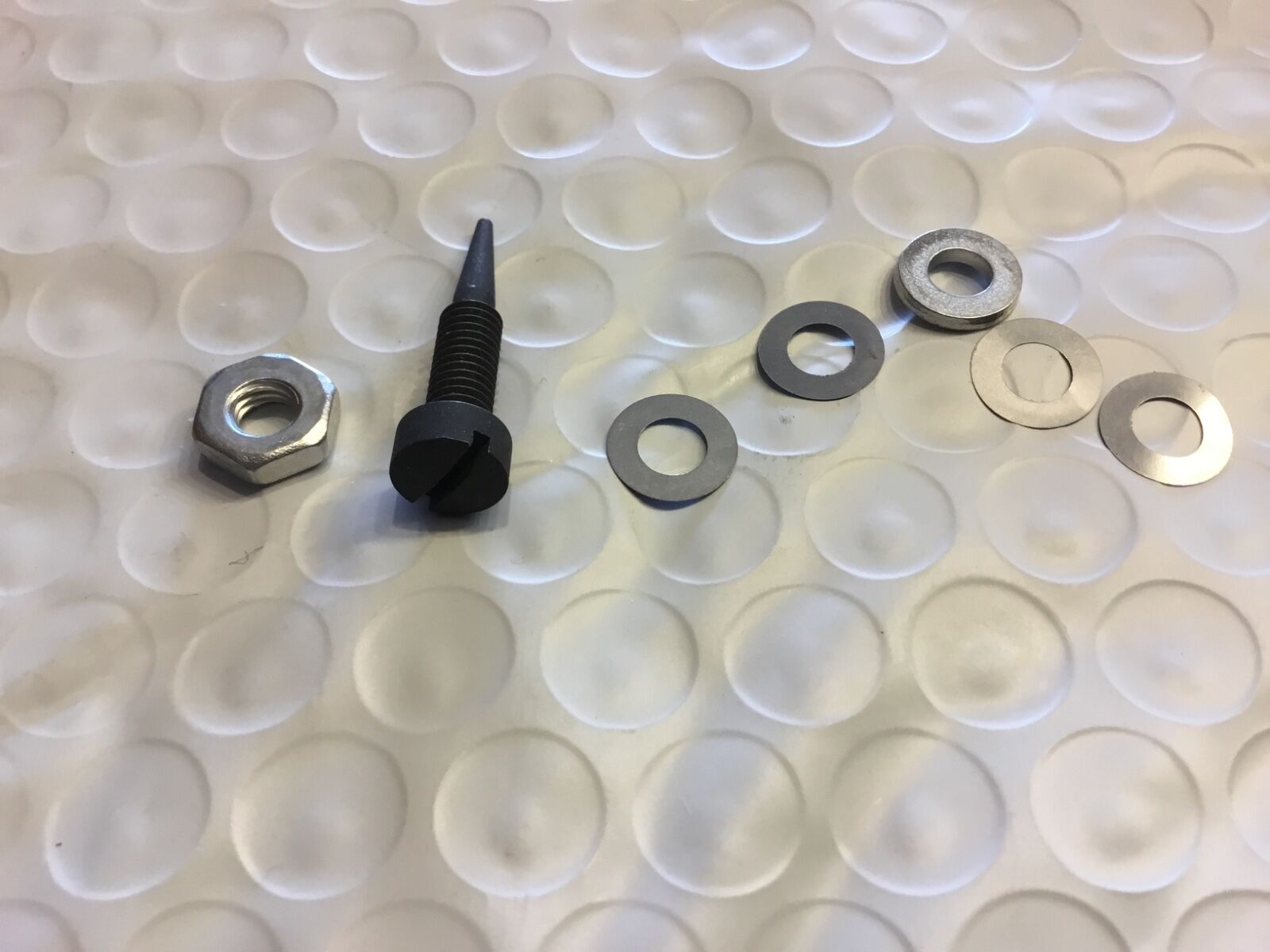

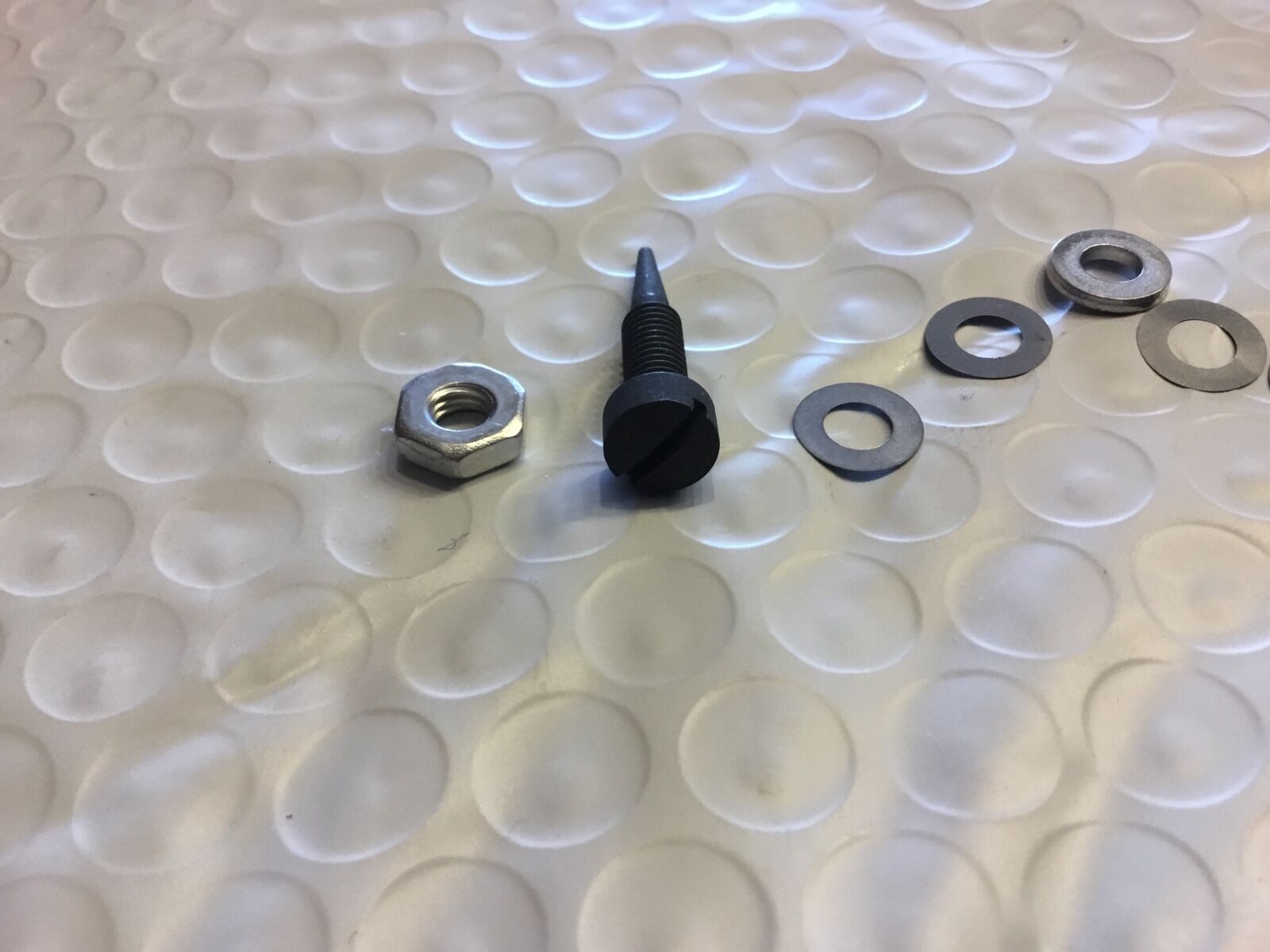

Beautiful USA-made reproduction of the chain oiler screw used on 1933 to 1969 45" solo and big twins through 1964.  Includes the needle valve, jam nut, shim washers and thick washer, exactly like the originals.  Cad plating and parkerizing is perfect.  You get what is shown in the photos and it is absolutely spot-on for the original parts.

My catalogs show that this screw kit was used on big twins through the 1964 model year.

Checking my Servicar catalogs, this particular part number still existed in 1964 and was not updated in the supplements up through 1969.  In the 1971 Servicar parts handbook this number does not appear but there was a 63610-70 chain oiler screw identified, so it's fairly safe to say this was used through 1969 though you might want to double check your own reference material.

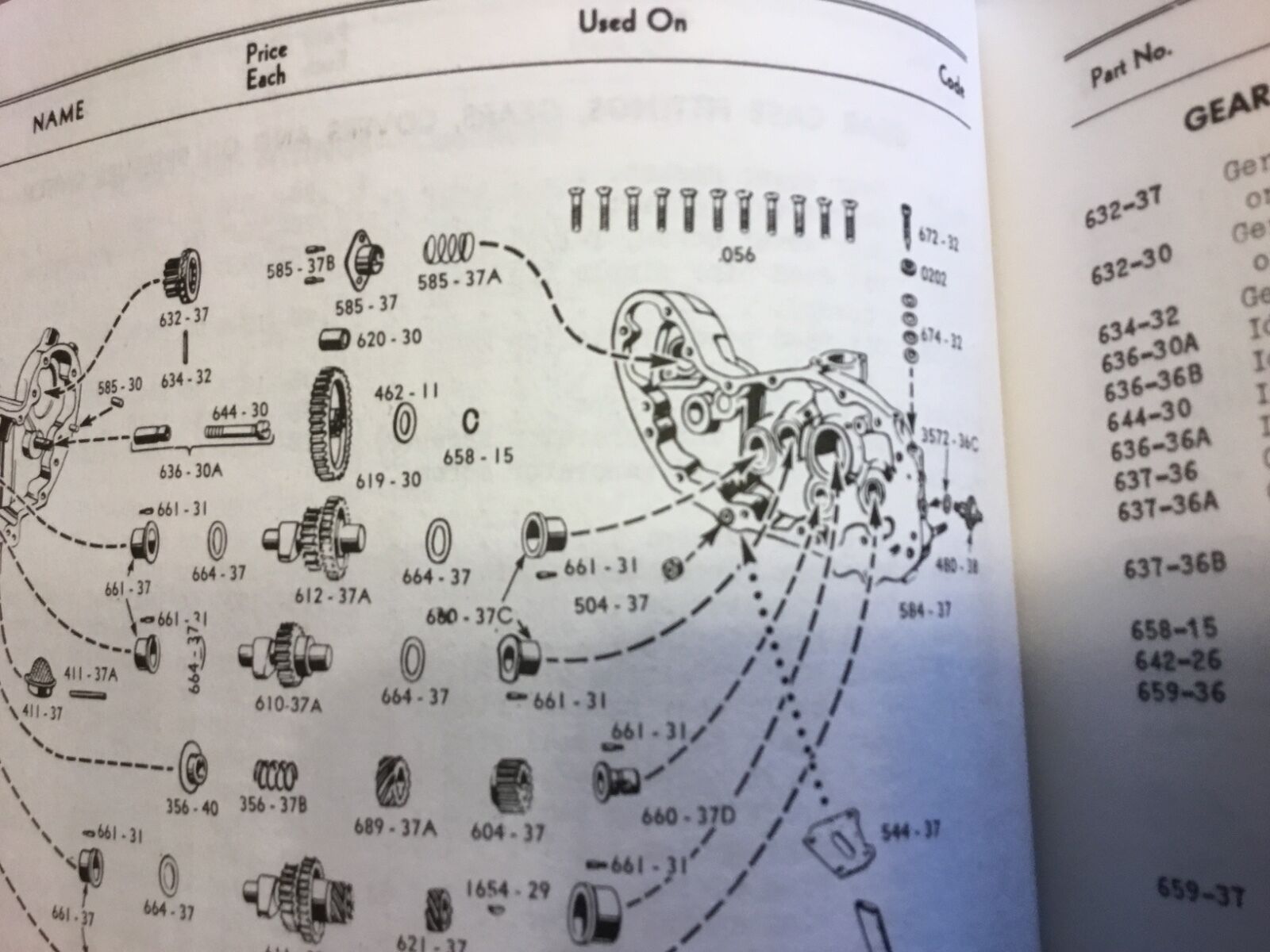

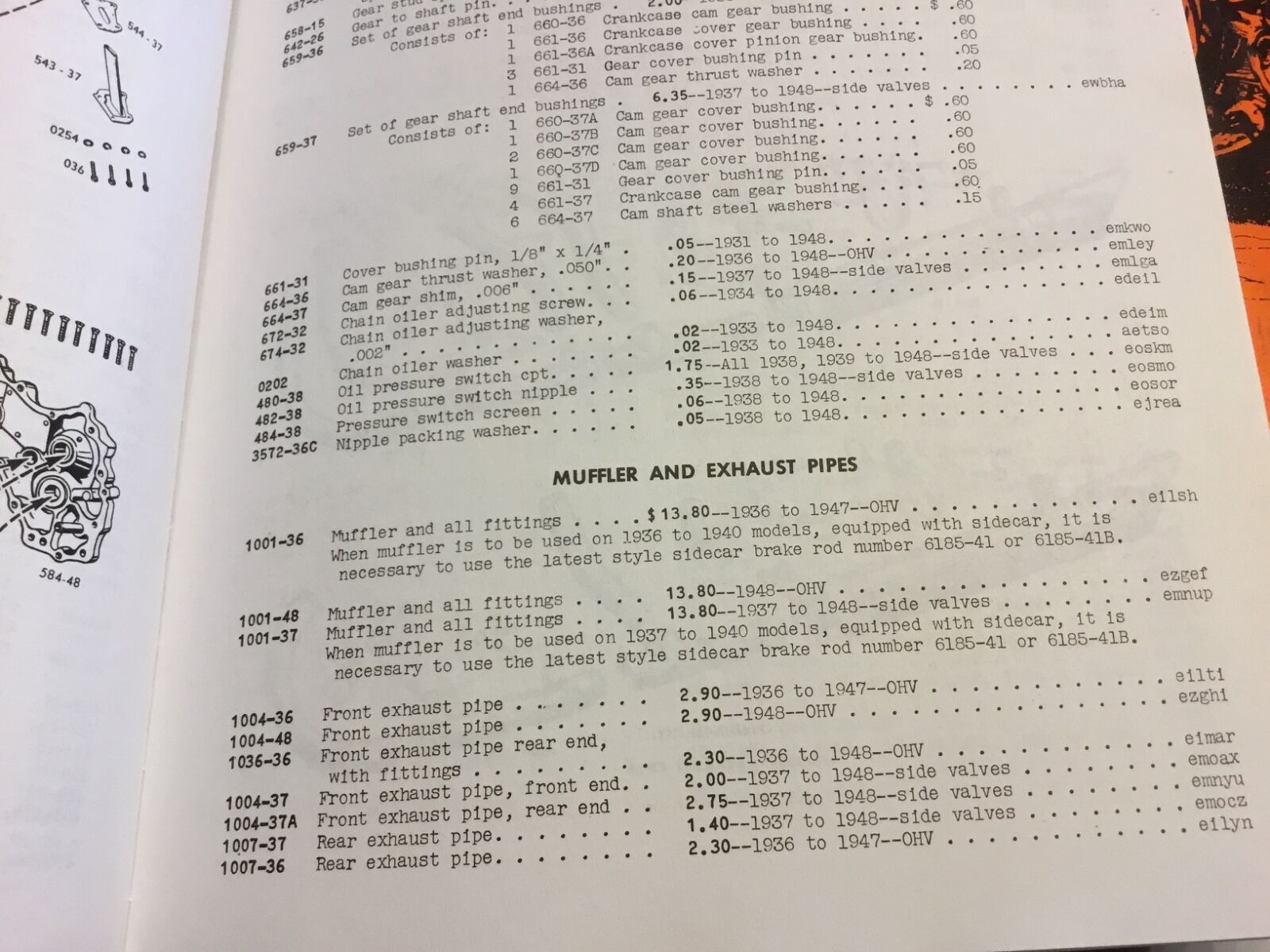

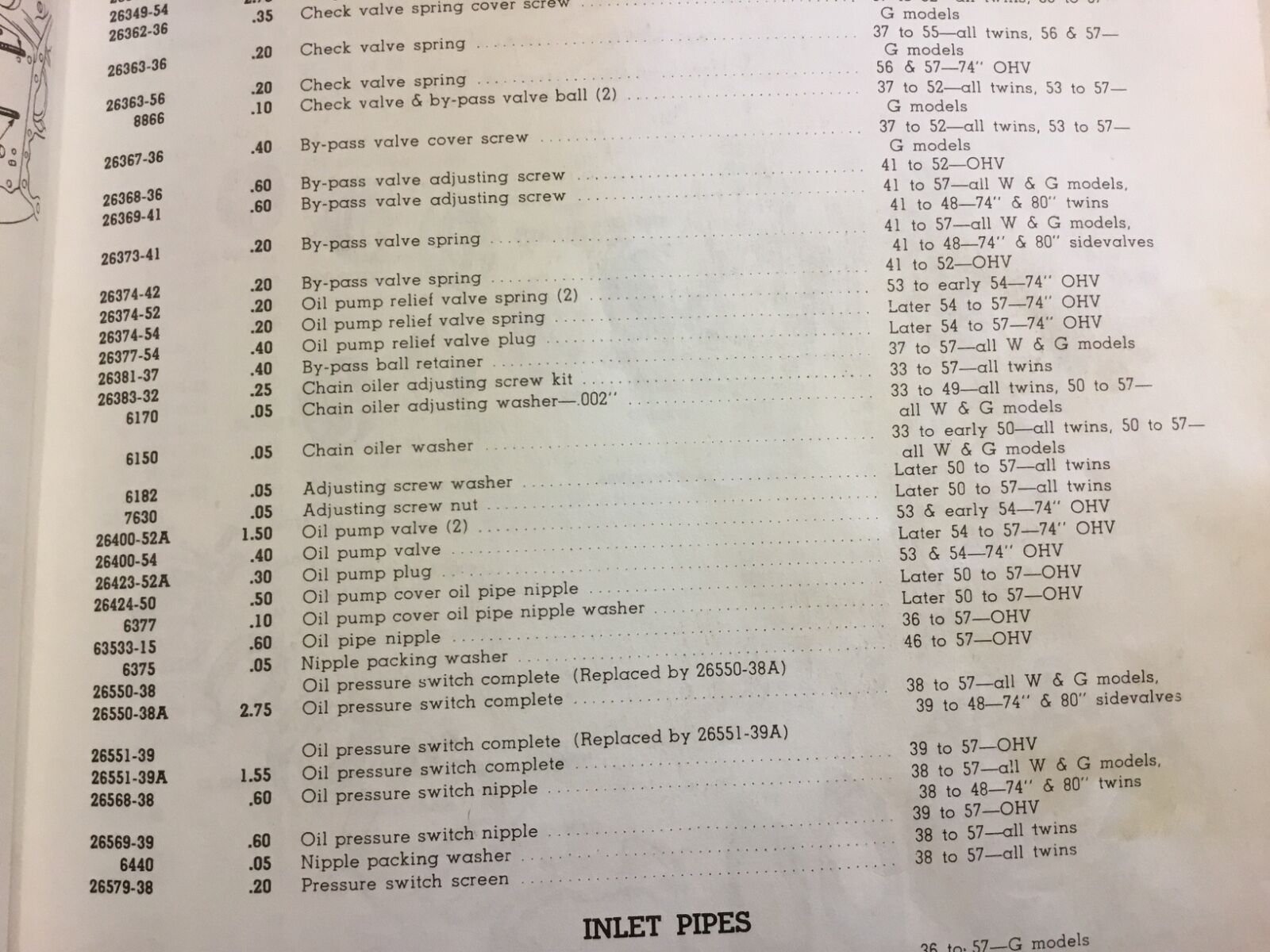

Catalog pages are to show placement of the part. You will not get a catalog page or catalog with your order.

Used on the following:
  • 1933-1969 45" solo and Servicar G, RL, W, WL, WLA, WLC, WLD, WLDR
  • 1933-1936 VL, VLD, VLH 74" & 80" big twin flathead or side valve
  • 1936-1947 E, EL, F, FL, ELC, ELA 61" & 74' OHV Knucklehead
  • 1937-1948 U, UL, UH, ULH, UA, 74" & 80" big twin flathead or sidevalve
  • 1948-1964 EL, FL, FLH 61" & 74" Panhead Hydra-Glide & Duo-Glide

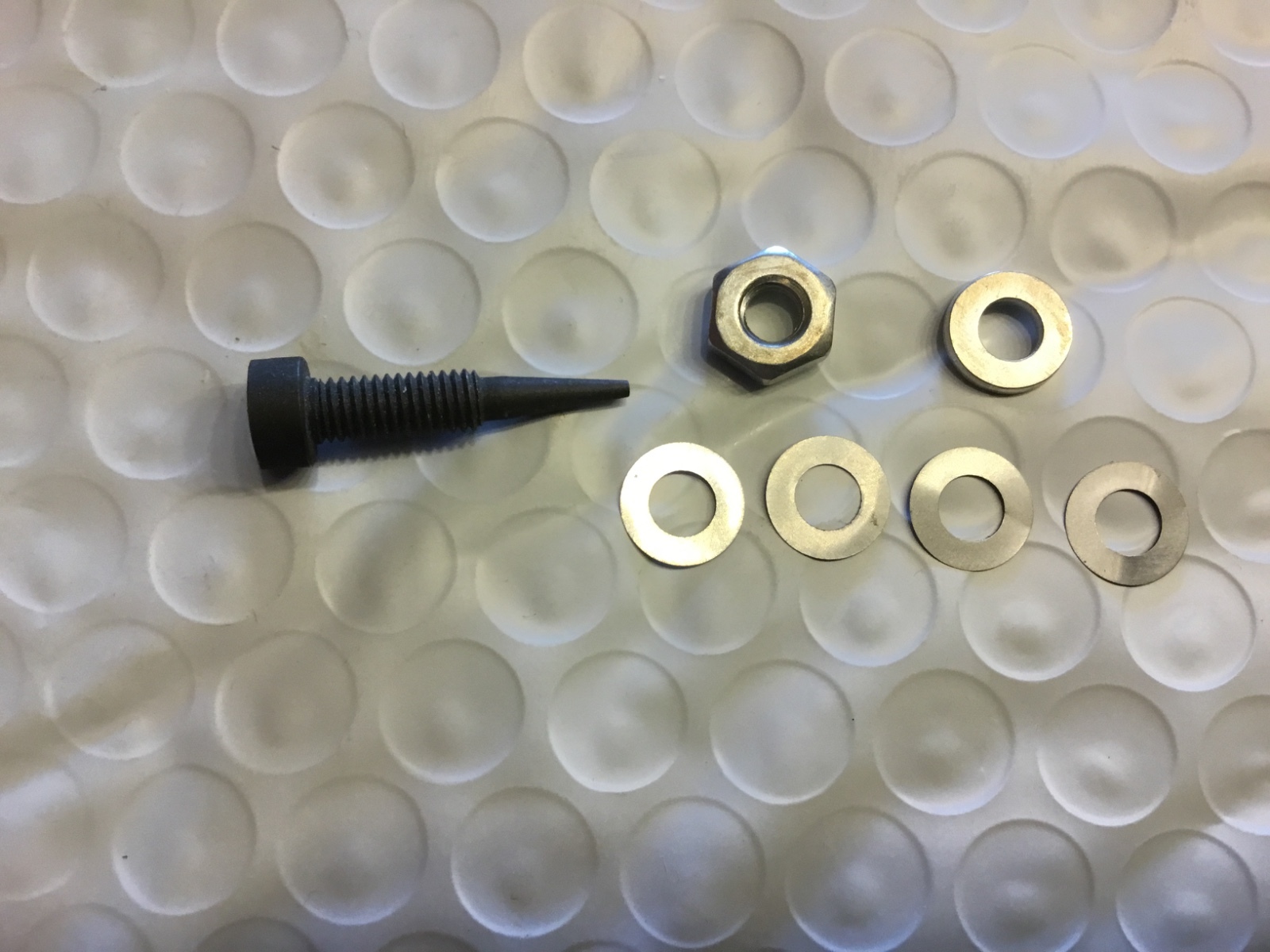

Includes the following parts:
  • 672-32 Chain oiler adjuster screw (late part# 26383-32) 1 ea.
  • 674-32 Chain oiler adjusting washer .002" (late part# 6170) 4 ea.
  • 0202 Chain oiler washer (late part# 6182) 1 ea.

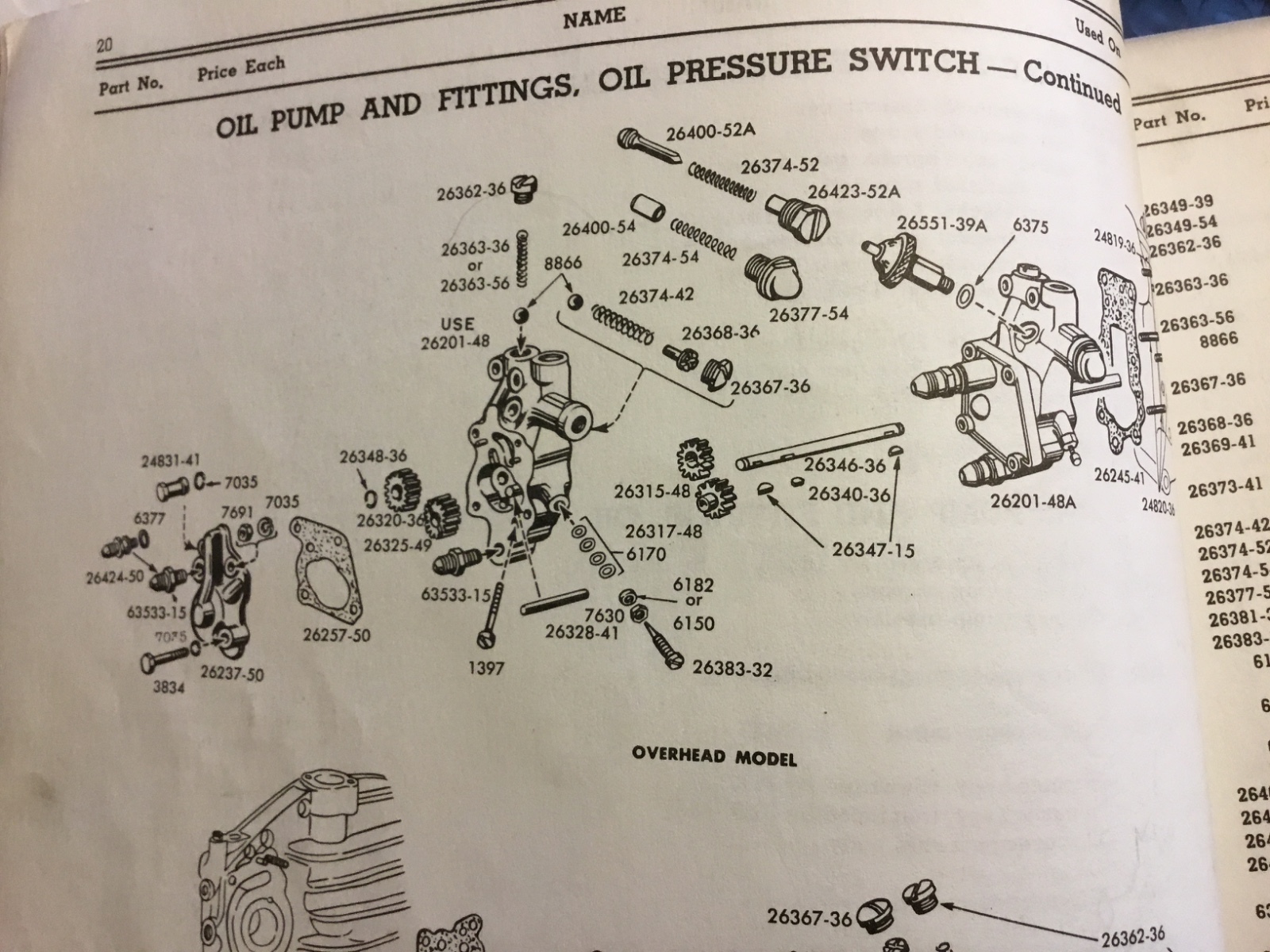

  • 7630 Jam nut- note this only appears in parts catalogs AFTER 1950, (page from 1954 catalog is shown above) so I can find no evidence this nut was ever used prior to 1950 or on any 45 models until much later
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

We carry a very comprehensive selection of restoration quality Harley-Davidson hardware including CP-1035 & CP-1038 bolts wire loom clips, brackets, and all sorts of detail items for 1915 to 1984 Harley-Davidson motorcycles, we also carry complete oil and fuel line kits for your 1936-1937 Knucklehead or UL.  If you don’t see what you need, just send us an email.  I can ship this in a padded envelope via first class mail or postal priority, your choice.

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
