Harley Shovelhead Head Bolts 66-76 Cad Plated Panhead FLH FX CP-1038 HD#16814-48
- Product Code: 352209130848
- Availability: In Stock
-
$53.95

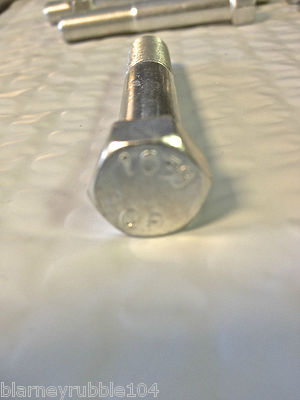

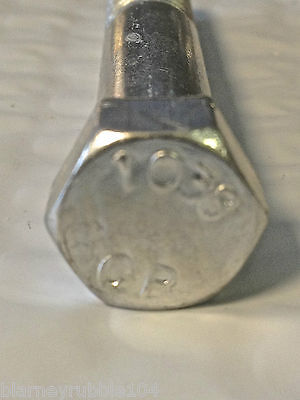

Spot-on American-made cad plated CP-1038 head bolts for 1966 to 1976 FLH and FX Shovelhead models. Correctly heat treated and machined just like the originals, these are stamped CP 1038 on the bolt head. Not certain what year H-D would have changed from CP-1038 bolts but structurally, and finish-wise these are correct to 1976. In 1977 H-D changed to a bolt head with integral washer. I would think H-D used the Chandler Products bolts until at least 1969 or 1970 as those bolts did appear in other places on Shovelheads and Sportsters in that time-frame.
There seems to be some misinformation on CP bolts and "reproductions". Chandler Products has always been willing to produce these bolts with large minimum quantity orders. There's either early production or current production. They changed head dies as they wore out and had multiple dies. Top mount bolt and all nuts are USA made using the same process Harley used when they operated their own screw and nut equipment with the flat lands on them.
Spacers and washers are produced just like the ones H-D did back in the day. Cad plating is same finish as how these came from the factory in the 1950's. I've also got other hardware kits listed in my store under "pre 1980's hardware" including a CP-1038 gas tank and oil tank mounting kit which would go great with this.
Used on the following:
- E, EL, FL, FLH OHV 61" & 74" Panheads from 1948 to 1965.
- FLH OHV 74" Shovelheads from 1966 to 1976. Can be used later, in 1977, HD changed to an integral head bolt. Not sure how late the CP 1038 markings would be "correct" for a Shovelhead.

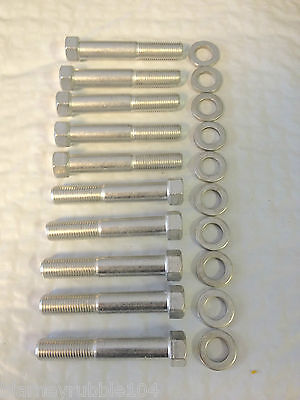

These are 7/16" x 20 x 2 9/16" bolts.
I do have accurate reproductions of the plain head parkerized Knucklehead head bolts as well as CP-1035 head bolts, both the '36 to '39 variety and '40 to '47 Be sure to take a peek at all the other hardware I've got for Knuckleheads, flatheads, and Panheads. If you don't see what you need, or if you have bulk hardware needs, just let me know I might be able to help out.
