Harley Springer Upper Lower Deluxe Horn Headlamp Bracket Kit 46-48 Knucklehead
- Product Code: 294679666852
- Availability: In Stock
-
$99.95

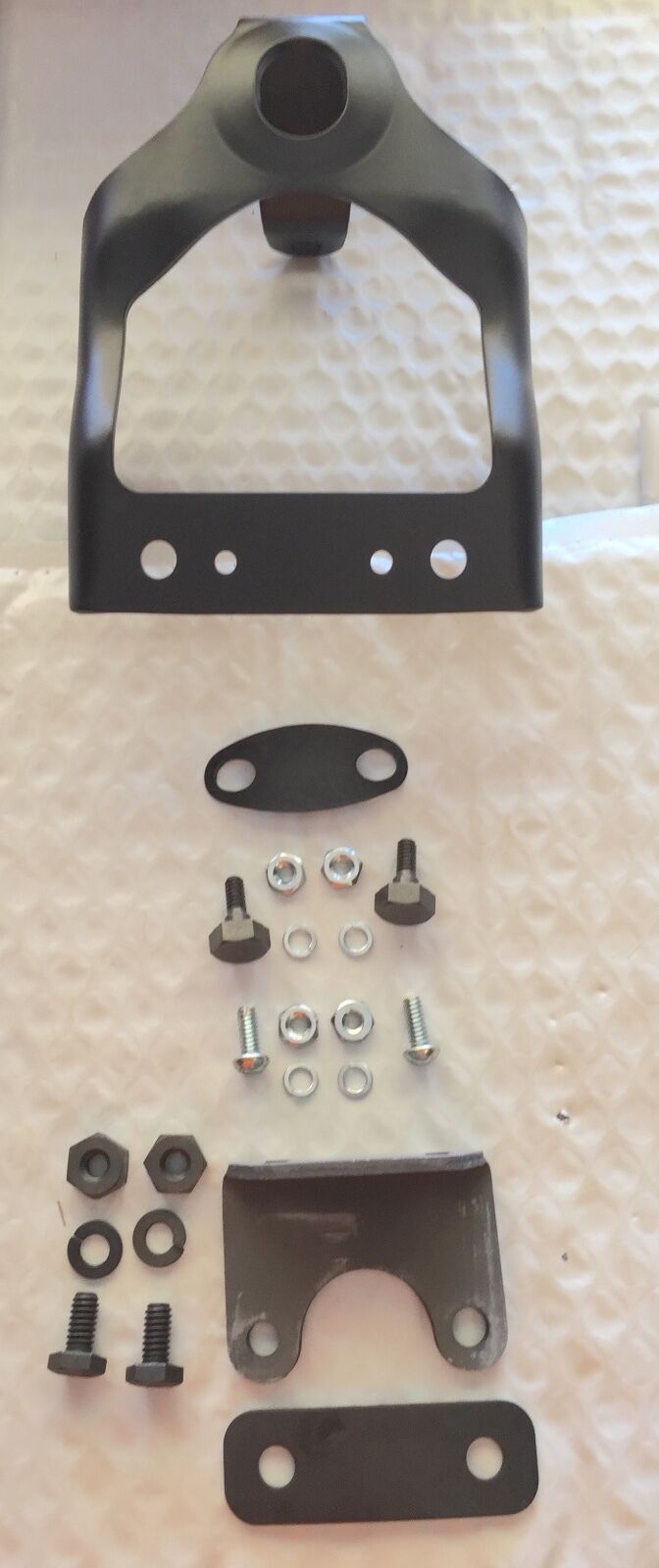

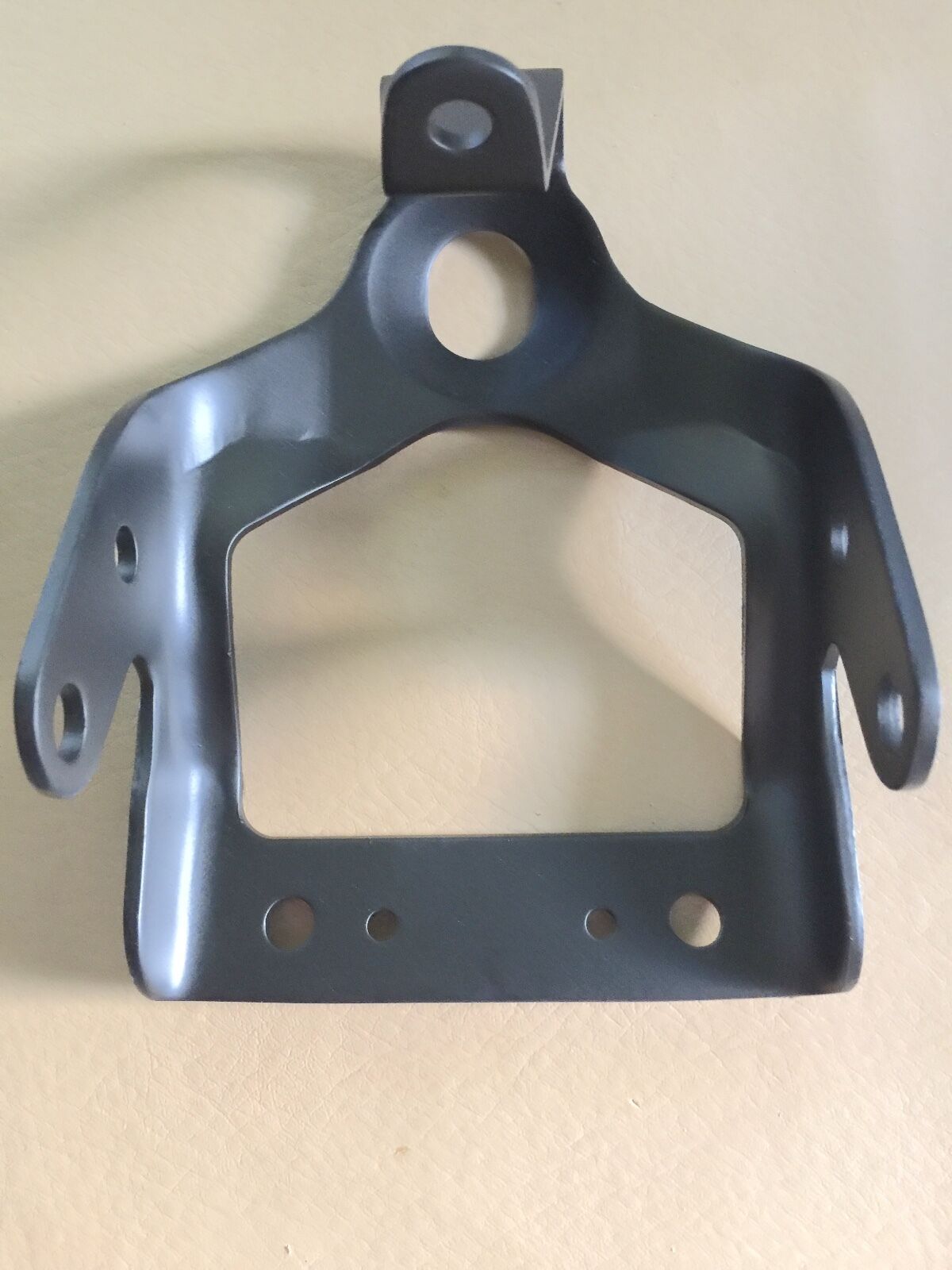

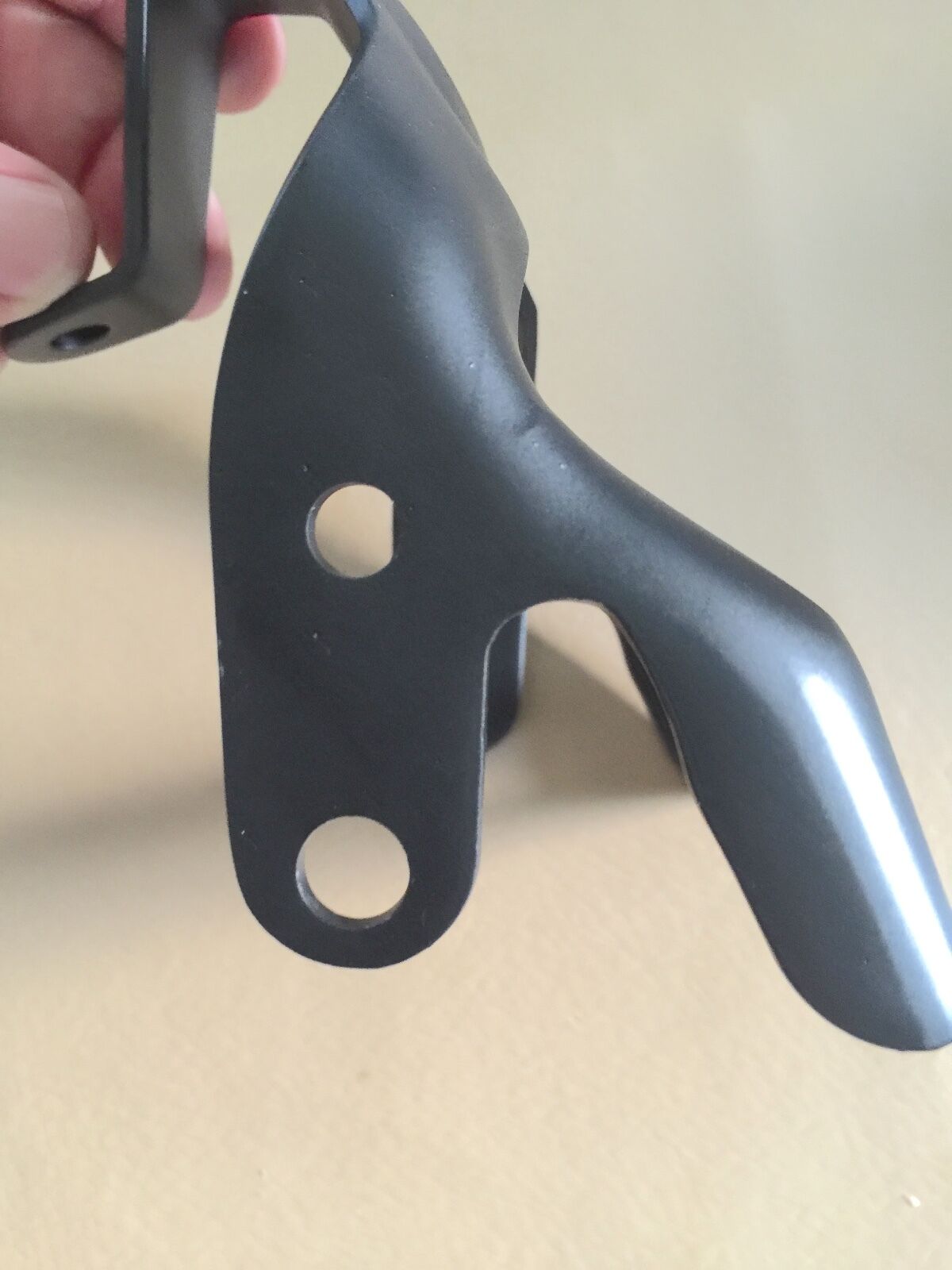

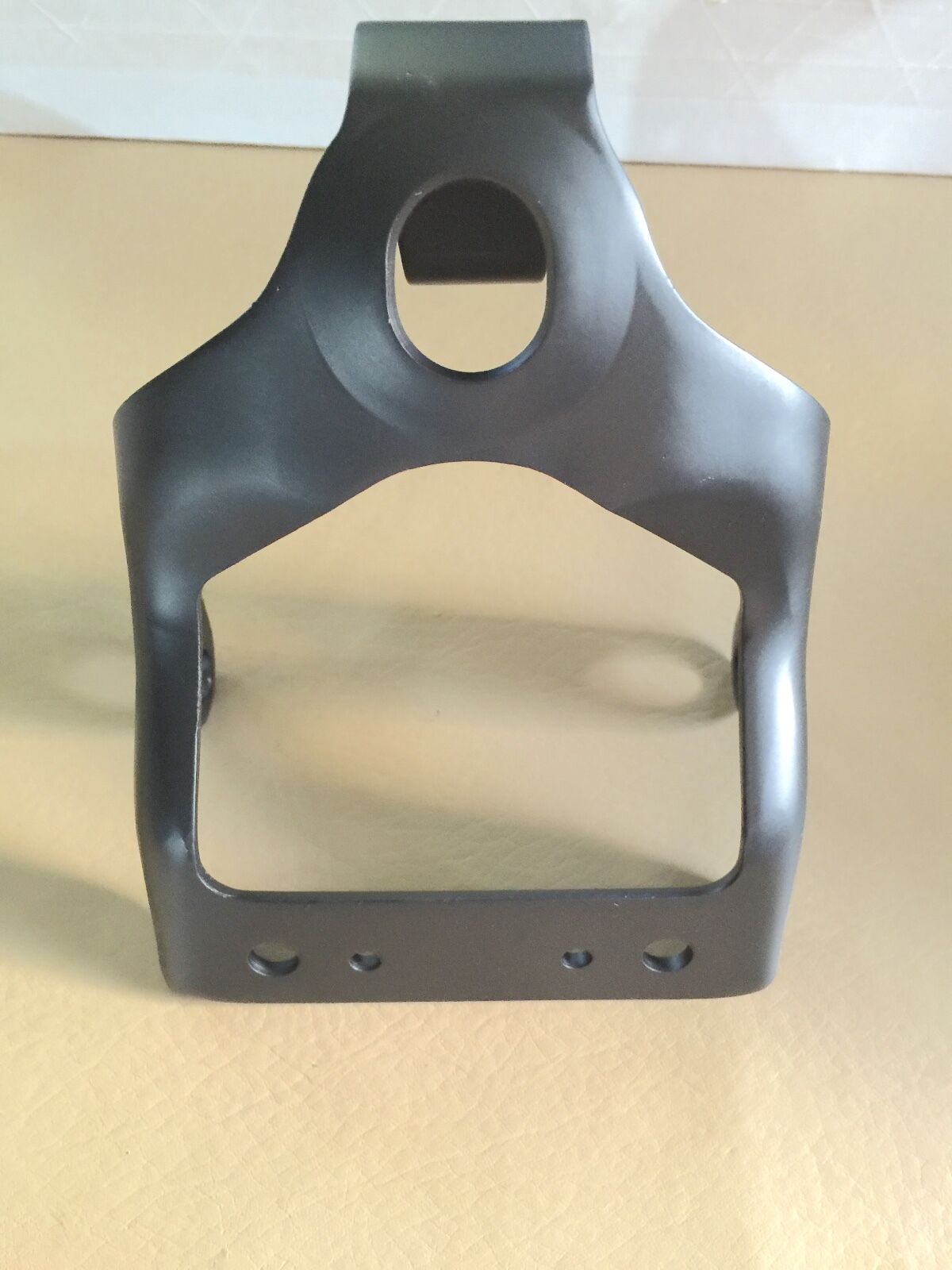

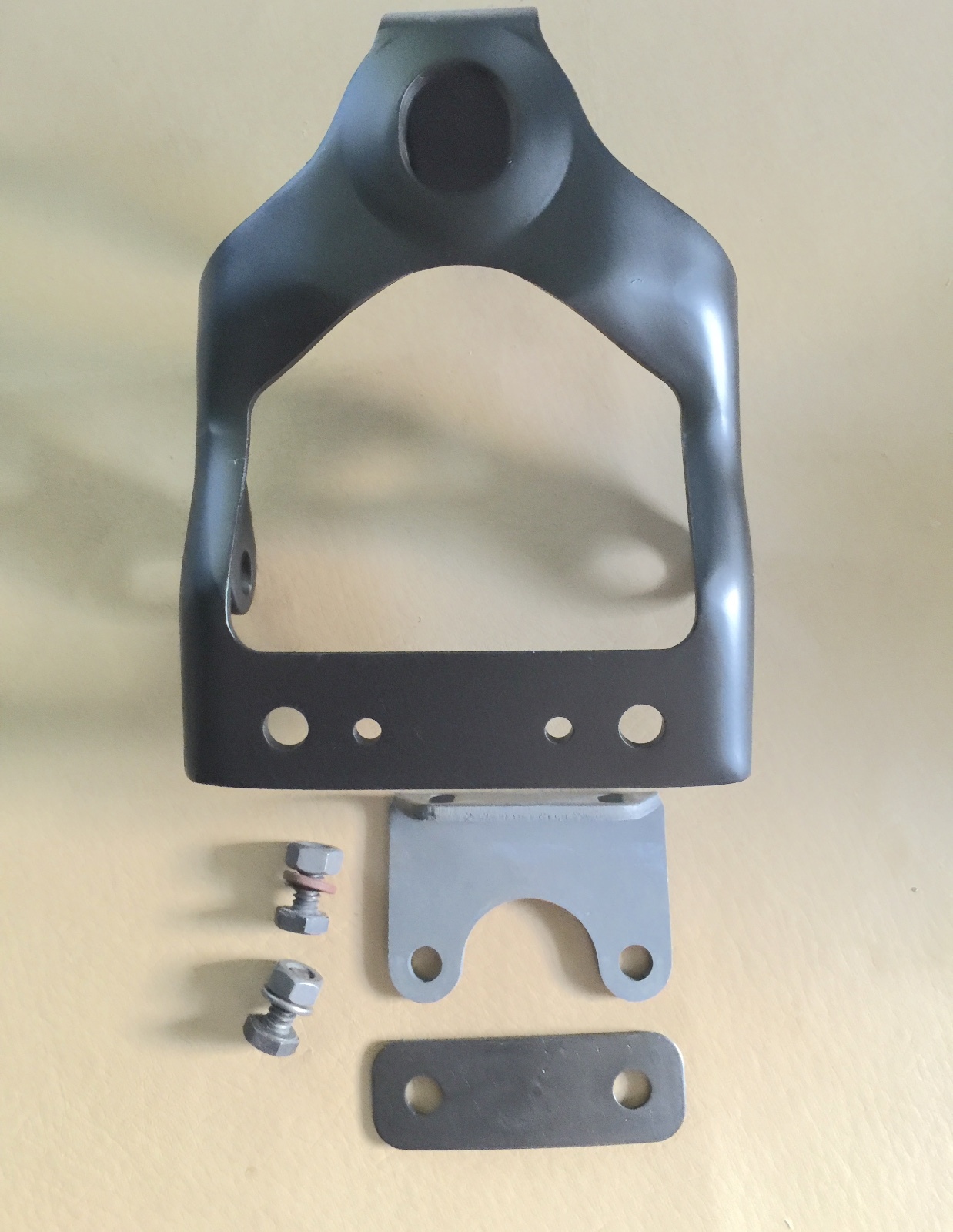

Excellent reproduction of 69120-45 lower horn mount plate and upper horn mount and headlamp mount 67810-36 “Type 2” the earlier style with four terminal mounting holes. This was used on all big twin models from 1946 to 1948, including Knucklehead, Panhead, and UL big twin flathead. This is for bikes equipped with the hydraulic shock assembly introduced for the 1946 models to replace the old adjustable friction ride control. Also used on some 45” models from 1946 to 1957 including W, WL, WLD, early WLA, G GE Servicar models. The parkerizing is beautiful on the lower bracket and these are made just like the originals, finish on the upper bracket is a low gloss or matte black. I have the earlier style mounts on separate listings.

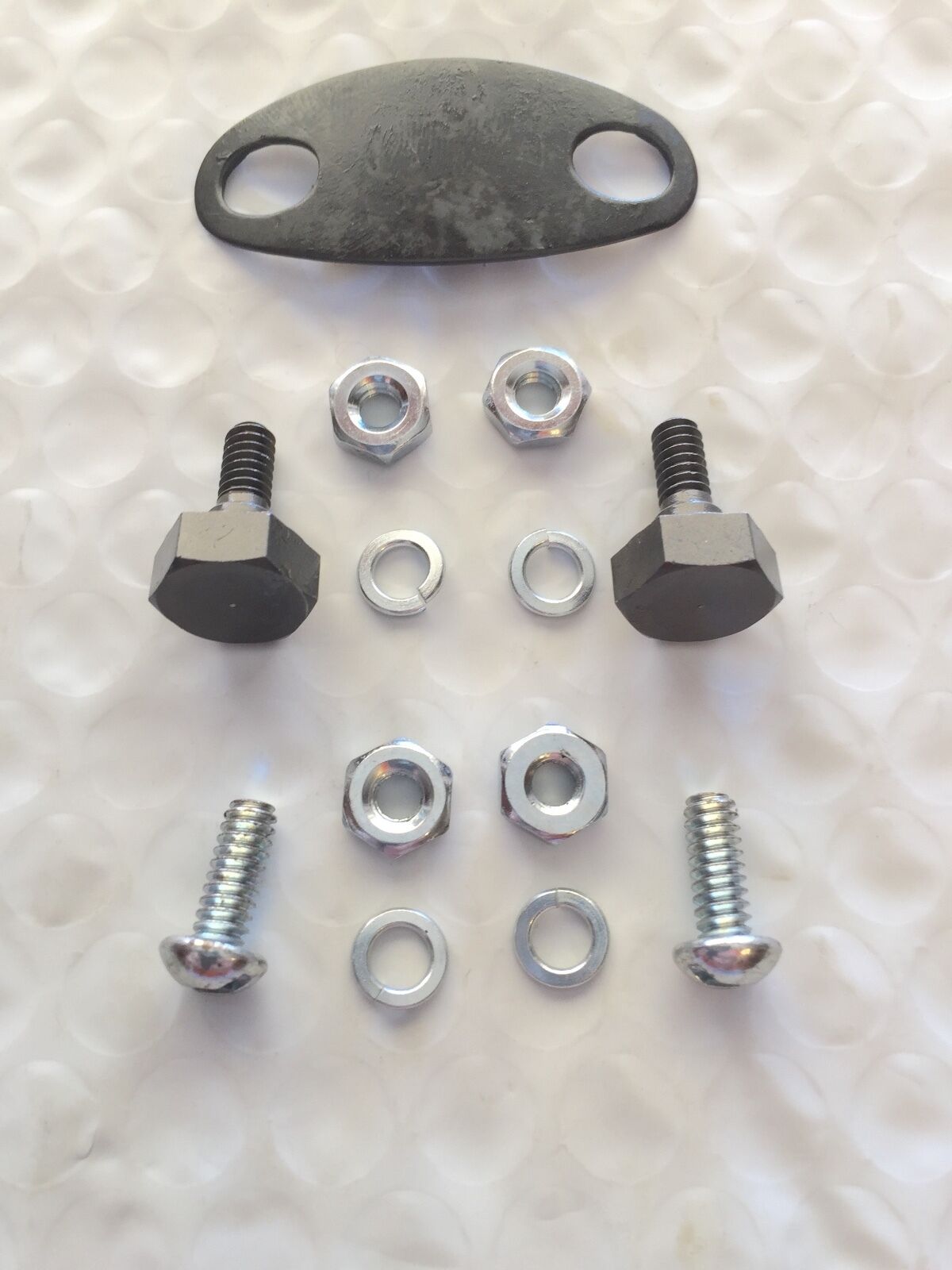

This includes all the horn mounting hardware and spring plate to mount the Delco 16 “dog bone” bracket style horn with the upper and lower brackets.
I have the upper and lower brackets on their own listings if you need just one part or the other. If you have trouble finding it, just let me know.

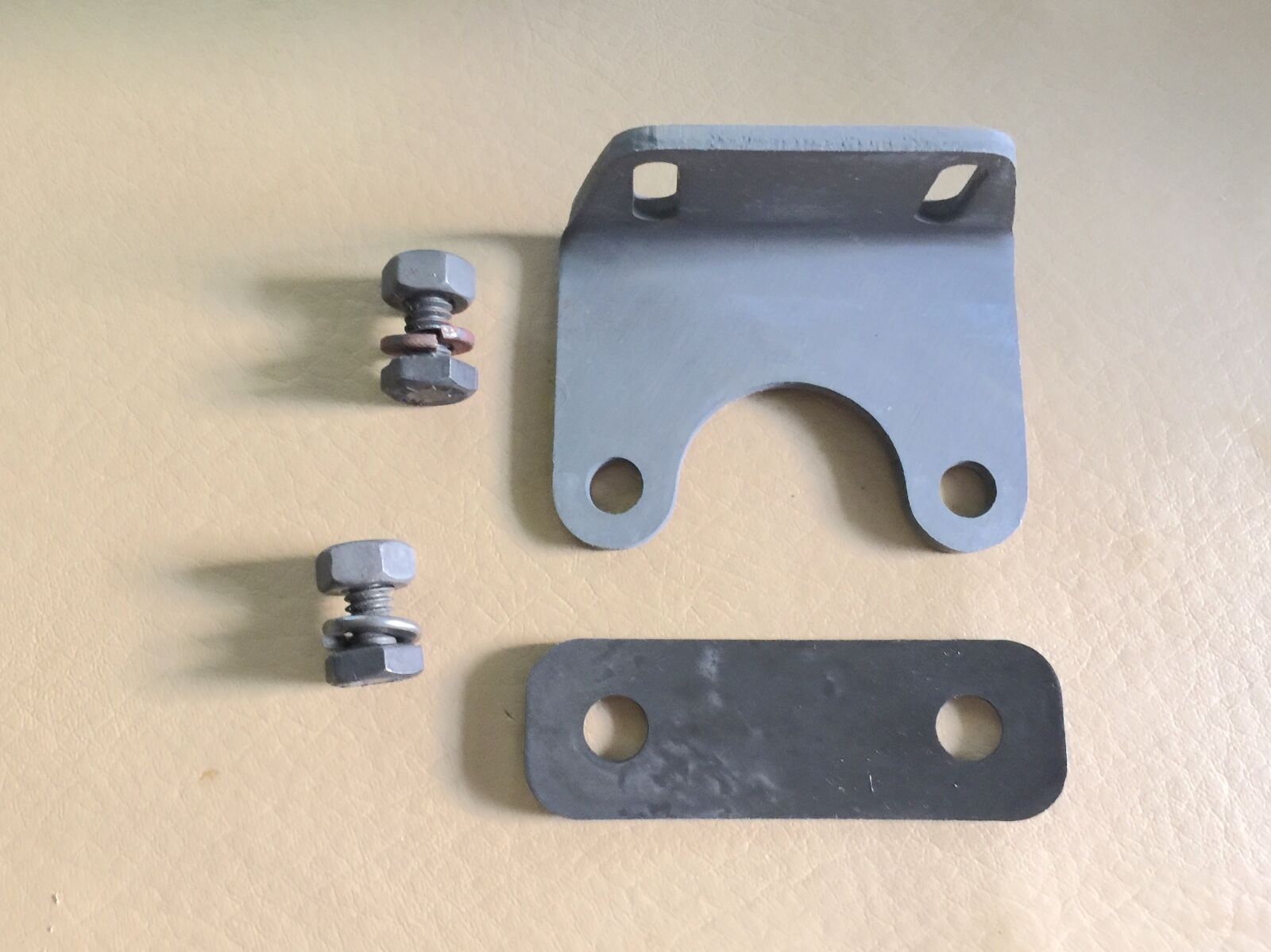

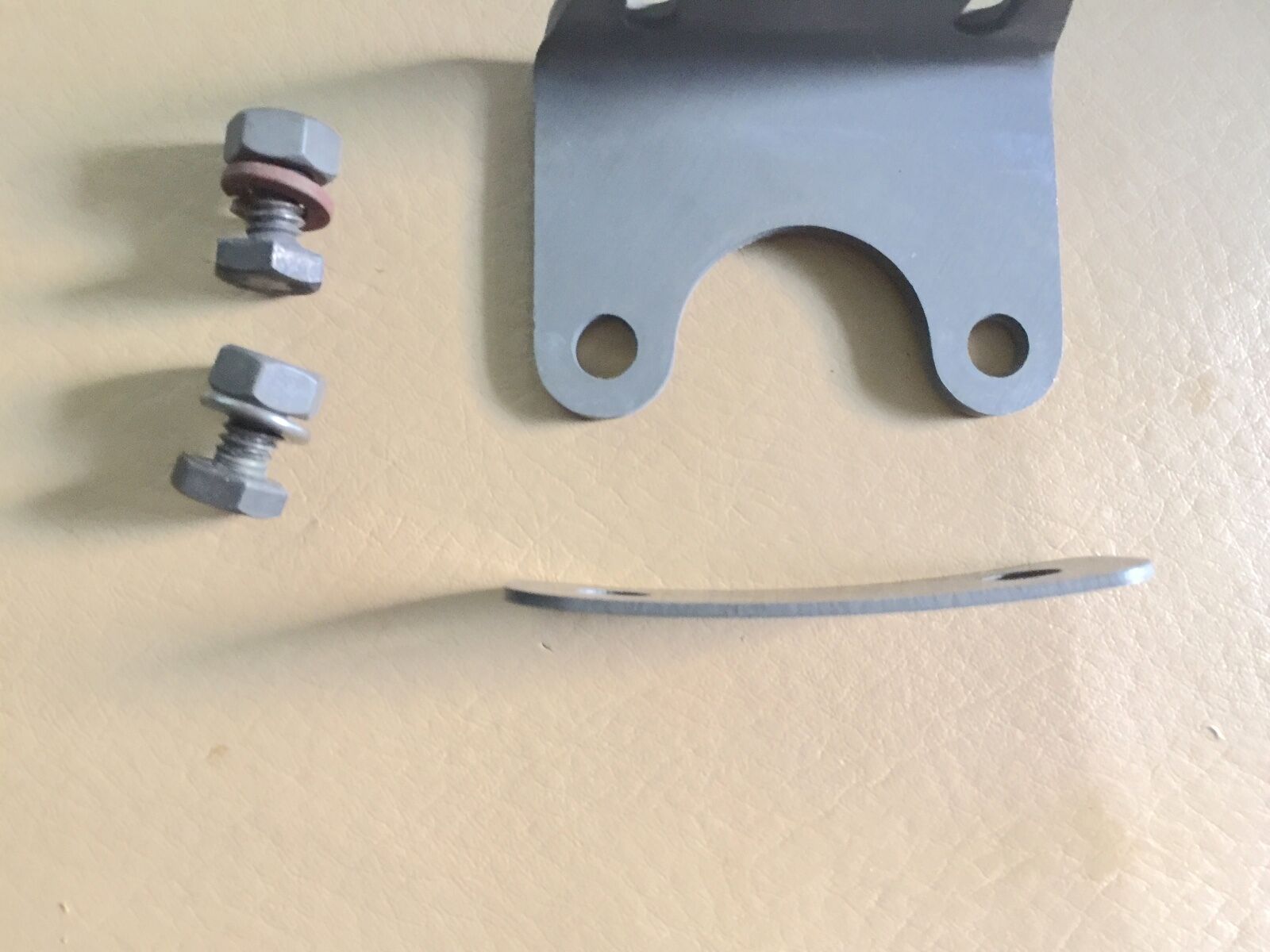

Includes lower mount plate, fender reinforcement plate as well as hardware to mount this to the fender, these are hex head fasteners. Does not include hardware to mount horn to plate. I also have the upper plate on a separate listing. We have added quite a bit of parkerized and cad plated plain head and CP-1035 & CP-1038 bolts to our store offerings. Don’t see what you need? Just ask chances are, we have it.
Used on the following models:
- 1946-1948 E, EL, F, FL, 61” & 74” OHV Knucklehead & Panhead
- 1946-1948 U, UL, UA, UH, ULH 74” & 80” big twin flathead
- 1946-1952 W, WL, WLD, WLA, 45” Solo (check your research material for use on WLA models)
- 1946-1957 G, GE Servicar 45"
I am stocking other horn mount parts. Please keep checking back or simply email me for a package deal on multiple items.
