Harley UL 1938 Premium Wiring Harness Kit W/ Correct Soldered Wire Terminals

  • Product Code: 354384318882
  • Availability: Out Of Stock
  • $189.95

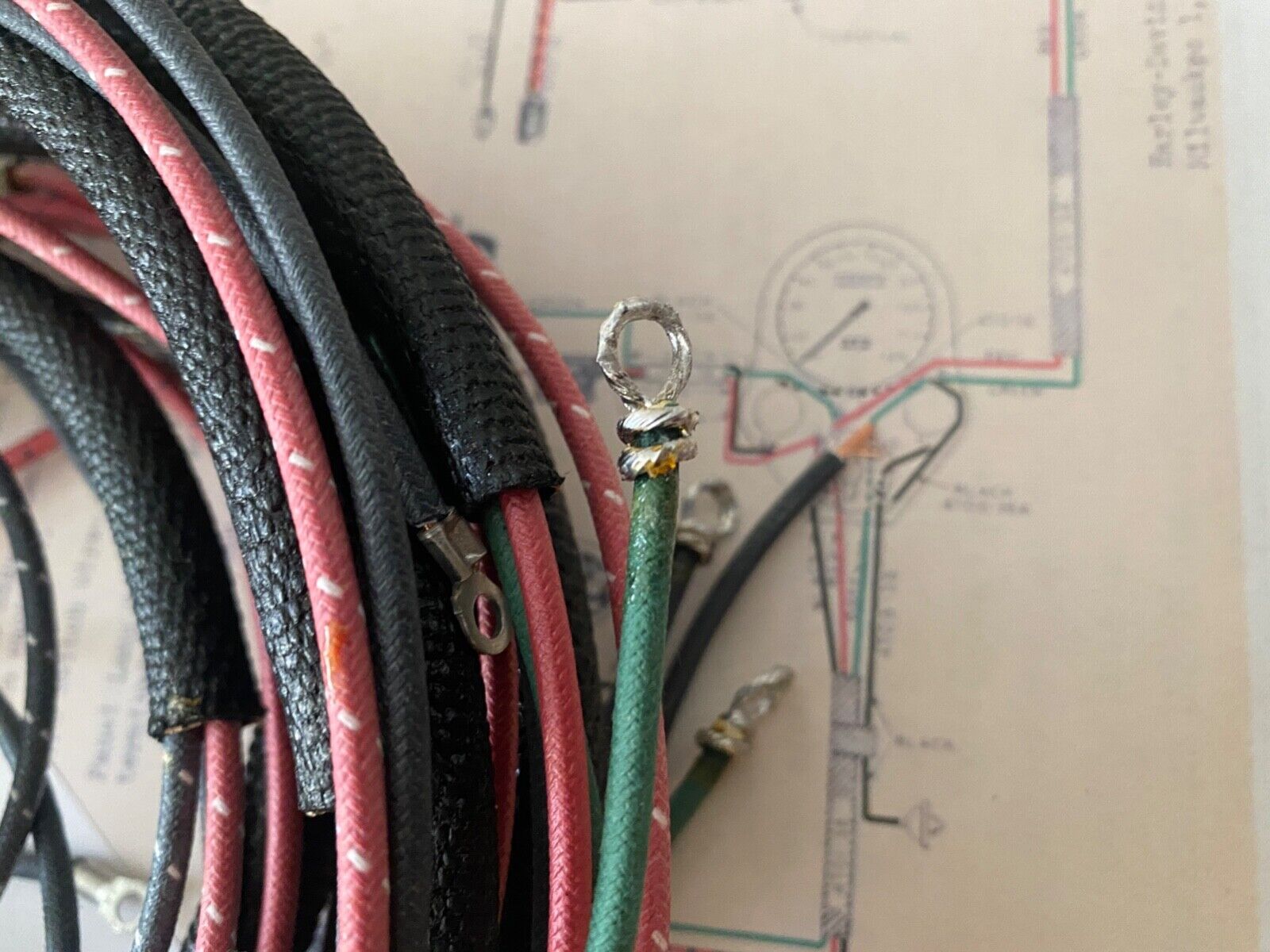

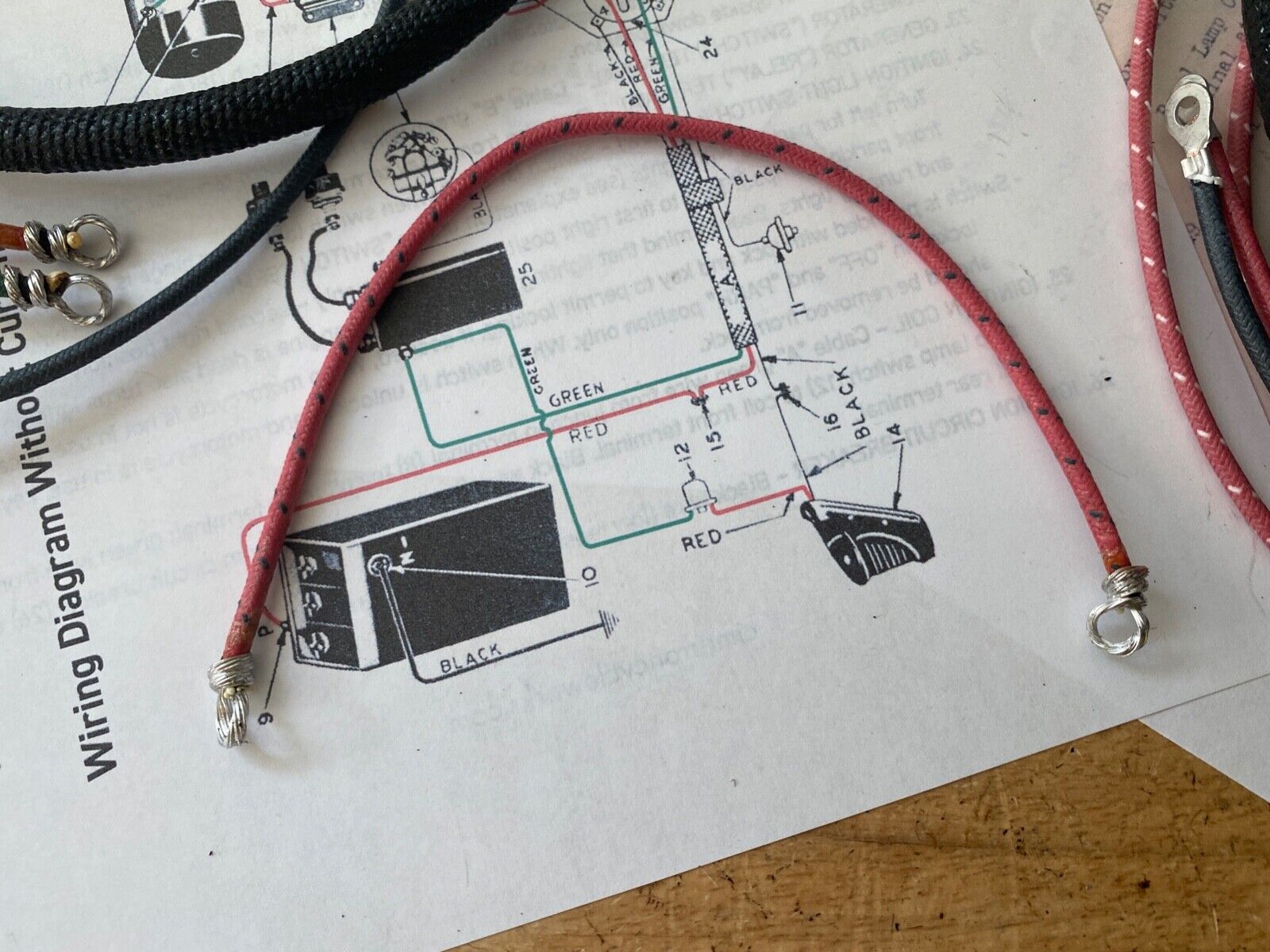

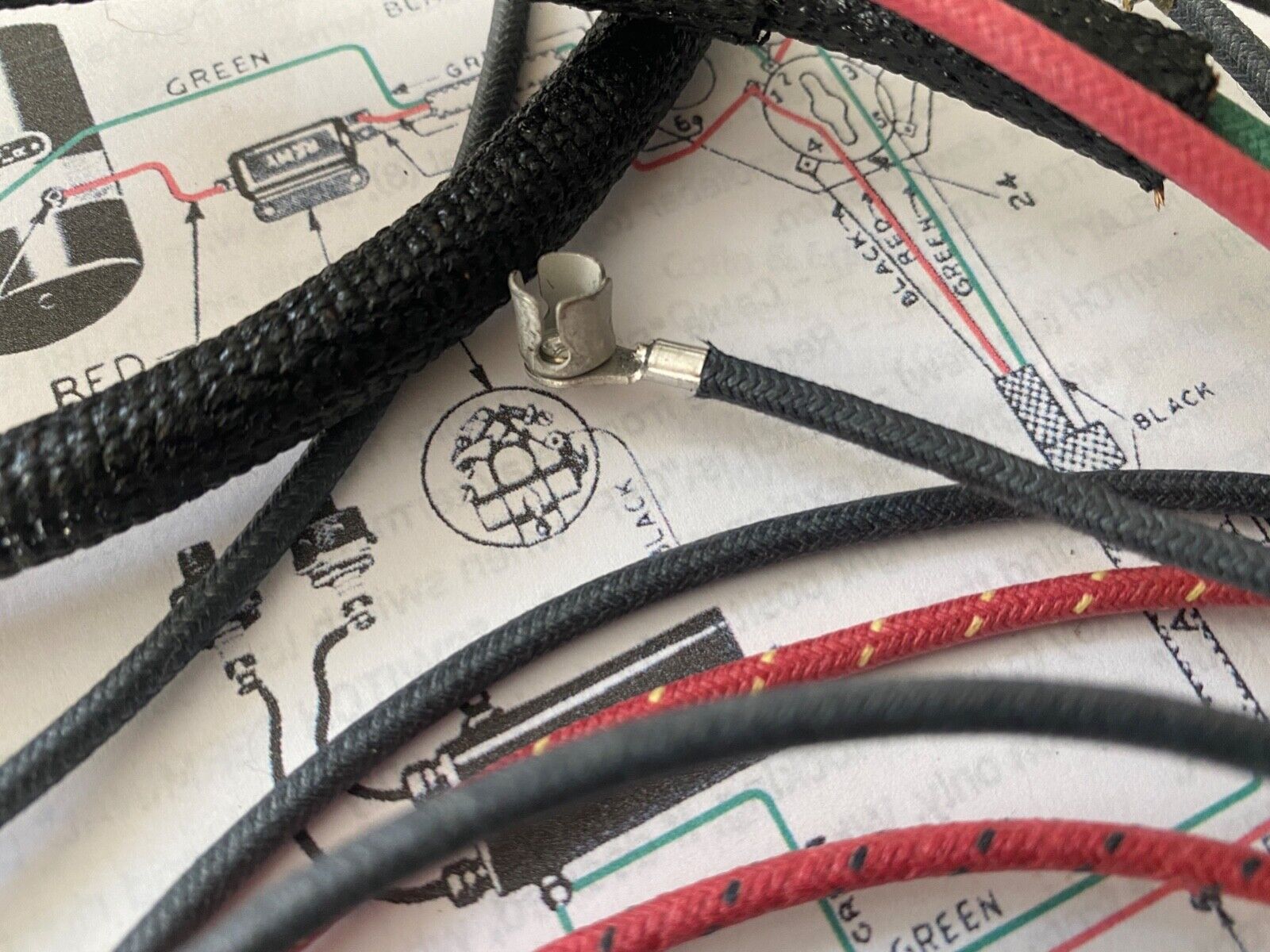

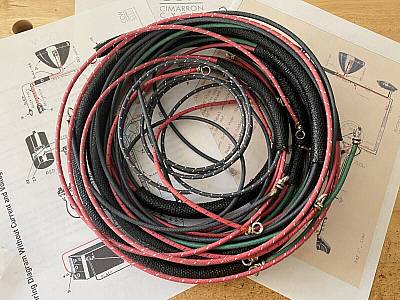

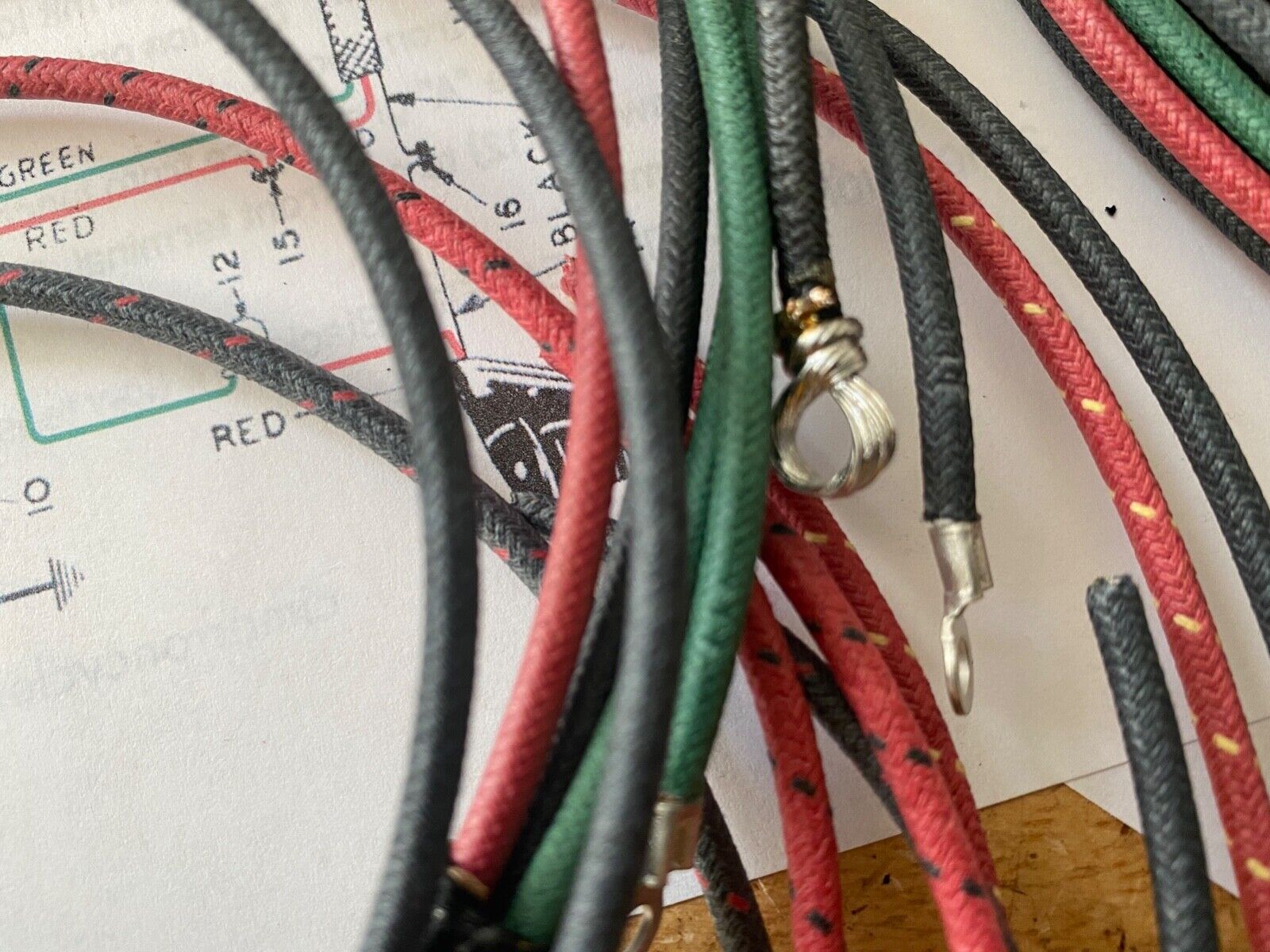

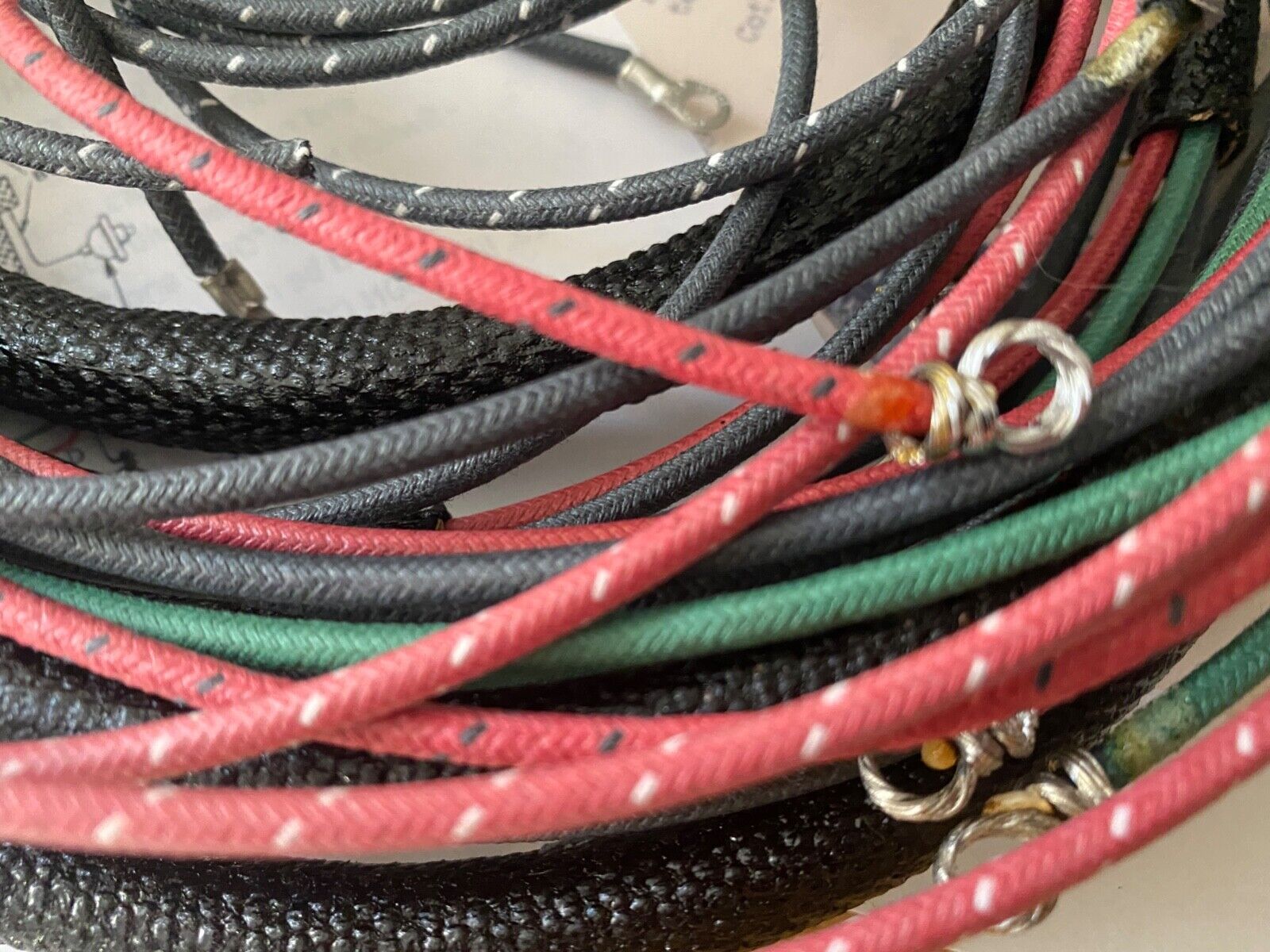

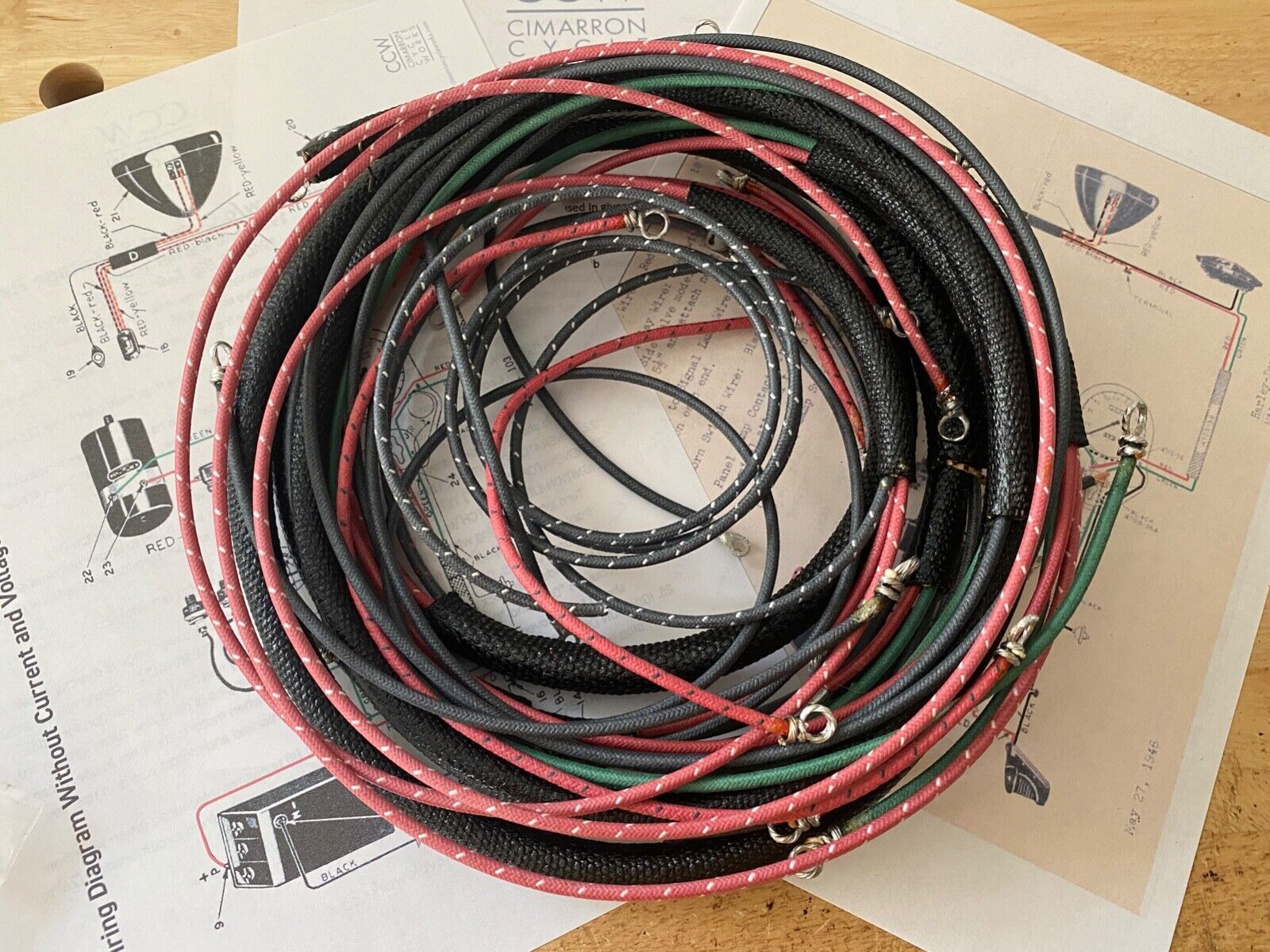

You are purchasing one new USA Made wiring harness kit for 1938 Harley-Davidson big twin flathead U models.  This is our "premium" kit.  It has correct stripped and tinned wire  terminals which are correctly twisted and sweated for all terminals except the under dash terminals, where H-D used ring terminals originally.  This also utilizes an NOS oil pressure switch cup terminal which was unique to HD (Photo 6).

Our wire kits are made by hand with care, one at a time, in our shop located in beautiful Cimarron, New Mexico, USA.

If you need a kit for a 1938 Knucklehead or WL we have those available on other listings.

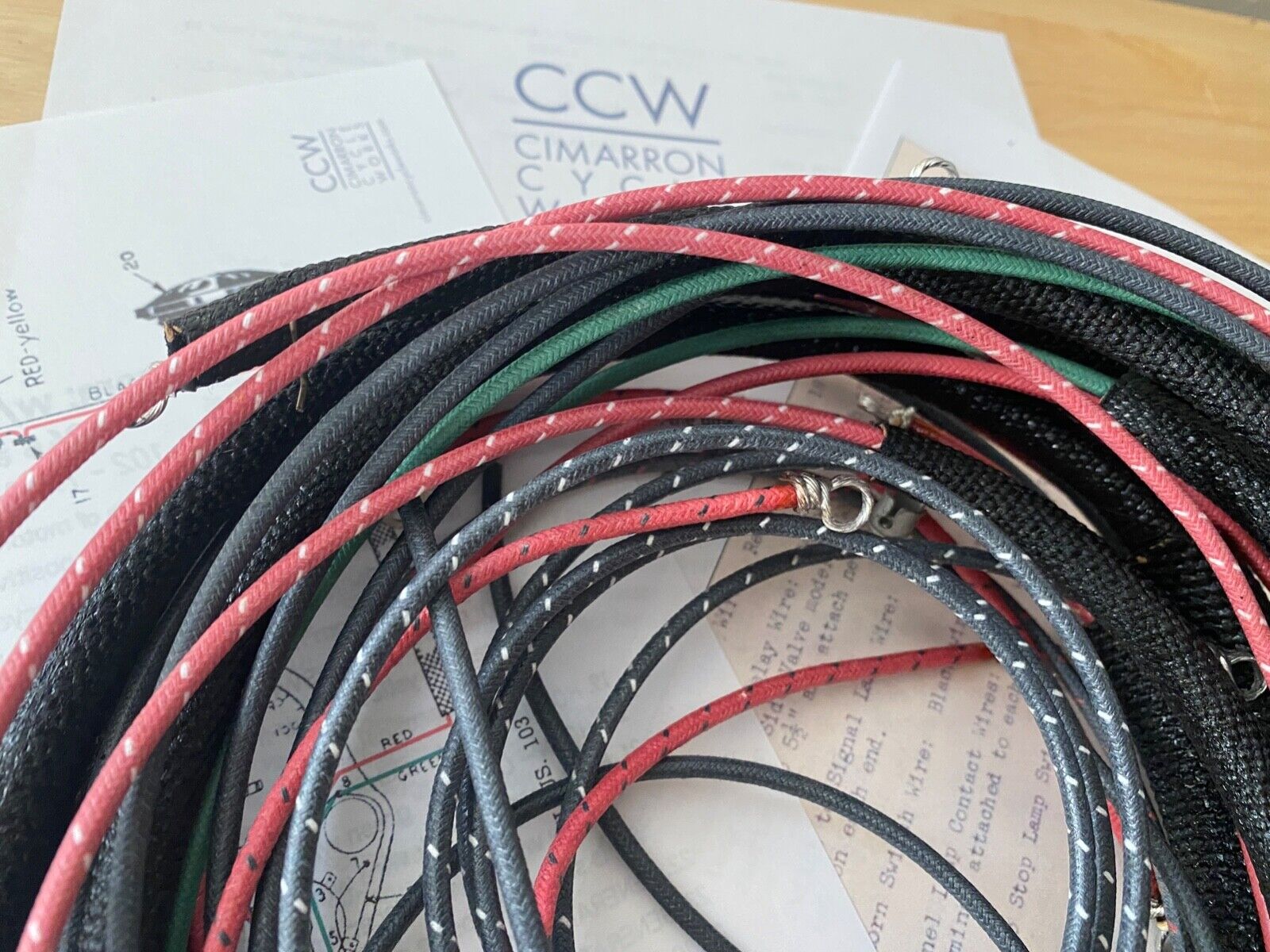

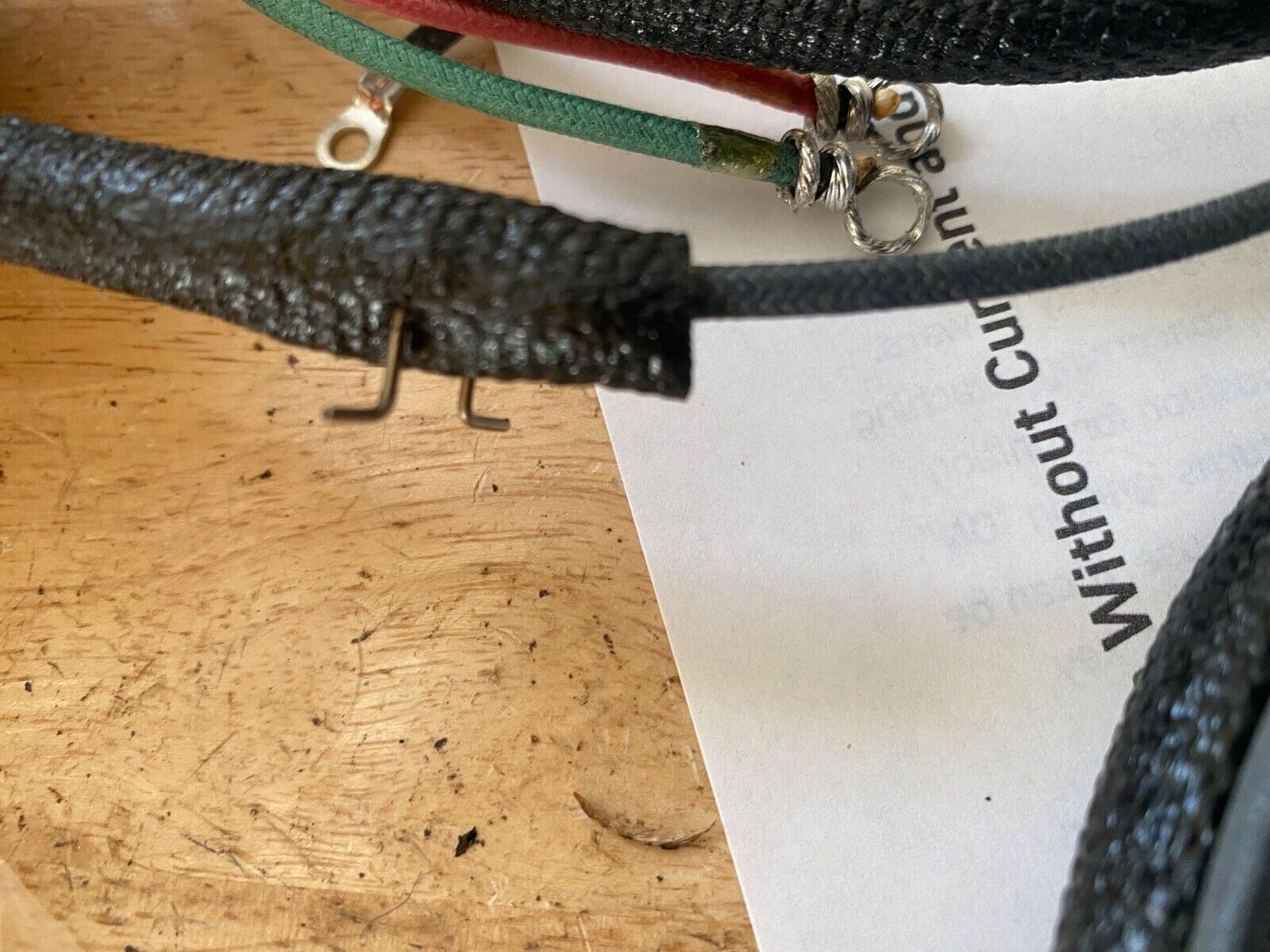

The harness is encased in asphalt loom material, wires are single traced or non-traced as original.  Wire colors are accurate as are the wire terminal ends.  Handlebar dimmer and horn wires have ends already tinned, you will fish the wires through the bar from the bottom.  You will find it easier without your timer cable installed.  You will have to solder the bar wires into your dimmer and horn switches.  Other than the fender lamp contact button terminal, this will require no more soldering.  We do happen to sell complete wire clip kits for OHV and side valve models in our store.

The kit does come with wires for models equipped with stop lamp switches.

This harness is for the discerning restorer, please look at the photos carefully.  Harnesses with predominantly stripped, coiled, and tinned terminals are correct from 1936-1938.  The harness can be used on 1939-1946 models, but would not be "detail-correct" as flag terminals were used from 1939 onward.
If you can't find what you need here for your vintage 1915-1984 model HD model or cimarroncycleworks, just email and ask.We also sell a complete kit for 1936-1937, 1938-1946, 1948, 1949-1953, 1954-1957, 1958-1959 Duo-Glide, K & Sportster models, Hummer Knucklehead, WL, Servicar, VL, JD, RL, single & DL.

We do have an economy model harness for 1938-1946 models with later style crimp terminals on another listing for about $50 less.

We also sell dimmer and horn switches, as well as complete wiring clip kits to finish out your installation.  We will be adding kits complete with the clips in the near future.  If you don't see them, just ask. Located at and ships from Cimarron Cycle Works, LLC in beautiful Cimarron New Mexico, USA!

Used on the following:
  • 1938 UL, UH, ULH 74" & 80" big twin flathead
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.  A note on shipping:If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
