Harley VL RL DL G Single Lower Motor Mount Kit Engine 1926-1936 Plain Head
- Product Code: 352209121161
- Availability: Out Of Stock
-
$43.95

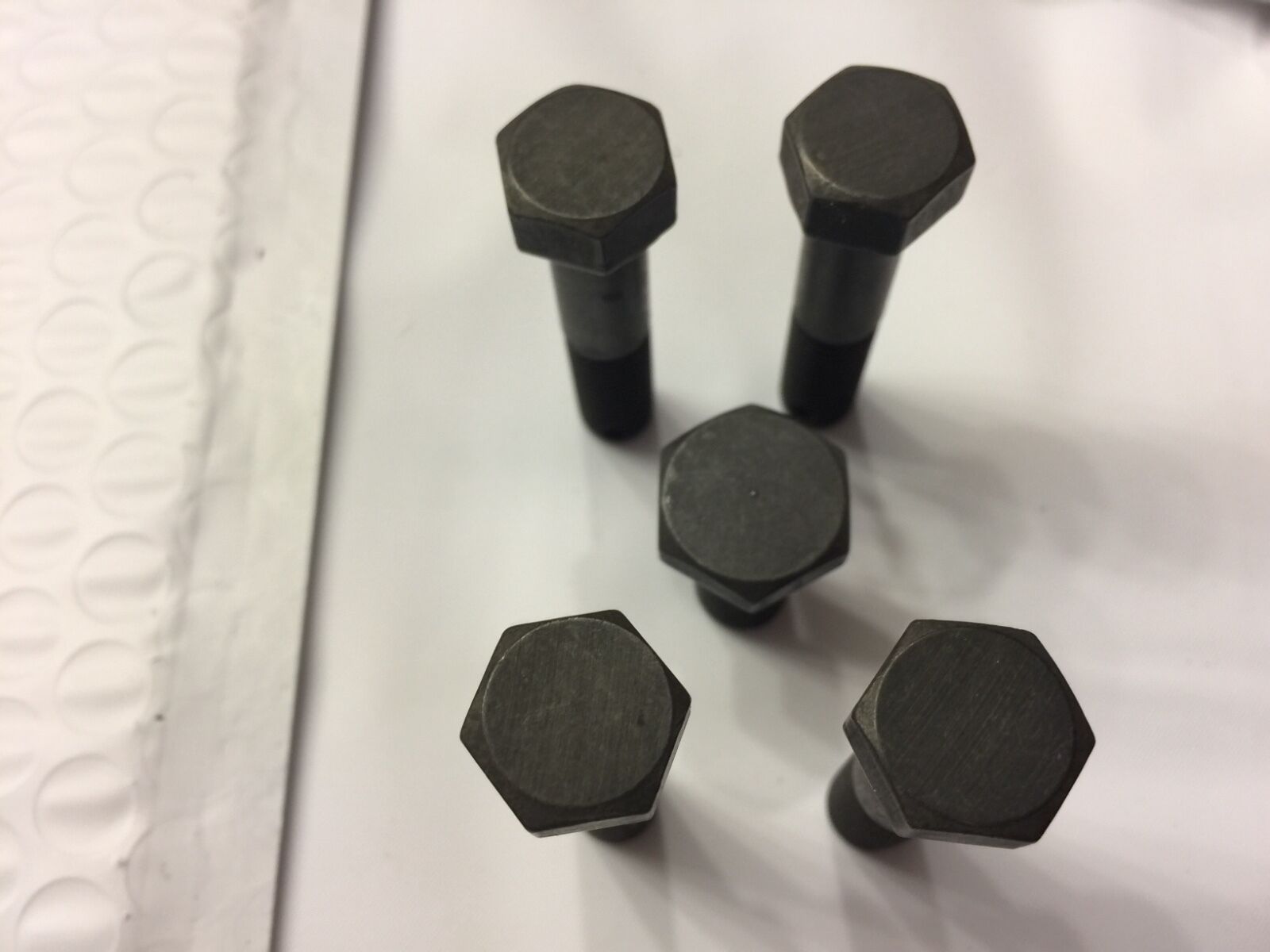

You are purchasing a plain head lower motor mount kit for 1930-1936 VL big twin flathead models. The bottom mount bolts, according to information I have, suggests these are also used on 1926 to 1934 A, B, & C single models as well as 1929-1936 RL, DL, and Servicar models. They will also fit 1937-1973 45" solo and Servicar. These are parkerized and have a plain machined head which makes them "correct" for roughly 1942 and earlier as H-D started using CP-1035 stamped bolts from Chandler Products during WWII. The parkerized finish would be "correct" up through the end of Servicar production in 1973, I believe.
I have these available as complete bottom and top mount kits in plain head or CP-1035 or just the top mount kit if that is all you need. Please see the "Vintage Hardware Pre-1980" section of my eBay store for different motor mount options as well as other CP-1038 and CP-1035 hardware kits. I also have motor mount kits for U, UL, ULH and big twin from 1936 to 1979.
There seems to be some misinformation on CP bolts and "reproductions". Chandler Products has always been willing to produce these bolts with large minimum quantity orders. There's either early production or current production. They changed head dies as they wore out and had multiple dies. Top mount bolt and all nuts are USA made using the same process Harley used when they operated their own screw and nut equipment with the flat lands on them. Spacers and washers are produced just like the ones H-D did back in the day. Parkerizing is same finish as how these came from the factory in the 1950's. I've also got other hardware kits listed in my store under "pre 1980's hardware" including a CP-1038 gas tank and oil tank mounting kit which would go great with this.
Used on the following for certain:
- 1937 to 1952 45" W, WL, WLA, WLC, WLD, WR, WLDR side valve or flathead ("correct" for pre-WWII models)
- 1932 to 1973 45" G, GE, Servicar ("correct" for pre-WWII models)
- 1929-1936 45" solo DL, RL (please double-check your reference material to make sure these will fit 1929)
- 1930-1936 74" & 80" big twin flathead VL, VLD, VLH

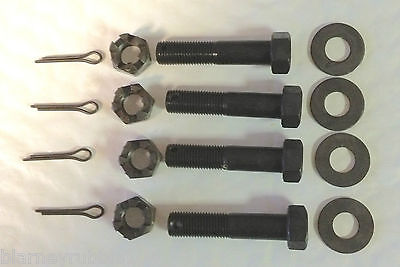

Includes the following parts by OEM part number:
- 437-26, bolt with drilled tip for cotter key (qty 4)
- 0128, 3/8-24 castellated hex head nut (qty 4)
- 528, cotter key (qty 4)
- 0224, flat washer (qty 4)
