Harley WL Servi Fuel Gas Rod Valve Kit 1940-49 OEM# 3633-40 Chrome & Cad EURO
- Product Code: 292506523286
- Availability: Out Of Stock
-
$69.95
You are purchasing one European-made fuel tank shut off rod and seat valve assembly for Harley-Davidson 1940 to 1949 W, WL, WLA, WLC, WLD and G Servicar 45" flathead models. The finish on this particular kit has a chrome knob and cad plated top seal cap with a cad lower seat. This would be considered correct for civilian models produced from 1940-1949 except during the WW-II era when a parkerized finish would have been correct even on civilian models. We also stock this particular style with a parkerized knob and seal cap as well as a Knucklehead and UL style and 1950-1958 style for WL & Servicar and 1950-65 for Panheads in our store. We do stock the popular chrome accessory extension knob.

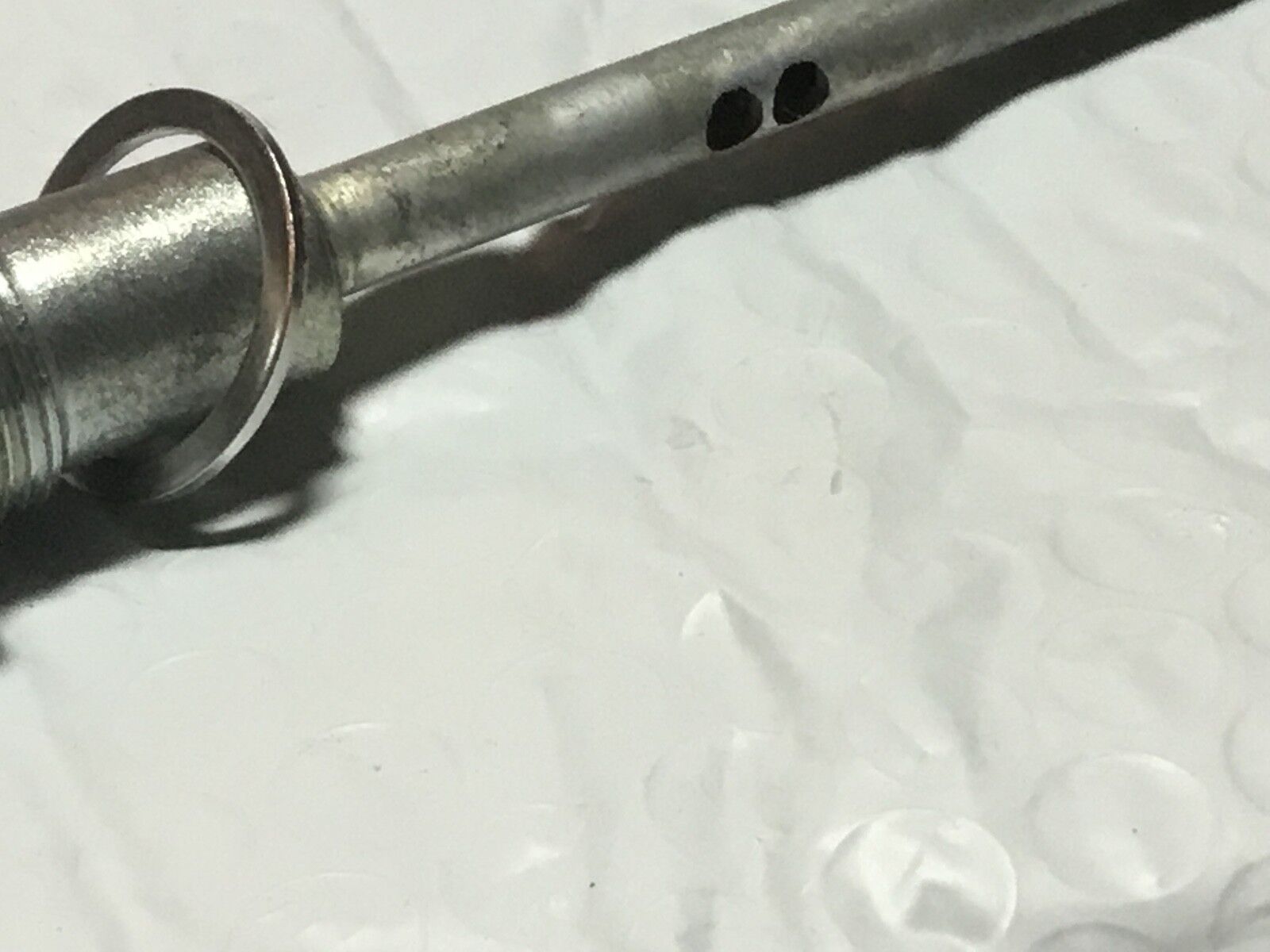

Do note that this has the accurate lower fuel requirement for reserve on the rod which is the 3633-40 rod.

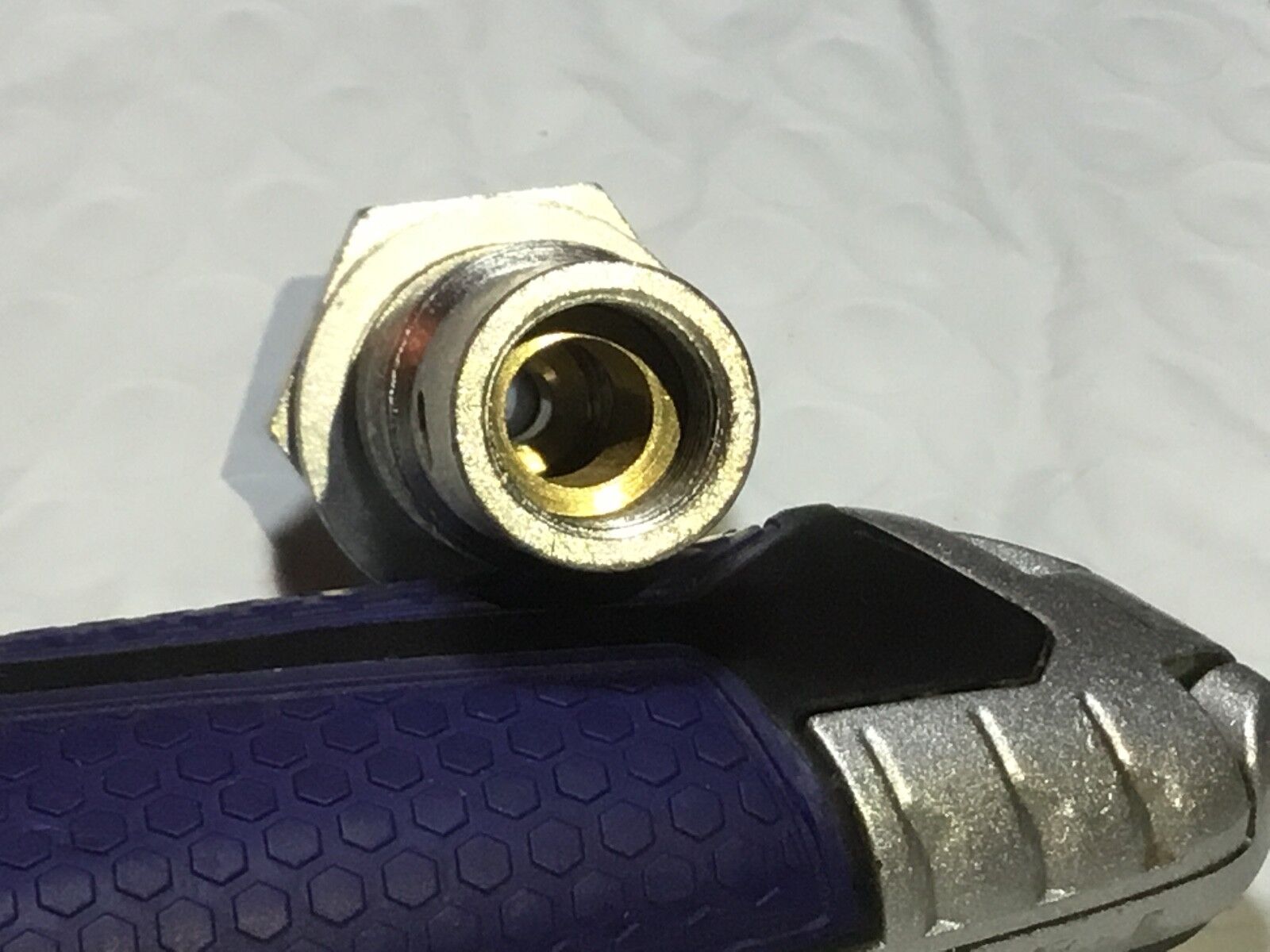

These are a really nice reproduction and are far superior to the Asian reproductions. You can spot the Asian ones as they are being sold with raw brass knobs. The knobs on all our fuel rod kits are either chrome or parkerized and the seats are cadmium plated, not zinc. These valves have a brass seat pressed into them for a better seal and longer life.
We also have every fuel line, oil line, petcock, and strainer from 1916 to 1973 on other listings in our store. We can put together a package which includes both fuel lines as well as the strainer, just let us know if you don't see it in our store or cimarroncycleworks.
Part is located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!

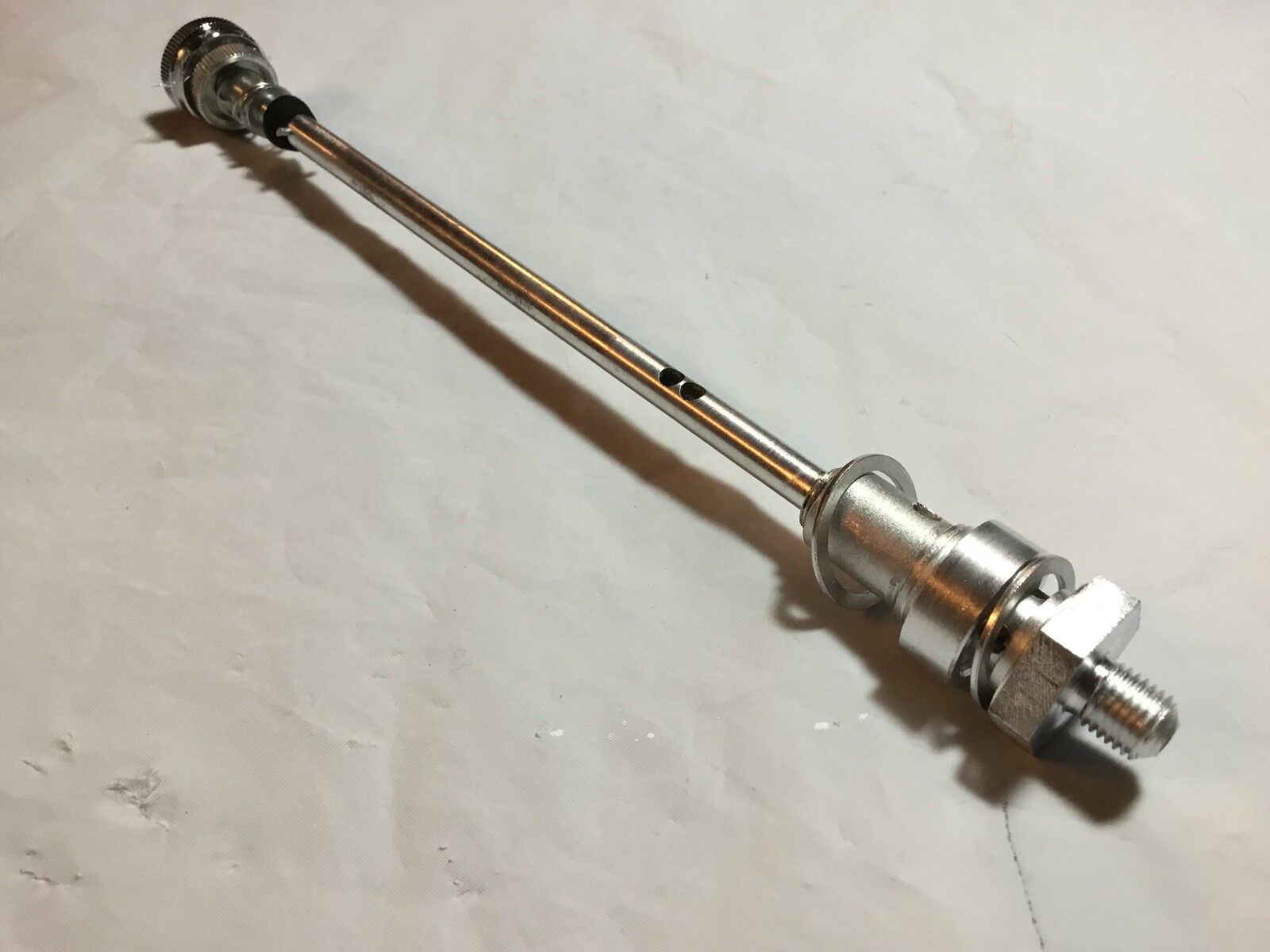

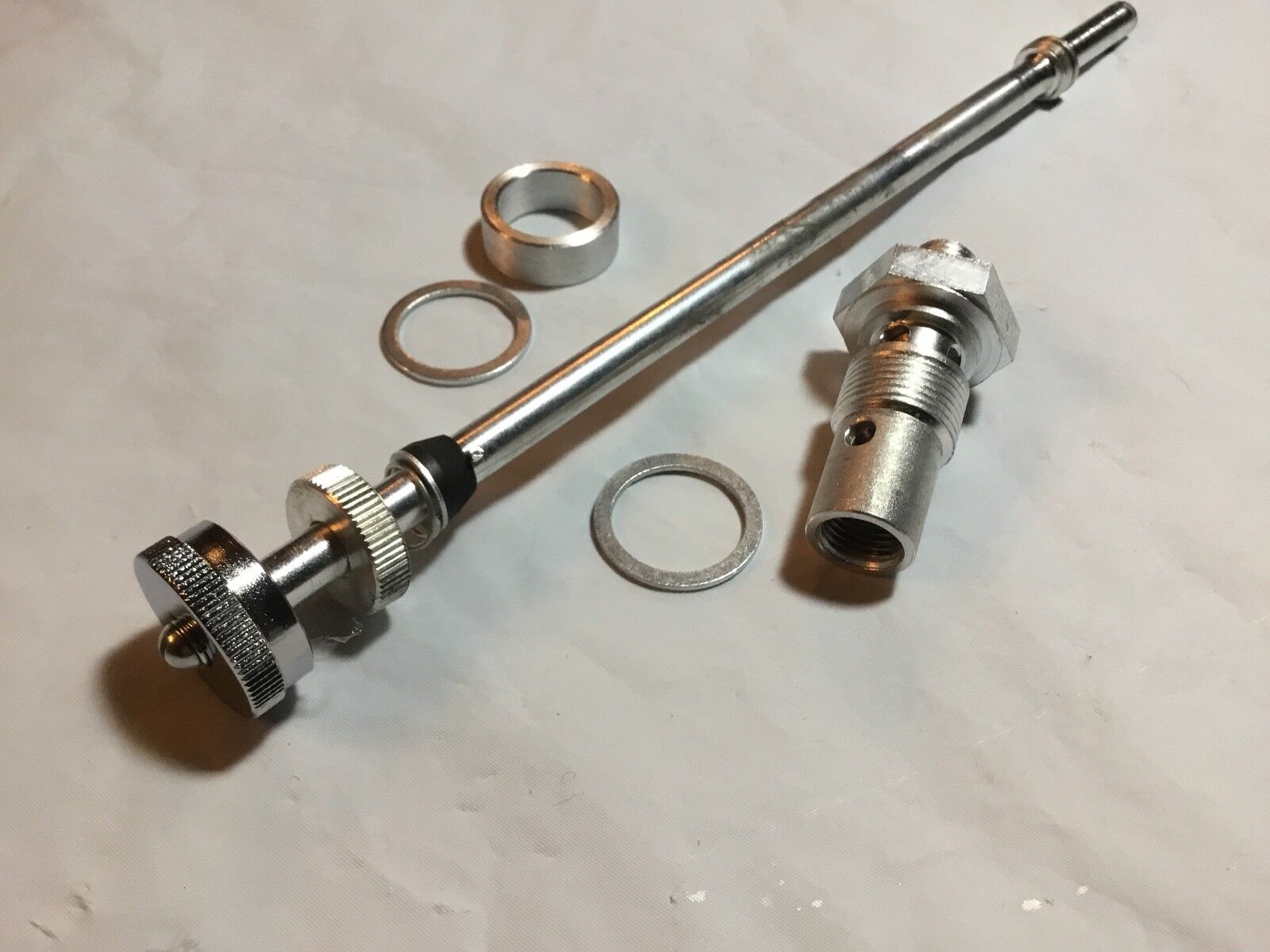

This is a complete assembly which even includes the lower seal washers:
- 3633-40 fuel rod
- 3634-40 shut off upper seal
- 3635-40 rod washer
- 4764-26 spring
- 3636-40 seal cap
- 3637-40 operating knob
- 018 operating knob screw
- 3638-40 shut off rod seat washers x 2
- 3639-40 shut off seat
- 3640-40 shut off rod spacer
Used on the following models:
- 1940-1949 W, WL, WLD, and Servicar models. Will work on WLA and WLC but finish is not detail correct.
